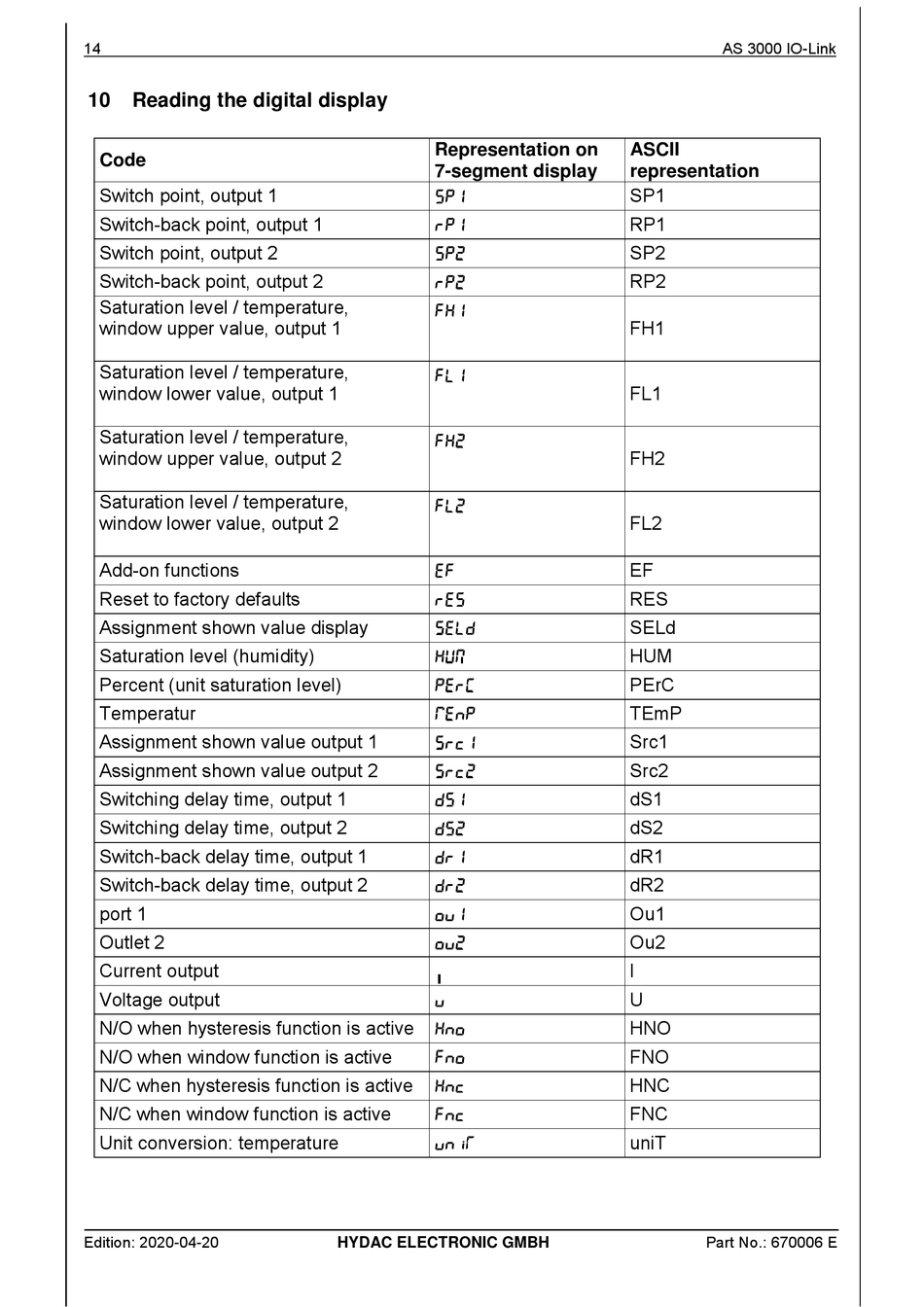

Reading the digital display

Code
Switch point, output 1
Switch-back point, output 1
Switch point, output 2
Switch-back point, output 2
Saturation level / temperature,
window upper value, output 1
Saturation level / temperature,
window lower value, output 1
Saturation level / temperature,
window upper value, output 2
Saturation level / temperature,
window lower value, output 2
Add-on functions
Reset to factory defaults
Assignment shown value display
Saturation level (humidity)
Percent (unit saturation level)
Temperatur
Assignment shown value output 1
Assignment shown value output 2
Switching delay time, output 1
Switching delay time, output 2
Switch-back delay time, output 1
Switch-back delay time, output 2
port 1
Outlet 2
Current output
Voltage output
N/O when hysteresis function is active
N/O when window function is active
N/C when hysteresis function is active
N/C when window function is active
Unit conversion: temperature
Edition: 2020-04-20
Representation on
7-segment display
sp1
rp1
sp2
rp2
fk1
fl1
fk2
fl2
ef
res
Seld
XUM
PErE
MEnP
Src1
Src2
ds1
ds2
dr1
dr2
ov1
ov2
v
kno
fno
knc
fnc
vniF
