Error Messages

If an error is detected, a corresponding error message appears which must be
acknowledged by pressing any key.
Possible error messages are as follows:
A data error has been detected in the saved settings. Possible causes are strong
E.10
electromagnetic interference or a defective component.
Press "mode" and confirm "RES" by pressing "Yes". The factory settings will be
Action:
restored for all adjustable parameters and all minimum and maximum values will
be deleted.
Enter the data again from the beginning.
An error was detected in the saved calibration data. Possible causes are strong
E.12
electromagnetic interference or a defective component.
Disconnect then reconnect the supply voltage to the instrument. If the error
Action:
persists, the instrument must be returned to the factory for recalibration or repair.
A communication error within the unit has been detected. Possible causes are
E.21
strong electromagnetic interference or a defective component.
Press "mode". If the error persists, disconnect then reconnect the supply voltage
Action:
to the instrument. If the error still persists, please contact our service department.
17

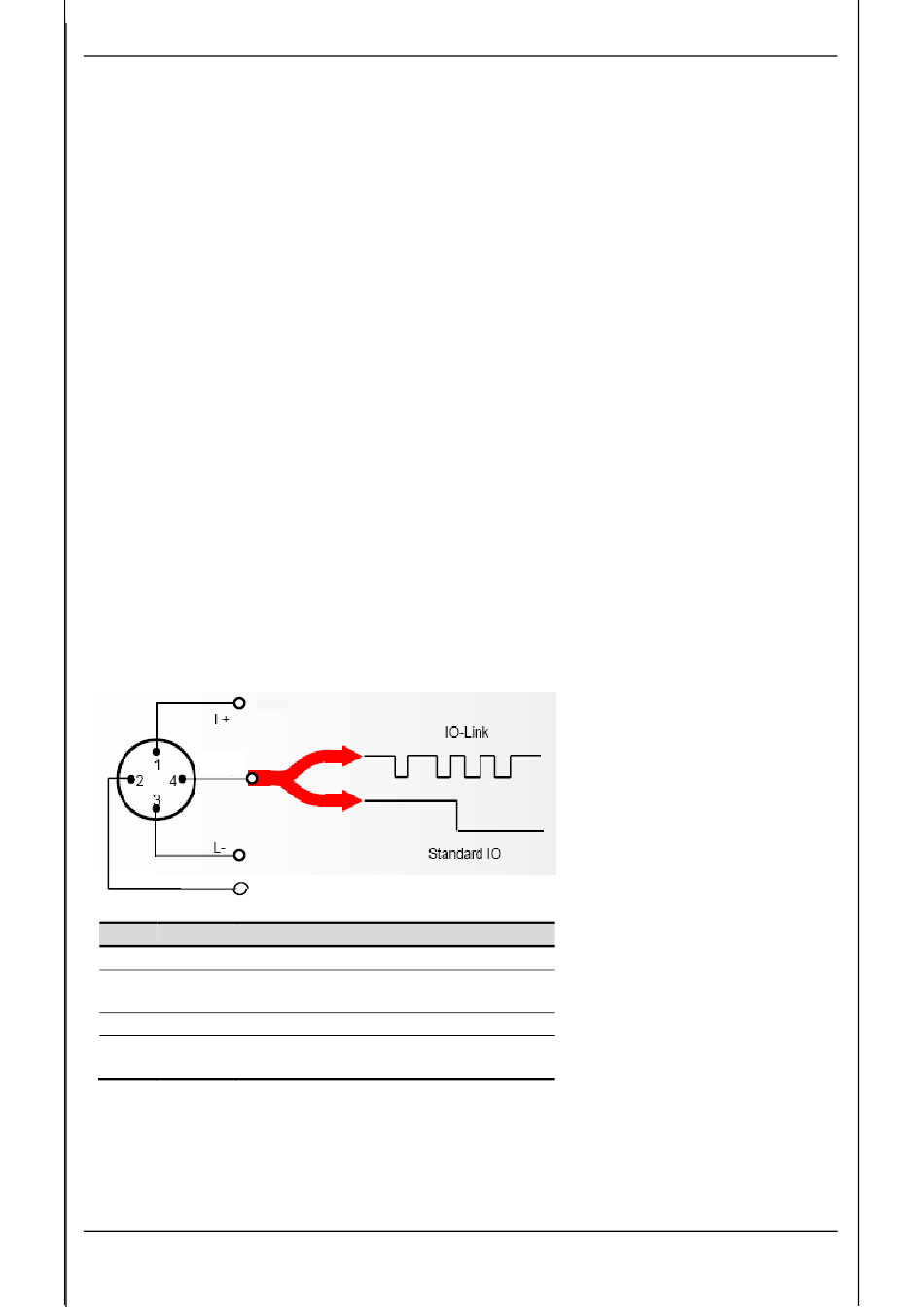

PIN connection

M12x1, 4-pin
Q1/C
Q2/QA
Pin
Signal
Code
1
L+
+U
2
Q2/QA
Switching output (SP2) /
analogue output
3
L-
0V
4
Q1/C
Switching output (SP1) /
IO-Link Communication
Edition: 2020-04-20
B
HYDAC ELECTRONIC GMBH
23
Part No.: 670006 E
