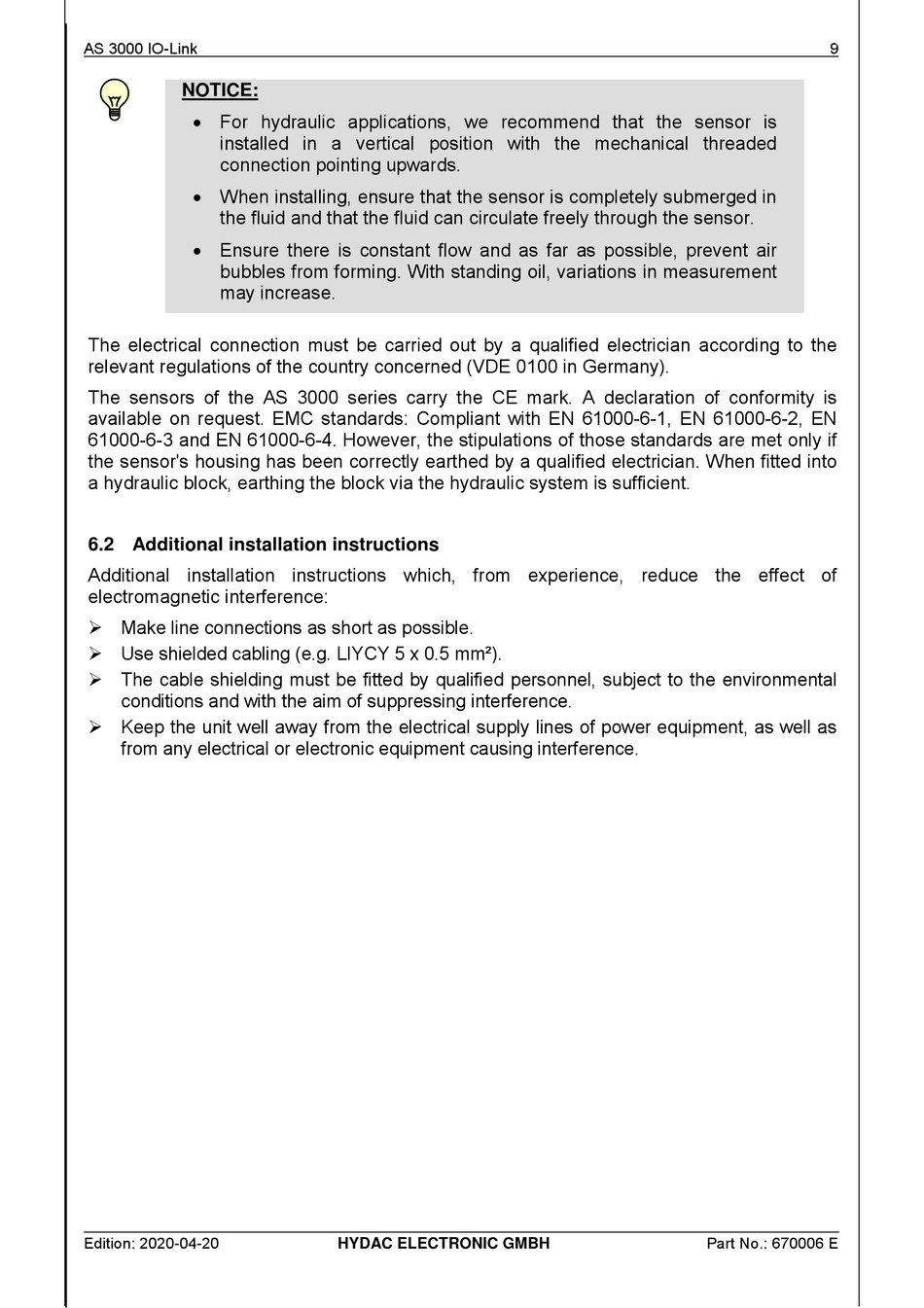

AS 3000 IO-Link
NOTICE:
• For hydraulic applications, we recommend that the sensor is
installed in a vertical position with the mechanical threaded
connection pointing upwards.
• When installing, ensure that the sensor is completely submerged in
the fluid and that the fluid can circulate freely through the sensor.
• Ensure there is constant flow and as far as possible, prevent air
bubbles from forming. With standing oil, variations in measurement
may increase.
The electrical connection must be carried out by a qualified electrician according to the
relevant regulations of the country concerned (VDE 0100 in Germany).
The sensors of the AS 3000 series carry the CE mark. A declaration of conformity is
available on request. EMC standards: Compliant with EN 61000-6-1, EN 61000-6-2, EN
61000-6-3 and EN 61000-6-4. However, the stipulations of those standards are met only if
the sensor's housing has been correctly earthed by a qualified electrician. When fitted into
a hydraulic block, earthing the block via the hydraulic system is sufficient.

6.2 Additional installation instructions

Additional installation instructions which, from experience, reduce the effect of
electromagnetic interference:
 Make line connections as short as possible.
 Use shielded cabling (e.g. LIYCY 5 x 0.5 mm²).
 The cable shielding must be fitted by qualified personnel, subject to the environmental
conditions and with the aim of suppressing interference.
 Keep the unit well away from the electrical supply lines of power equipment, as well as
from any electrical or electronic equipment causing interference.
Edition: 2020-04-20
HYDAC ELECTRONIC GMBH
9
Part No.: 670006 E
