AS 3000 IO-Link
The particular output is switched when the level or temperature enters this range. When the
level leaves this range, i.e. when the switch-back point has been exceeded or fallen below,
the output switches back.
The lower switch-back value is just below the lower switch value. The upper switch-back
value is just above the upper switch value. The range between the switch value and the
switch-back value forms a safety margin which prevents unwanted switching operations
from being triggered.

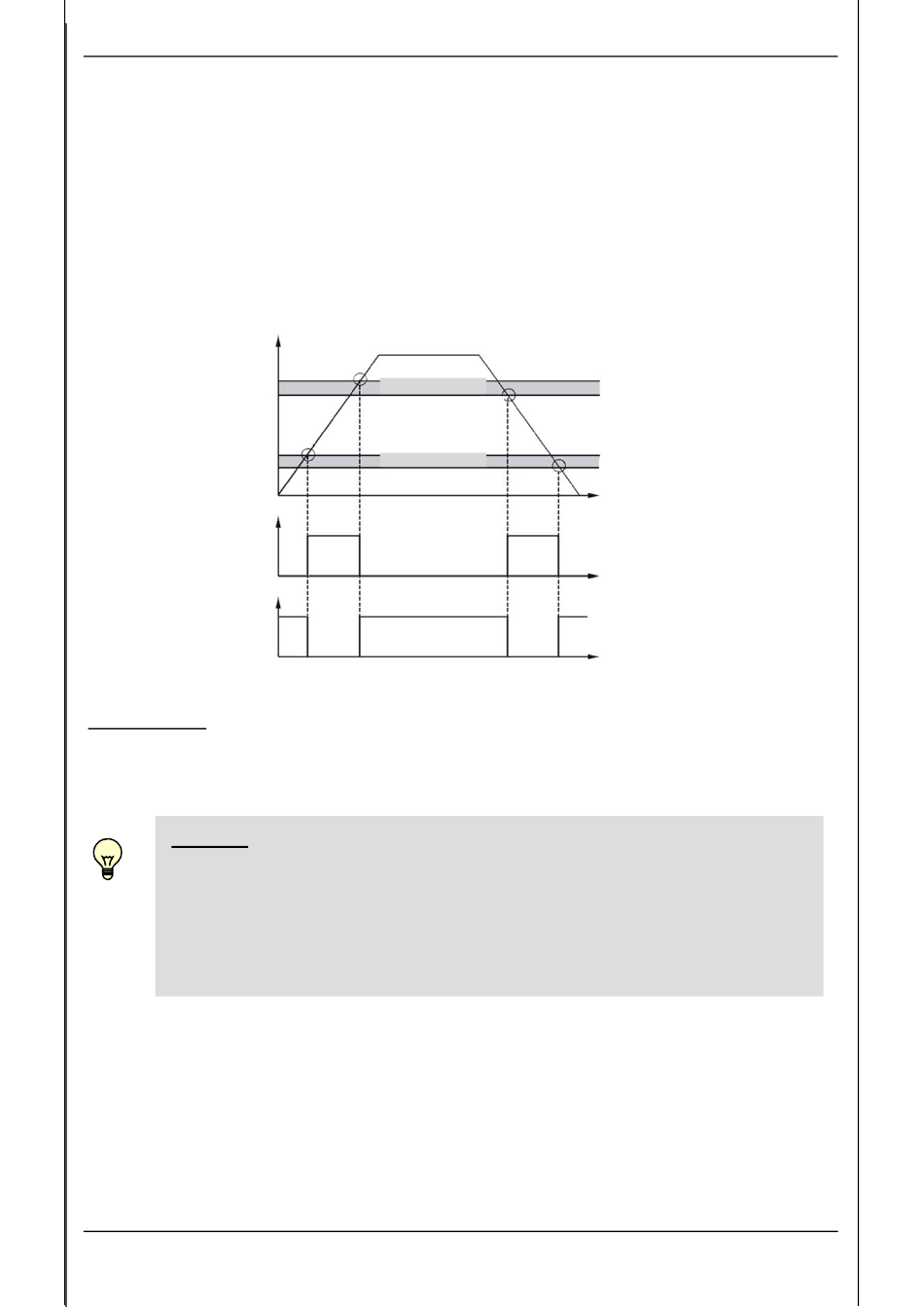

Example for switching output 1 (N/C and N/O function):
Measured
value
FH1 plus 0.4%FS
FH1 FH1
FL1 FL1
FL1 minus 0.4%FS
FNO FNO
Ein Ein On
Schlie ß erfunktion Schlie ß erfunktion
Normally open function
Aus Aus Off
FNC FNC
Ein Ein
On
Ö ffnerfunktion Ö ffnerfunktion
Normally closed function
Aus Aus
Off
Abbreviations: "FH1", "FH2"
"FL1", "FL2"
"FNO"
"FNC"
NOTICE:
•
Setting the upper switch value (FH) is only possible if it lies above the lower
switch value (FL).
•
The window function only works properly (switching on and off) if all switch
values (including the safety margin) are greater than 0 cm + offset value and
below the upper measuring range limit + offset value.
Edition: 2020-04-20
P P
Off
Aus Aus
Safety zone
Sicherheitszone Sicherheitszone
On
Ein Ein
Safety zone Sicherheitszone Sicherheitszone
= upper switch value 1 / upper switch value 2
= lower switch value 1 / lower switch value 2
= N/O when window function is active
= N/C when window function is active
HYDAC ELECTRONIC GMBH
Reverse switch point
R ü ckschaltwert R ü ckschaltwert
Switch point
Schaltwert Schaltwert
On
Ein Ein
Switch point
Schaltwert Schaltwert
Switch reverse point R ü ckschaltwert R ü ckschaltwert
Off Aus Aus
t t
17
Part No.: 670006 E
