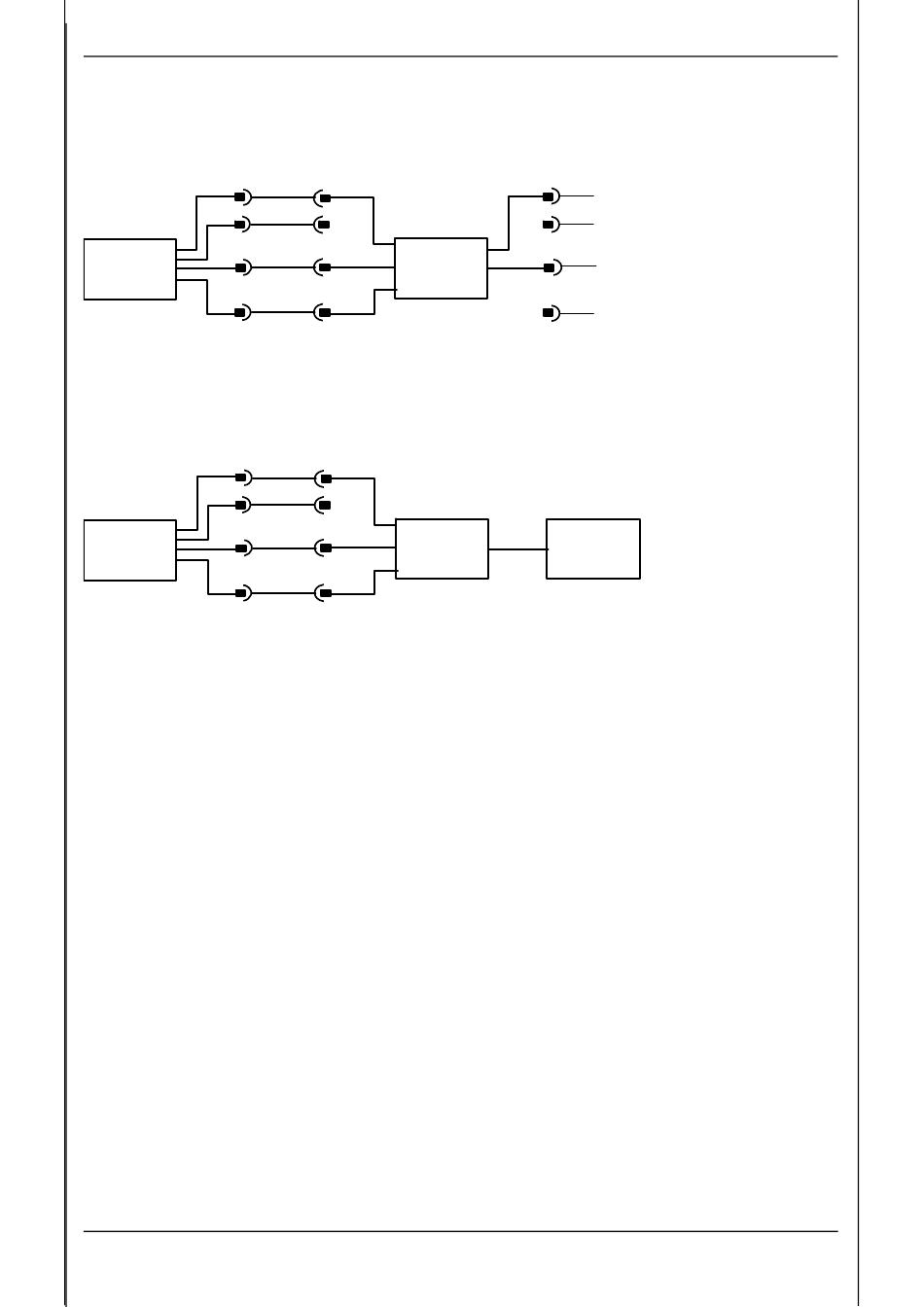

9.2 Parameterisation with HYDAC programming device HPG P1-000

(Connection via standard cable)
1
2
3
Device
4
9.3 Parameterisation by means of HYDAC programming adapter ZBE P1-000
(Connection via standard cable)
1
2
3
Device
Q1 / C
4
9.4

Parameterisation by means of the IO-Link Master

The AquaSensor can be parameterised via the IO-Link interface by means of any IO-Link
compatible master configuration tool (according IO-specifications V1.1). IO-Link
specifications V1.0 are as well supported.
The configuration parameters of the IODD can be found in chapter 24 Anhang / Annex:
IODD Einstellparameter / IODD Setting Parameters.
