Octet 3
NOTICE:
Direct access via the subindex number is not supported. In the version without a
temperature sensor the octets 1 and 2 represent the fluid level.
Octet 3
bit offset 7
Subindex
element
5
bit
9

Parameterisation

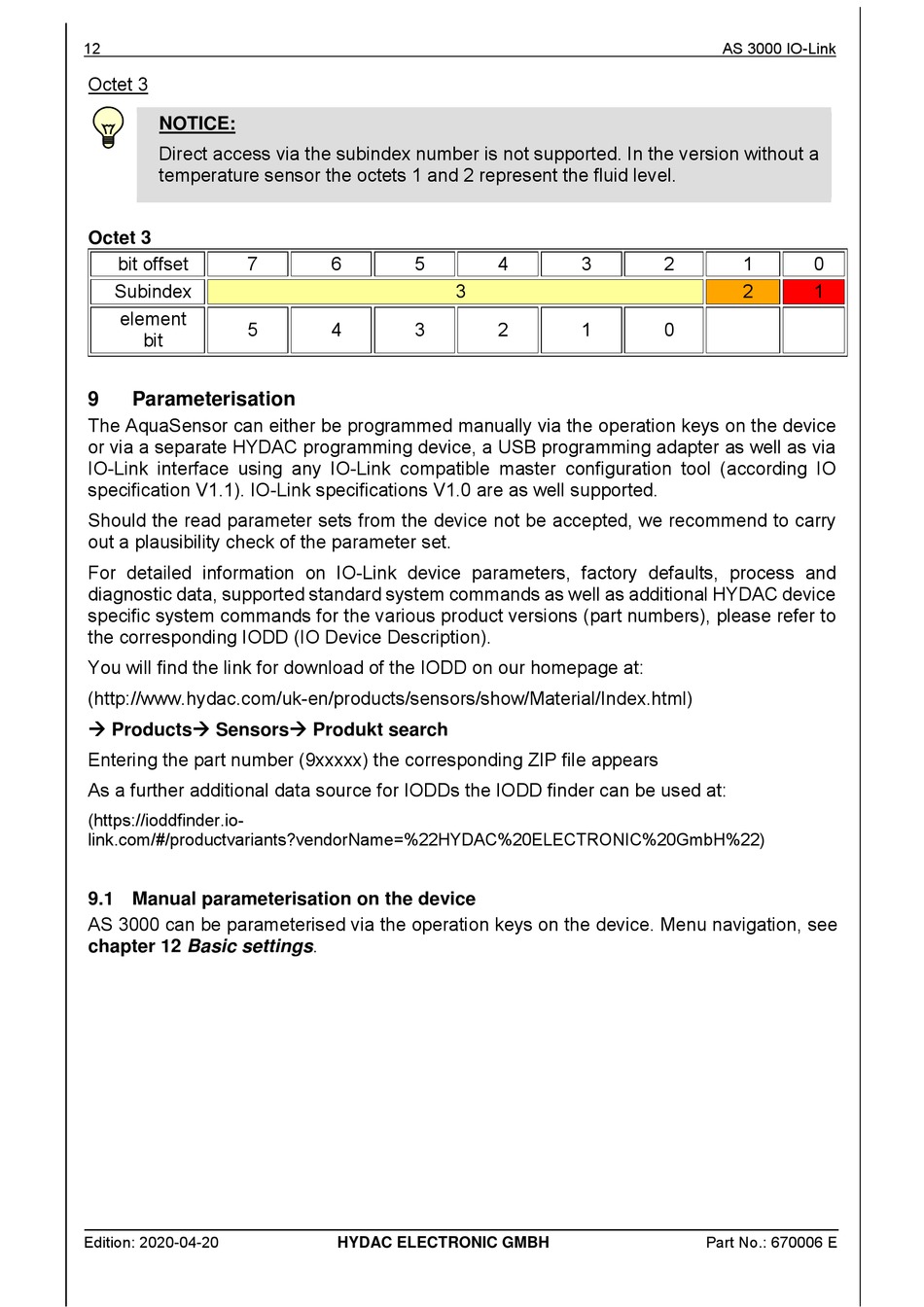

The AquaSensor can either be programmed manually via the operation keys on the device
or via a separate HYDAC programming device, a USB programming adapter as well as via
IO-Link interface using any IO-Link compatible master configuration tool (according IO
specification V1.1). IO-Link specifications V1.0 are as well supported.
Should the read parameter sets from the device not be accepted, we recommend to carry
out a plausibility check of the parameter set.
For detailed information on IO-Link device parameters, factory defaults, process and
diagnostic data, supported standard system commands as well as additional HYDAC device
specific system commands for the various product versions (part numbers), please refer to
the corresponding IODD (IO Device Description).
You will find the link for download of the IODD on our homepage at:
(http://www.hydac.com/uk-en/products/sensors/show/Material/Index.html)
 Products Sensors Produkt search
Entering the part number (9xxxxx) the corresponding ZIP file appears
As a further additional data source for IODDs the IODD finder can be used at:
(https://ioddfinder.io-
link.com/#/productvariants?vendorName=%22HYDAC%20ELECTRONIC%20GmbH%22)

9.1 Manual parameterisation on the device

AS 3000 can be parameterised via the operation keys on the device. Menu navigation, see
chapter 12 Basic settings.
