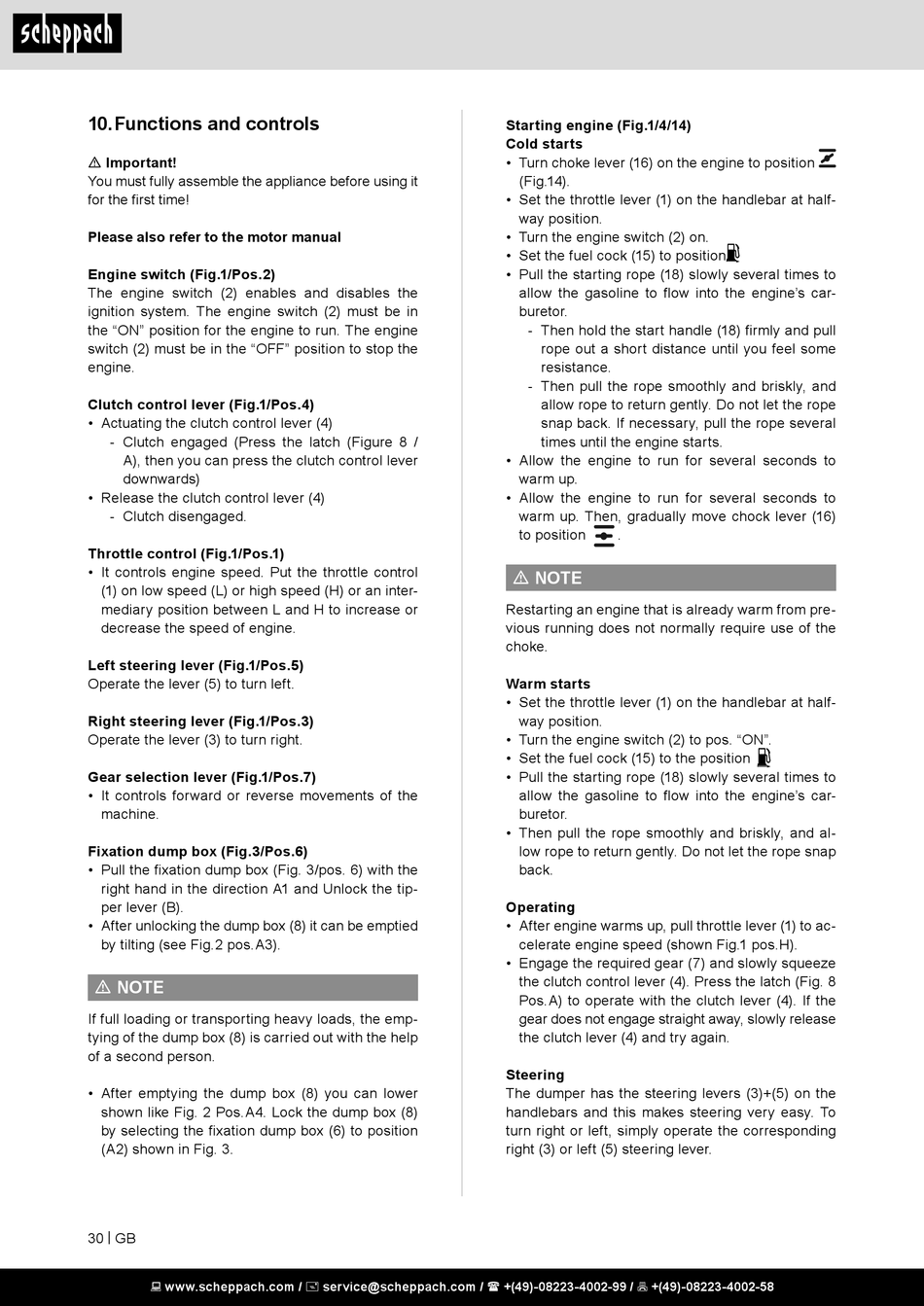

10. Functions and controls

m Important!
You must fully assemble the appliance before using it
for the first time!
Please also refer to the motor manual
Engine switch (Fig.1/Pos.2)
The engine switch (2) enables and disables the
ignition system. The engine switch (2) must be in
the "ON" position for the engine to run. The engine
switch (2) must be in the "OFF" position to stop the
engine.
Clutch control lever (Fig.1/Pos.4)
• Actuating the clutch control lever (4)
- Clutch engaged (Press the latch (Figure 8 /
A), then you can press the clutch control lever
downwards)
• Release the clutch control lever (4)
- Clutch disengaged.
Throttle control (Fig.1/Pos.1)
• It controls engine speed. Put the throttle control
(1) on low speed (L) or high speed (H) or an inter-
mediary position between L and H to increase or
decrease the speed of engine.
Left steering lever (Fig.1/Pos.5)
Operate the lever (5) to turn left.
Right steering lever (Fig.1/Pos.3)
Operate the lever (3) to turn right.
Gear selection lever (Fig.1/Pos.7)
• It controls forward or reverse movements of the
machine.
Fixation dump box (Fig.3/Pos.6)
• Pull the fixation dump box (Fig. 3/pos. 6) with the
right hand in the direction A1 and Unlock the tip-
per lever (B).
• After unlocking the dump box (8) it can be emptied
by tilting (see Fig.2 pos.A3).
m NOTE
If full loading or transporting heavy loads, the emp-
tying of the dump box (8) is carried out with the help
of a second person.
• After emptying the dump box (8) you can lower
shown like Fig. 2 Pos.A4. Lock the dump box (8)
by selecting the fixation dump box (6) to position
(A2) shown in Fig. 3.
30 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Starting engine (Fig.1/4/14)
Cold starts
• Turn choke lever (16) on the engine to position
(Fig.14).
• Set the throttle lever (1) on the handlebar at half-
way position.
• Turn the engine switch (2) on.
• Set the fuel cock (15) to position
• Pull the starting rope (18) slowly several times to
allow the gasoline to flow into the engine's car-
buretor.
- Then hold the start handle (18) firmly and pull
rope out a short distance until you feel some
resistance.
- Then pull the rope smoothly and briskly, and
allow rope to return gently. Do not let the rope
snap back. If necessary, pull the rope several
times until the engine starts.
• Allow the engine to run for several seconds to
warm up.
• Allow the engine to run for several seconds to
warm up. Then, gradually move chock lever (16)
to position .
m NOTE
Restarting an engine that is already warm from pre-
vious running does not normally require use of the
choke.
Warm starts
• Set the throttle lever (1) on the handlebar at half-
way position.
• Turn the engine switch (2) to pos. "ON".
• Set the fuel cock (15) to the position
• Pull the starting rope (18) slowly several times to
allow the gasoline to flow into the engine's car-
buretor.
• Then pull the rope smoothly and briskly, and al-
low rope to return gently. Do not let the rope snap
back.

Operating

• After engine warms up, pull throttle lever (1) to ac-
celerate engine speed (shown Fig.1 pos.H).
• Engage the required gear (7) and slowly squeeze
the clutch control lever (4). Press the latch (Fig. 8
Pos.A) to operate with the clutch lever (4). If the
gear does not engage straight away, slowly release
the clutch lever (4) and try again.
Steering
The dumper has the steering levers (3)+(5) on the
handlebars and this makes steering very easy. To
turn right or left, simply operate the corresponding
right (3) or left (5) steering lever.
