Task 2: Installing the LCD Panel (Optional)

The LCD panel mounts to the left ear of the VessRAID enclosure.
1. Align the connector on the left bracket of the VessRAID enclosure to the
connector on the back of the LCD panel, as shown in Figure 7.

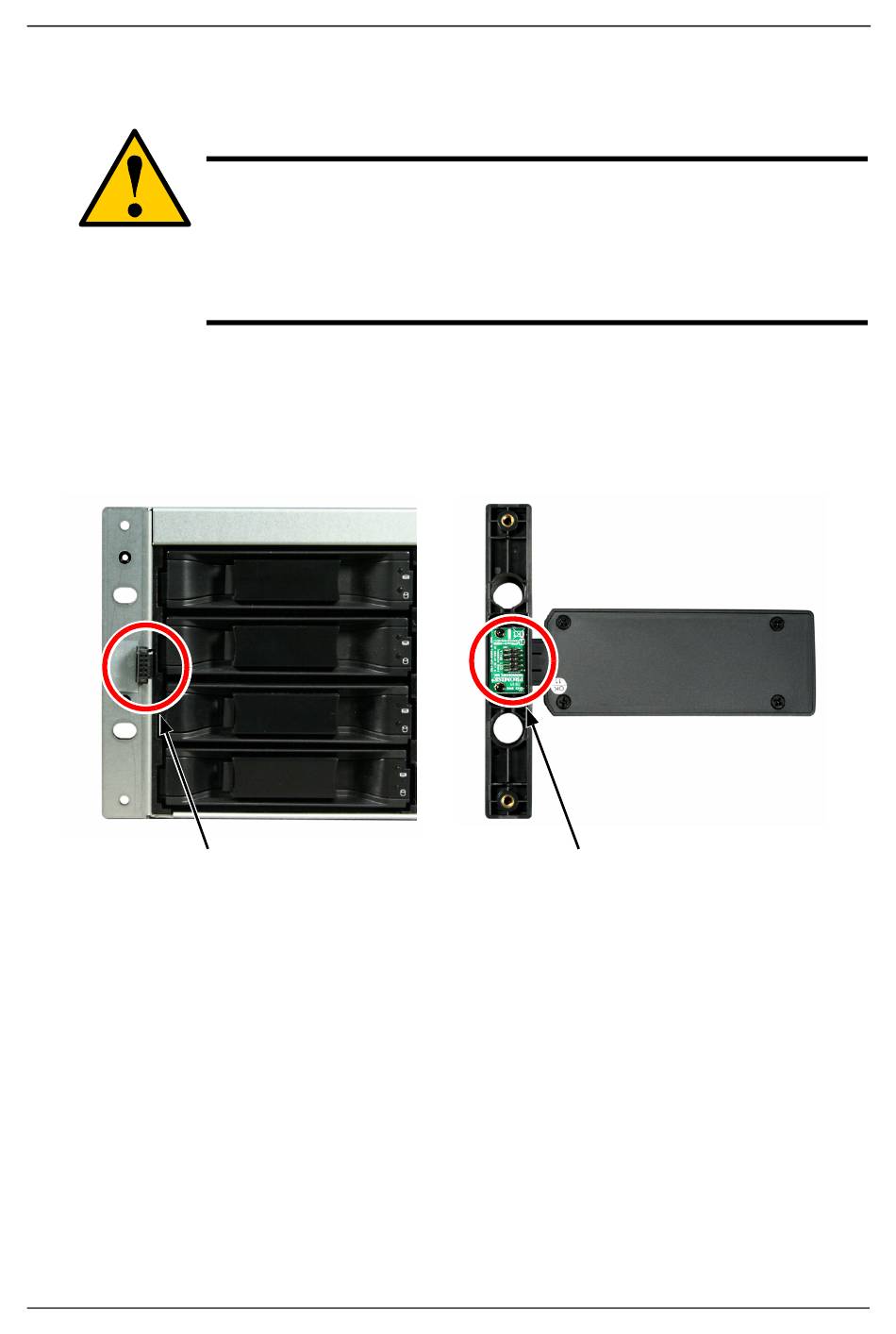

Figure 7. Align the connectors on the enclosure and the LCD panel
2. Insert the two attaching screws through the holes in the left bracket and into
the threaded holes in the LCD panel, as shown in Figure 8.
Tighten the screws to secure the LCD panel to the bracket.
• The LCD panel is NOT a hot-swap device. Be sure the
VessRAID is powered down before you connect or disconnect
the LCD panel.
• You must install the LCD panel before you mount the
VessRAID subsystem in a rack.
Connector on
the enclosure
Task 2: Installing the LCD Panel (Optional)
Cautions
Connector on
the LCD panel
7
