Task 7: Connecting the Power

Plug-in the power cords and turn on the switches on both power supplies.
When the power is switched on, the LEDs and LCD screen light up.

Front Panel LEDs

When boot-up is finished and the VessRAID subsystem is functioning normally:
• Power, Global Enclosure Status, and Global RAID Status LEDs display
green continuously.
• Controller Activity LED flashes green when there is controller activity.
• System Heartbeat LED blinks green seven times in three seconds, goes
dark for six seconds, then repeats the pattern.

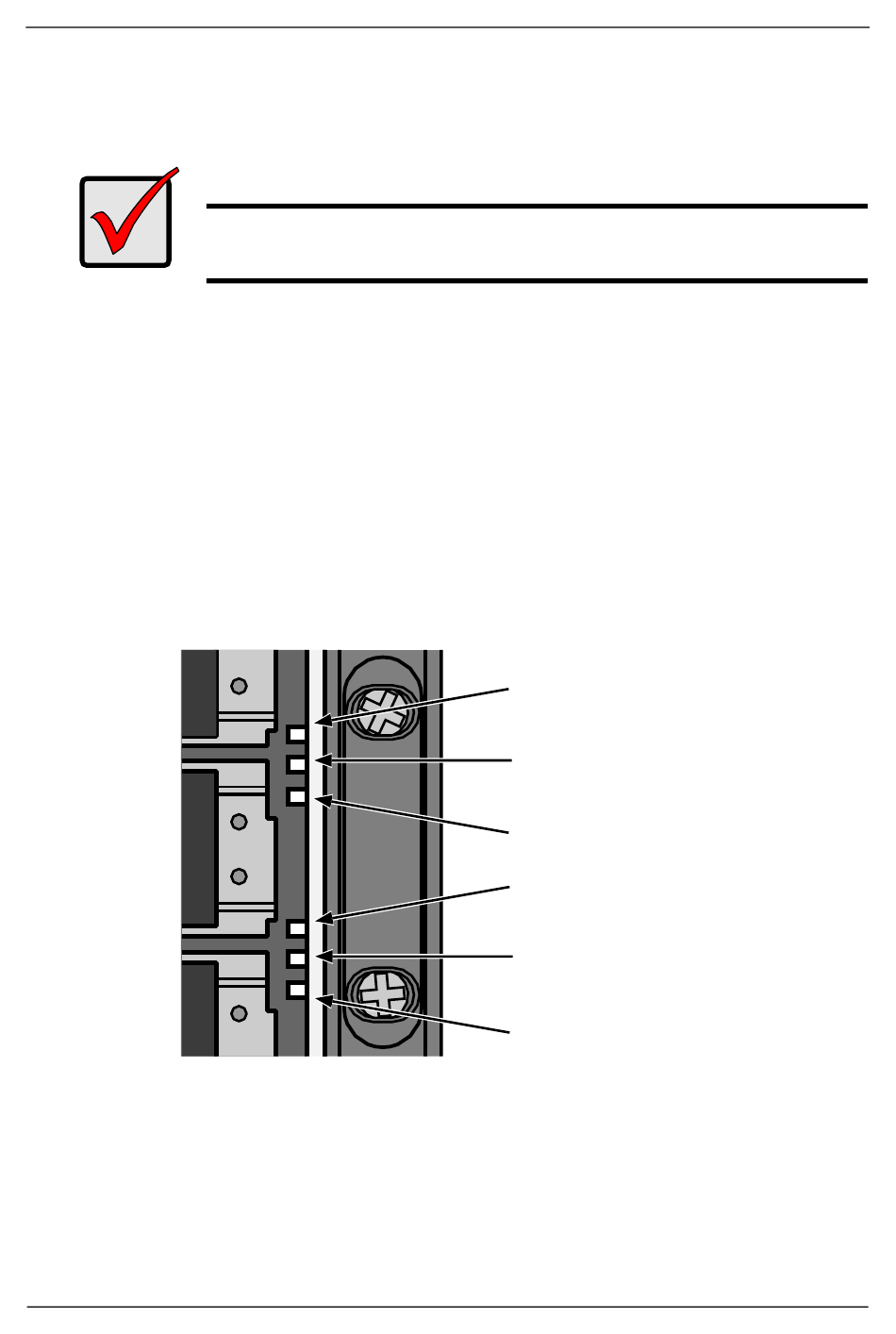

Figure 27.VessRAID front panel LED display

Controller LEDs

When boot-up is finished and the VessRAID subsystem is functioning normally:
• Battery, and Controller status LEDs display green continuously.
• Ethernet LEDs display green or flash depending on your network
connection.
If you have a SAN, DAS, or Cascade with JBOD Expansion,
always power on the JBOD subsystems first.
Important
Power
Global Enclosure Status
Global RAID Status
Controller Activity
Reserved
System Heartbeat
