If you have multiple VessRAID subsystems, Host PCs or Servers, repeat
steps 1 and 2 as required.

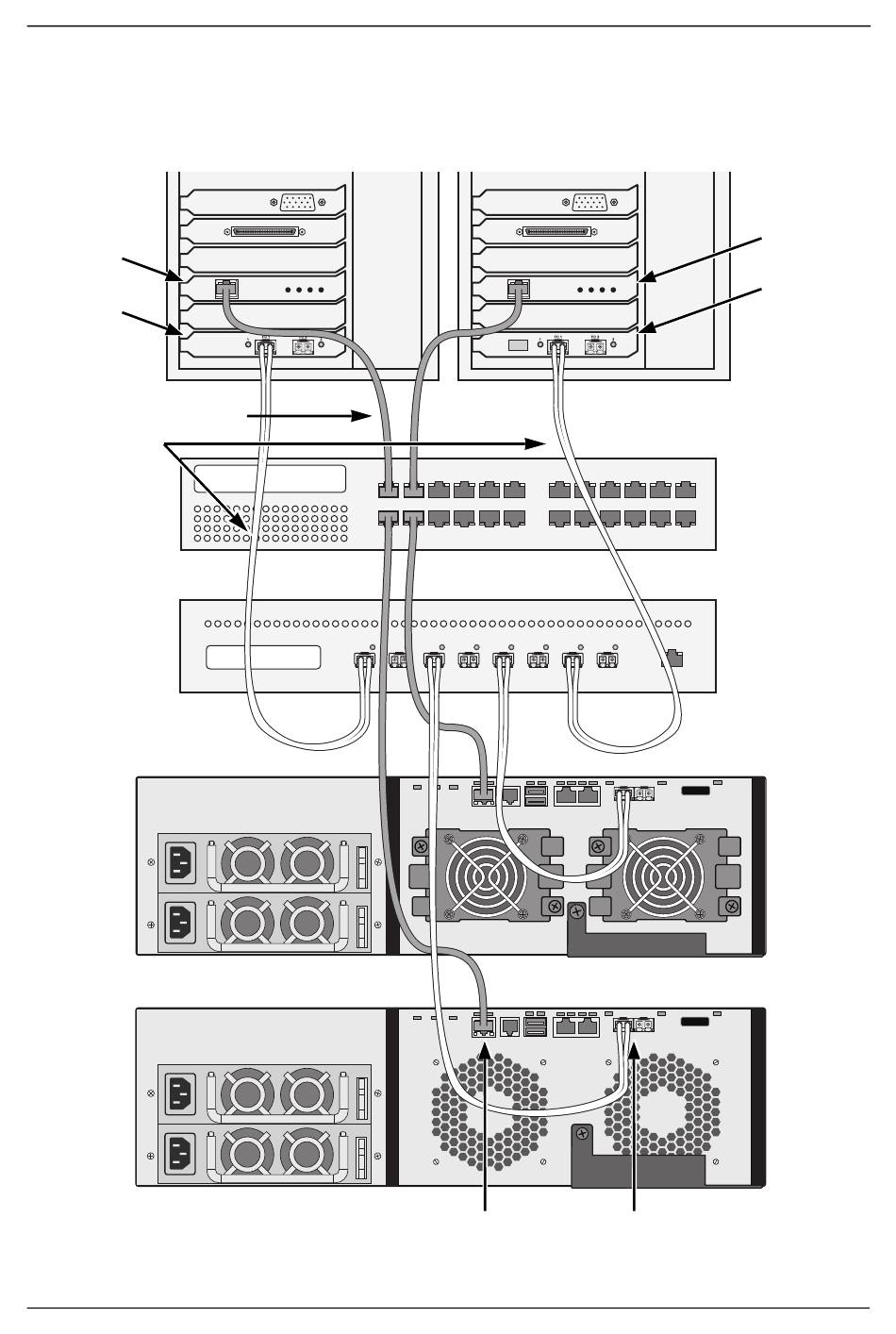

Figure 17.FC SAN data and management connections
NIC
FC card
Management Cables
Data Cables
VessRAID 1840f+
VessRAID 1840f
Task 5: Making Data and Management Connections
Management Port
19
NIC
FC card
Host PCs or
Servers
Network
Switch
FC Switch
FC Data Ports (2)
