CombiLock 200 simplex / pro / pro RFID

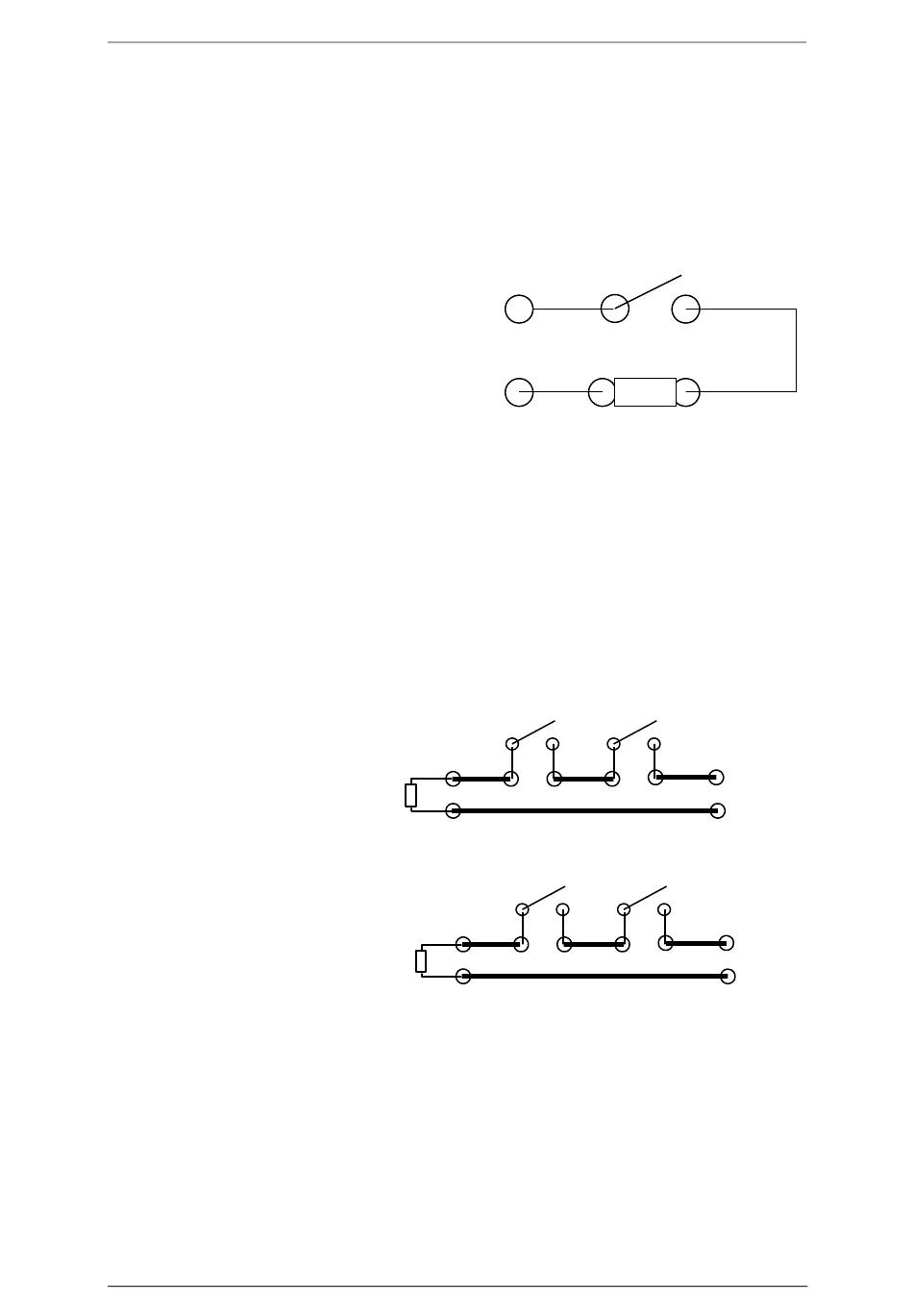

Anti-Tamper Circuit
CombiXT features an anti-tamper circuit implemented as a cover contact. You can add
elements to the anti-tamper circuit. If no further anti-tamper elements are to be
included, plug the jumper J3 next to the cover contact. You may solder on a resistor for
monitoring the anti-tamper circuit as a replacement for the jumper.
In standby mode / idle state, the anti-tamper circuit is closed.
Connection for Anti-Tamper Circuit
Solder Connection Block
for boltwork- and door contacts
Optionally 2 boltwork – and 2 door contacts can be applied at the blocking device. You
can apply resistors at the contacts in order to have the contacts monitored. Solder the
wires on at the solder points.
Example of contact connection:
Solder point 1:
Solder point 2:
Note:
Via the solder connection block you can connect these contacts to the burglar alarm
system. Apart from providing that option, the solder connection block does not have
any functional relevance for the lock / system.
Handbuch V.1.09A
Terminal 1
Terminal 2
Door contact 1
Resistance
Resistance
76
Cover contact
J3
Resistance monitoring
(optional)
Door contact 2
Boltwork Boltwork
contact 1 contact 2
Connection to
BAS
Connection
to BAS
