CombiLock 200 simplex / pro / pro RFID
7.2.3 Preassembling and Mounting the Spindle Variant A

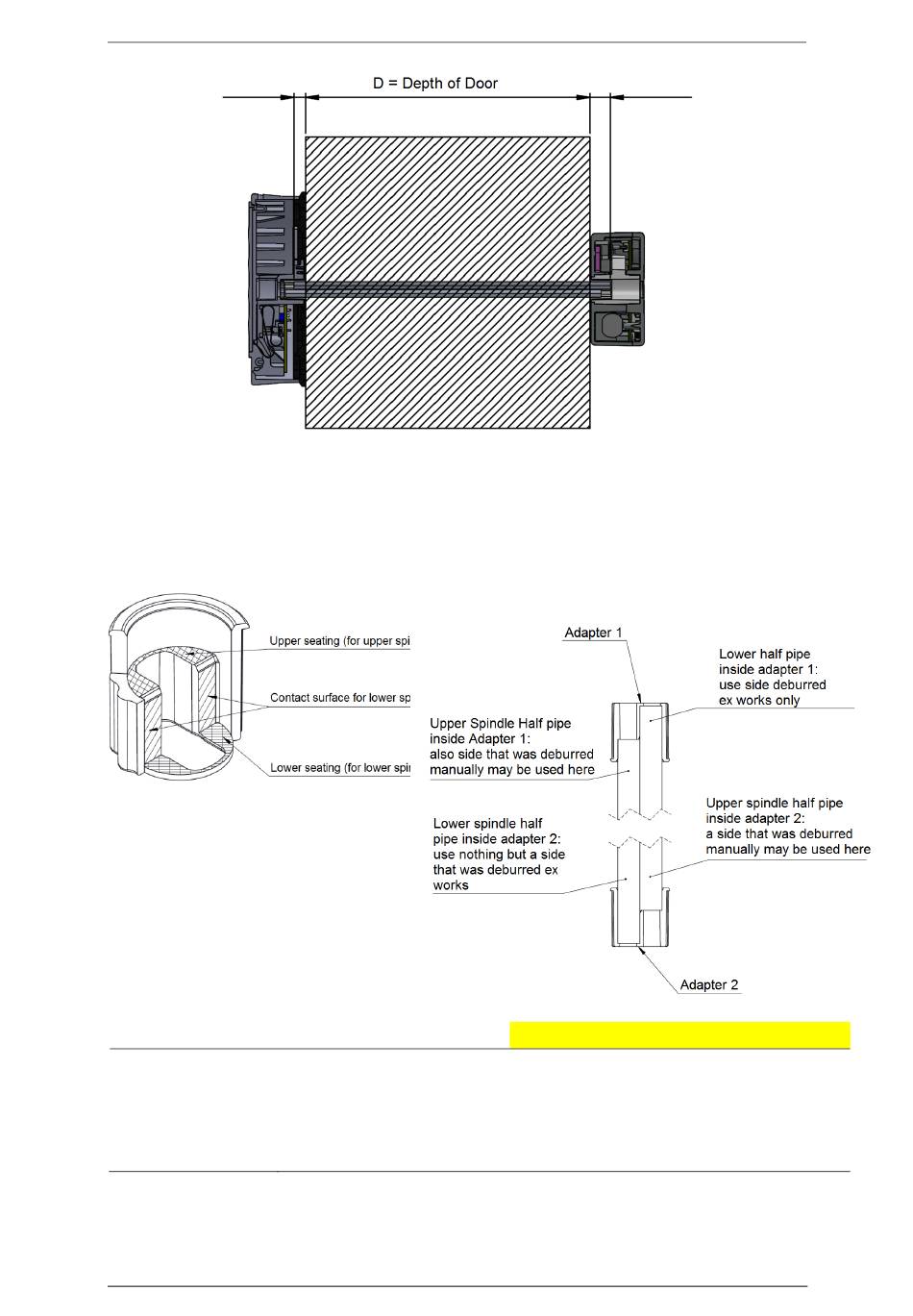

The following figures illustrate where upper and lower seating are within the
adapter. The lower spindle half pipe (the side of it that was deburred ex works)
should lie evenly upon the lower seating.
Danger of half pipe being not supported properly.
Only use the side of the spindle that has been deburred ex
works (not manually!) to be placed at the lower seating.
Use manually deburred spindle sides as upper spindle half pipes that
are placed upon the upper seating only, never on the lower one.
Handbuch V.1.09A 66
Caution
