CombiLock 200 simplex / pro / pro RFID

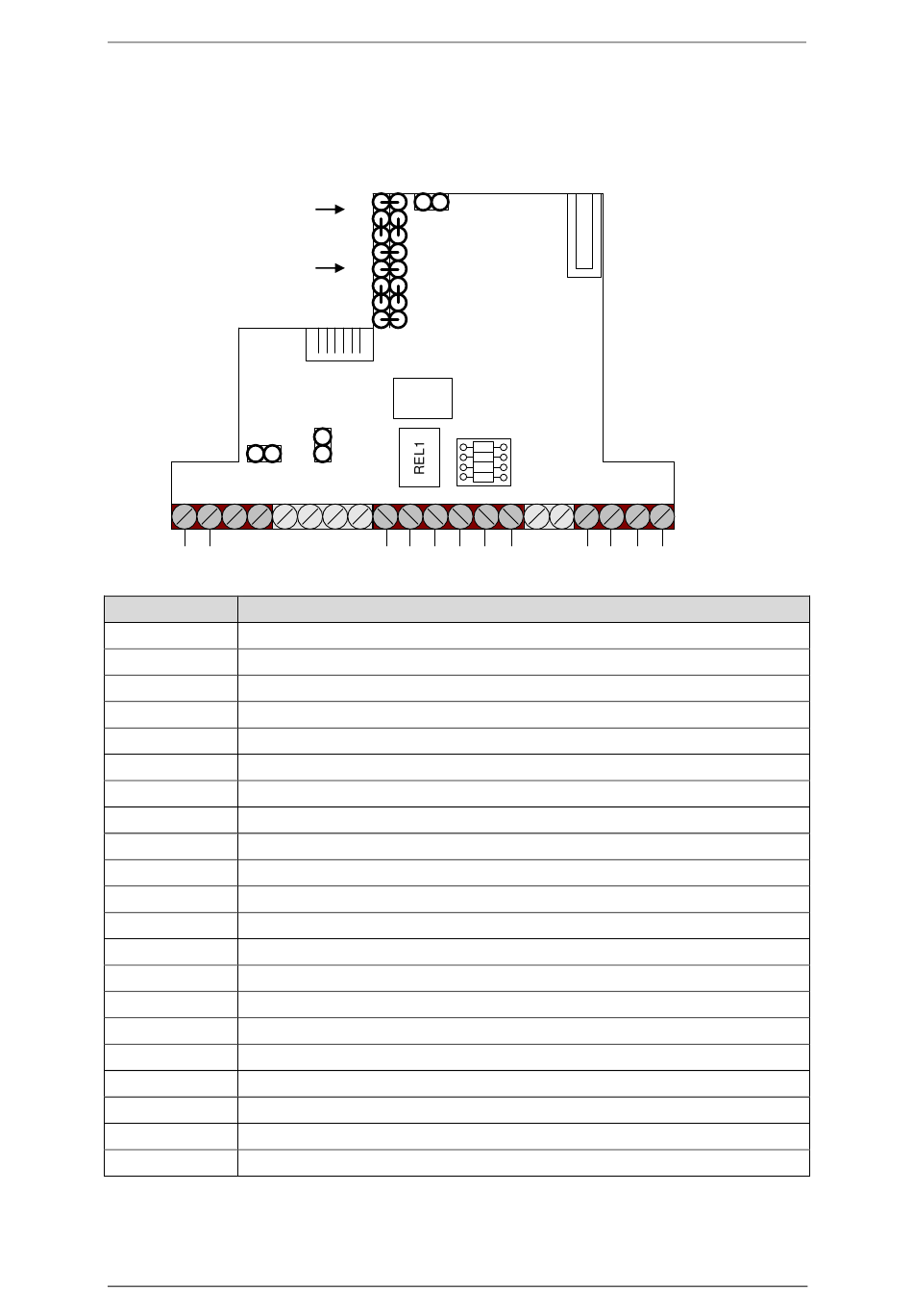

7.4.3 Connecting CombiXT to the Burglar Alarm System
Solder point 1
Solder point 2
J1
20
Terminal Description
1 SABO1 (anti-tamper contact)
2 SABO2
3 GND
4 12VDC
5 ---
6 ---
7 Status relay : NO (lock open)
8 Status relay : NC (lock closed )
9 Status relay : C
10 Alarm relay : NO (duress - / silent alarm)
11 Alarm relay : NC
12 Alarm relay : C
13 ---
14 ---
15 ---
16 ---
17 ---
18 ---
19 Release contact
20 GND
BU1 Socket for adapter cable for lock connection
Handbuch V.1.09A
Solder connection block
J3
BU1
REL2
J2
74
Cover contact
T1
R1
R2
R3
R4
1
