CombiLock 200 simplex / pro / pro RFID
7.2.7 Releasing the Keypad
In order to release the keypad (to change keypads,
for example), open it first (see section ‚Opening the
Keypad' on page 63).
Release the keypad by gently pressing the
protruding plastic piece that prevents the housing
from turning freely round the basic ring with a
small screwdriver to the top while turning the
housing anti-clockwise.
The keypad is released.
7.2.8 Drilling Holes for the Lock
Uneven surfaces may cause functional loss.
Make sure that the lock is mounted onto an even surface.

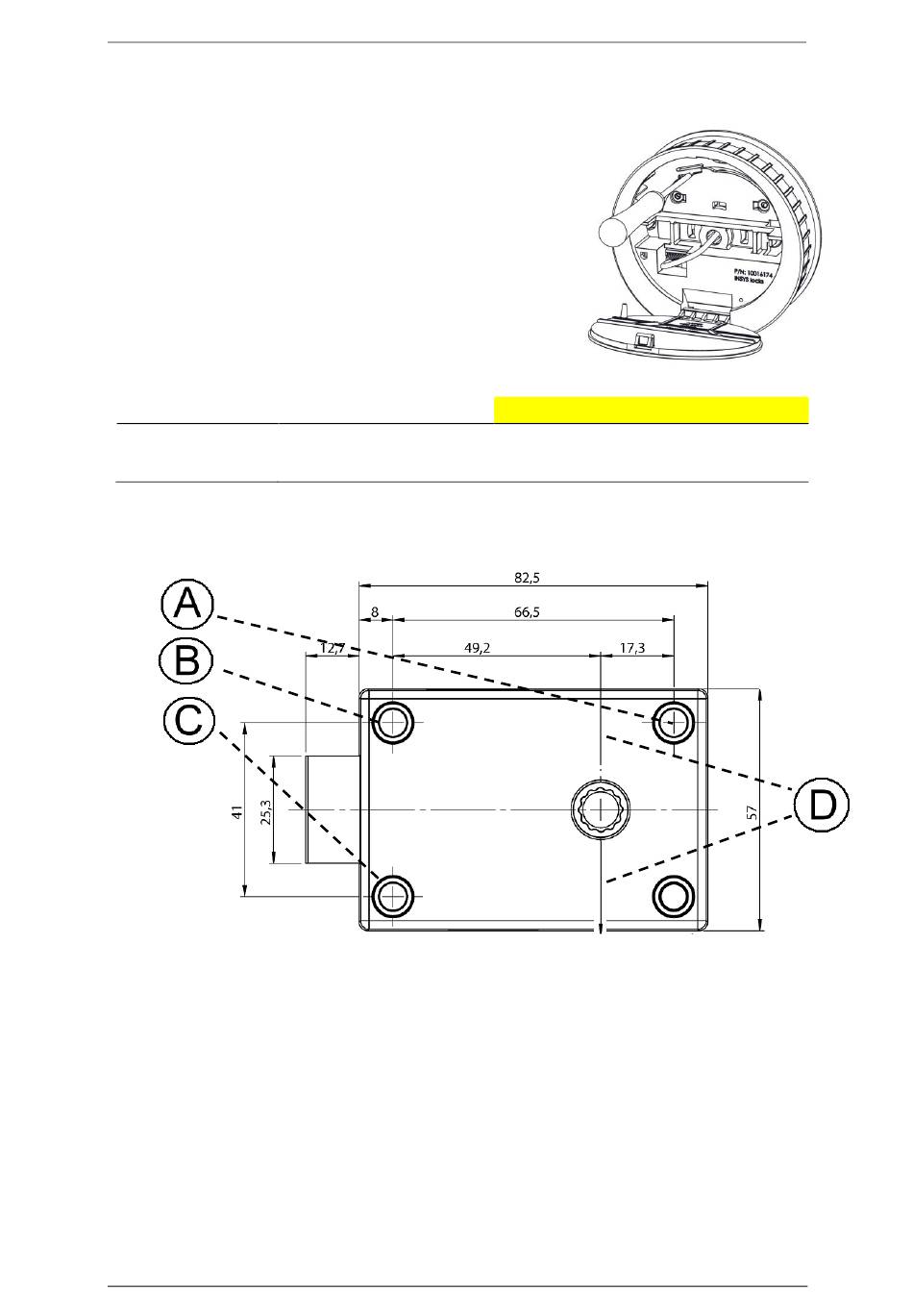

Drill 3 threaded holes M6 according to the drawing below in order to prepare the
attachment of the electronic lock.
A) Bore for the attachment of the lock
B) Bore for the attachment of the lock
C) Bore for the attachment of the lock
D) Centre shaft of electronic lock
Handbuch V.1.09A 70
