Optical and acoustic signal output during PIN- and CODE input
Q Red LED signal after the PIN has been
entered.
p 12 tone signal after the CODE has been
entered.
p 12 tone signal after the RFID-
transponder PIN has been read.
Green LED Q flashes every second.

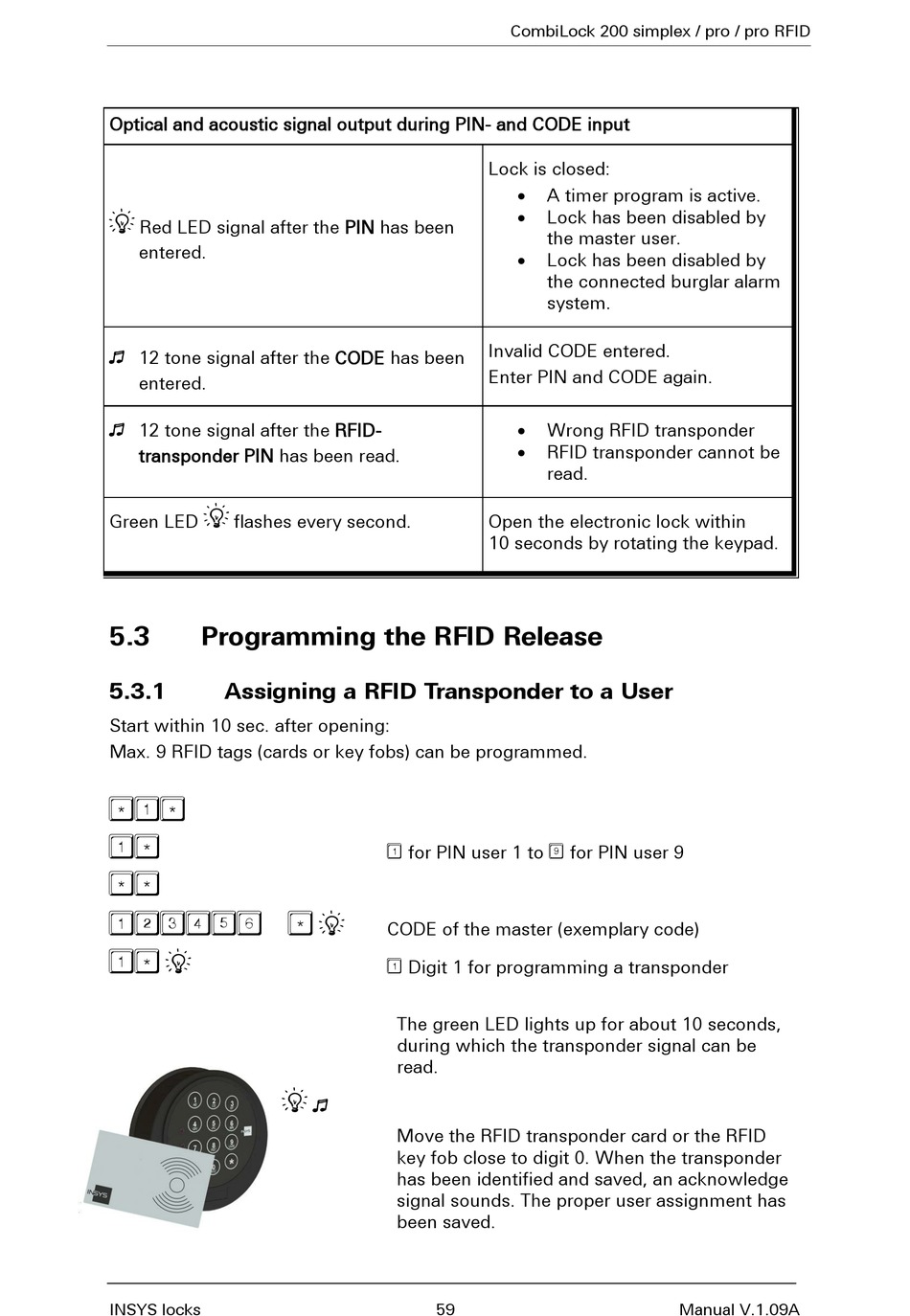

5.3

Programming the RFID Release

5.3.1 Assigning a RFID Transponder to a User
Start within 10 sec. after opening:
Max. 9 RFID tags (cards or key fobs) can be programmed.




Q

INSYS locks
 for PIN user 1 to  for PIN user 9
Q
CODE of the master (exemplary code)
 Digit 1 for programming a transponder
The green LED lights up for about 10 seconds,
during which the transponder signal can be
read.
Q p
Move the RFID transponder card or the RFID
key fob close to digit 0. When the transponder
has been identified and saved, an acknowledge
signal sounds. The proper user assignment has
been saved.
59
CombiLock 200 simplex / pro / pro RFID
Lock is closed:

A timer program is active.

Lock has been disabled by
the master user.

Lock has been disabled by
the connected burglar alarm
system.
Invalid CODE entered.
Enter PIN and CODE again.

Wrong RFID transponder

RFID transponder cannot be
read.
Open the electronic lock within
10 seconds by rotating the keypad.
Manual V.1.09A
