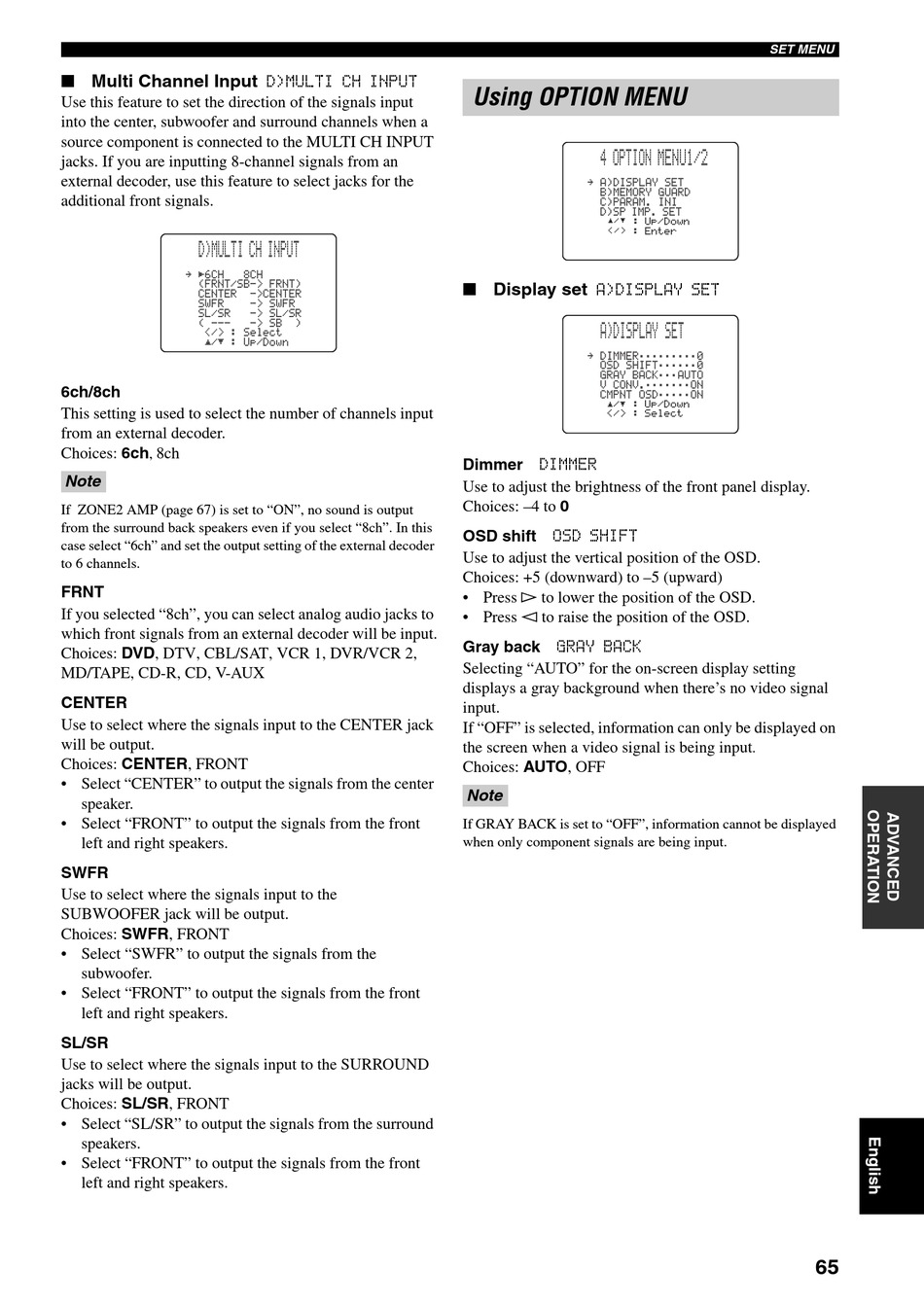

Using Option Menu - Yamaha RX-V1500 Bedienungsanleitung

Multi Channel Input
Use this feature to set the direction of the signals input
into the center, subwoofer and surround channels when a
source component is connected to the MULTI CH INPUT
jacks. If you are inputting 8-channel signals from an
external decoder, use this feature to select jacks for the
additional front signals.
D)MULTI CH INPUT
. [6CH
(FRNT/SB-> FRNT)
CENTER
SWFR
SL/SR
( ---
</> : Select
/ : Up/Down
6ch/8ch
This setting is used to select the number of channels input
from an external decoder.
Choices: 6ch 8ch
,
Note
If ZONE2 AMP (page 67) is set to "ON", no sound is output
from the surround back speakers even if you select "8ch". In this
case select "6ch" and set the output setting of the external decoder
to 6 channels.
FRNT
If you selected "8ch", you can select analog audio jacks to
which front signals from an external decoder will be input.
Choices: DVD, DTV, CBL/SAT, VCR 1, DVR/VCR 2,
MD/TAPE, CD-R, CD, V-AUX
CENTER
Use to select where the signals input to the CENTER jack
will be output.
Choices: CENTER, FRONT
• Select "CENTER" to output the signals from the center
speaker.
• Select "FRONT" to output the signals from the front
left and right speakers.
SWFR
Use to select where the signals input to the
SUBWOOFER jack will be output.
Choices: SWFR, FRONT
• Select "SWFR" to output the signals from the
subwoofer.
• Select "FRONT" to output the signals from the front
left and right speakers.
SL/SR
Use to select where the signals input to the SURROUND
jacks will be output.
Choices: SL/SR, FRONT
• Select "SL/SR" to output the signals from the surround
speakers.
• Select "FRONT" to output the signals from the front
left and right speakers.
D)MULTI CH INPUT
8CH
->CENTER
-> SWFR
-> SL/SR
-> SB )

Using OPTION MENU

4 OPTION MENU1/2
. A)DISPLAY SET
B)MEMORY GUARD
C)PARAM. INI
D)SP IMP. SET
/ : Up/Down
< / > : Enter
Display set
A)DISPLAY SET
A)DISPLAY SET
. DIMMER;;;;;;;;;0
OSD SHIFT;;;;;;0
GRAY BACK;;;AUTO
V CONV.;;;;;;;ON
CMPNT OSD;;;;;ON
/ : Up/Down
</> : Select
Dimmer DIMMER
Use to adjust the brightness of the front panel display.
Choices: –4 to 0
OSD shift OSD SHIFT
Use to adjust the vertical position of the OSD.
Choices: +5 (downward) to –5 (upward)
• Press h to lower the position of the OSD.
• Press l to raise the position of the OSD.
Gray back GRAY BACK
Selecting "AUTO" for the on-screen display setting
displays a gray background when there's no video signal
input.
If "OFF" is selected, information can only be displayed on
the screen when a video signal is being input
Choices: AUTO, OFF
Note
If GRAY BACK is set to "OFF", information cannot be displayed
when only component signals are being input.
SET MENU
.
65
