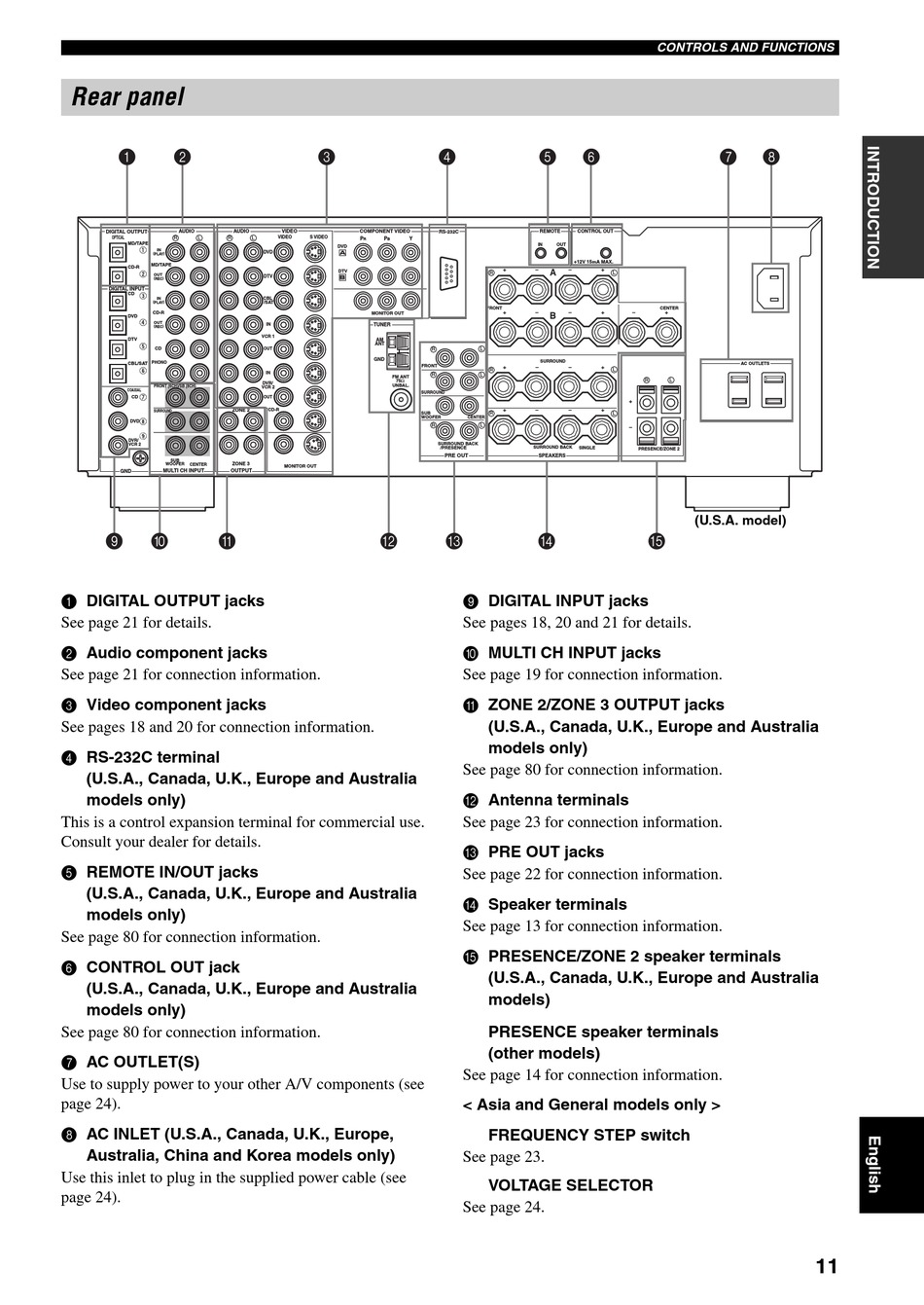

Rear panel

1 2
AUDIO AUDIO
DIGITAL OUTPUT
OPTICAL R L R
MD/TAPE
IN
(PLAY)
MD/TAPE
CD-R
OUT
(REC)
DIGITAL INPUT
CD
IN
(PLAY)
CD-R
DVD
OUT
(REC)
DTV
CD
CBL/SAT PHONO
FRONT (6CH)/SB (8CH)
COAXIAL
CD
ZONE 2
SURROUND
DVD
DVR/
VCR 2
SUB
ZONE 3
WOOFER CENTER
MULTI CH INPUT OUTPUT
GND
9 0 A
1 DIGITAL OUTPUT jacks
See page 21 for details.
2 Audio component jacks
See page 21 for connection information.
3 Video component jacks
See pages 18 and 20 for connection information.
4 RS-232C terminal
(U.S.A., Canada, U.K., Europe and Australia
models only)
This is a control expansion terminal for commercial use.
Consult your dealer for details.
5 REMOTE IN/OUT jacks
(U.S.A., Canada, U.K., Europe and Australia
models only)
See page 80 for connection information.
6 CONTROL OUT jack
(U.S.A., Canada, U.K., Europe and Australia
models only)
See page 80 for connection information.
7 AC OUTLET(S)
Use to supply power to your other A/V components (see
page 24).
8 AC INLET (U.S.A., Canada, U.K., Europe,
Australia, China and Korea models only)
Use this inlet to plug in the supplied power cable (see
page 24).
3
VIDEO COMPONENT VIDEO
L VIDEO S VIDEO
P P Y
R B
DVD
DVD
DTV
DTV
CBL
/SAT
MONITOR OUT
IN
TUNER
VCR 1
AM
ANT
OUT
GND
FRONT
IN
FM ANT
75Ω
DVR/
UNBAL.
VCR 2
SURROUND
OUT
CD-R
SUB
WOOFER
MONITOR OUT
B
4 5 6
RS-232C REMOTE CONTROL OUT
IN OUT
+12V 15mA MAX.
+ – – +
A
R
FRONT
+ – – +
B
L
R
SURROUND
+ – – +
R
R L
+ – – +
R
CENTER
R L
SURROUND BACK
/PRESENCE SURROUND BACK SINGLE
PRE OUT SPEAKERS
C D
9 DIGITAL INPUT jacks
See pages 18, 20 and 21 for details.
0 MULTI CH INPUT jacks
See page 19 for connection information.
A ZONE 2/ZONE 3 OUTPUT jacks
(U.S.A., Canada, U.K., Europe and Australia
models only)
See page 80 for connection information.
B Antenna terminals
See page 23 for connection information.
C PRE OUT jacks
See page 22 for connection information.
D Speaker terminals
See page 13 for connection information.
E PRESENCE/ZONE 2 speaker terminals
(U.S.A., Canada, U.K., Europe and Australia
models)
PRESENCE speaker terminals
(other models)
See page 14 for connection information.
< Asia and General models only >
FREQUENCY STEP switch
See page 23.
VOLTAGE SELECTOR
See page 24.
