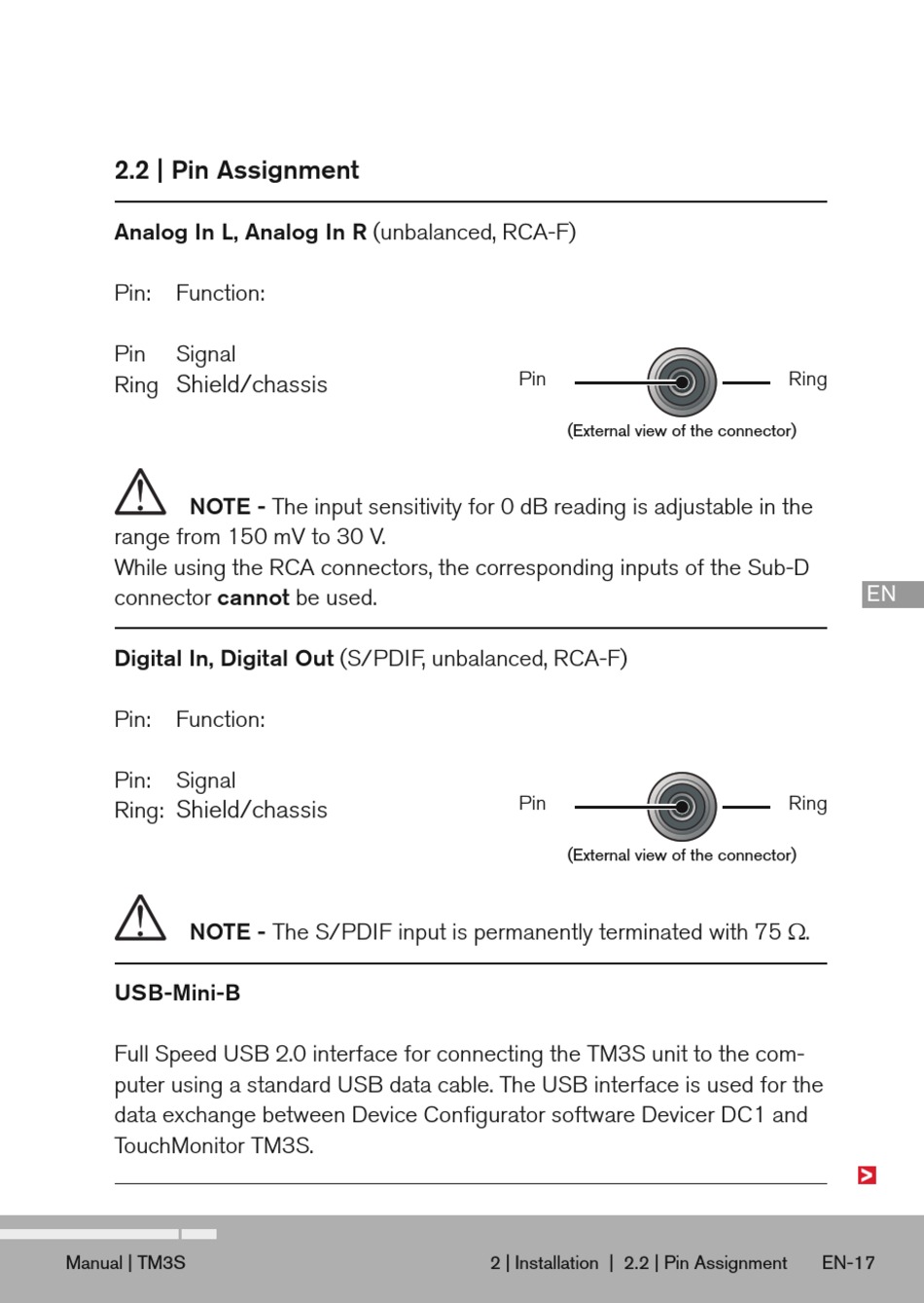

2.2 | Pin Assignment

Analog In L, Analog In R (unbalanced, RCA-F)
Pin: Function:
Pin Signal
Shield/chassis
Ring
NOTE - The input sensitivity for 0 dB reading is adjustable in the
range from 150 mV to 30 V.
While using the RCA connectors, the corresponding inputs of the Sub-D
connector cannot be used.
Digital In, Digital Out (S/PDIF, unbalanced, RCA-F)
Pin: Function:
Pin: Signal
Shield/chassis
Ring:
NOTE - The S/PDIF input is permanently terminated with 75 .
USB-Mini-B
Full Speed USB 2.0 interface for connecting the TM3S unit to the com-
puter using a standard USB data cable. The USB interface is used for the
data exchange between Device Confi gurator software Devicer DC1 and
TouchMonitor TM3S.
Manual | TM3S
Pin
(External view of the connector)
Pin
(External view of the connector)
2 | Installation | 2.2 | Pin Assignment
Ring
EN
Ring
EN-17
