Connection (continued)

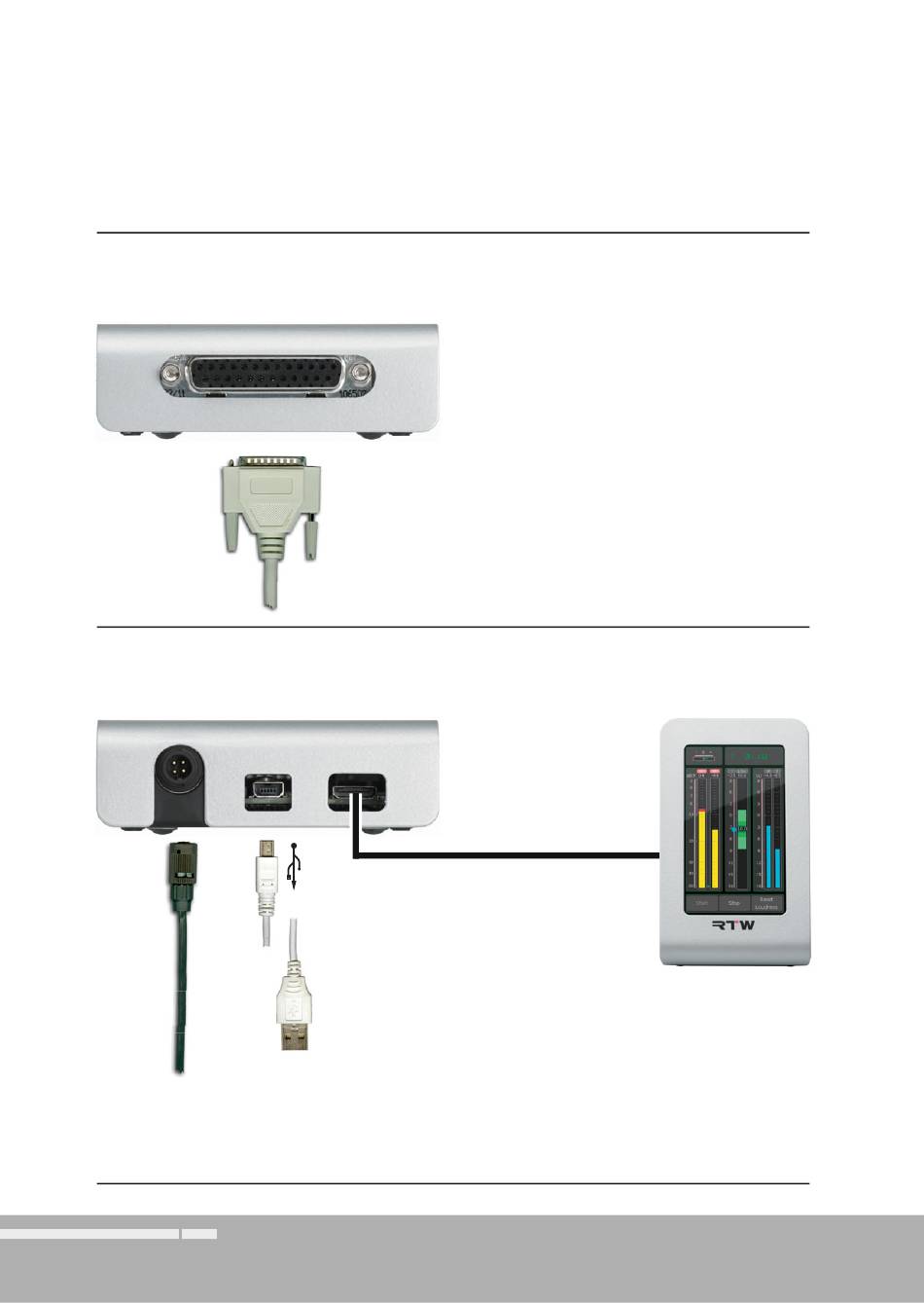

Left Side View of the Interface Box
Right Side View of the Interface Box
4-pin locking low voltage connector
24 V DC, 160 mA (nominal), for connecting
the wide voltage power supply
EN-16 2 | Installation | 2.1 | Connection
Analog In L/R (Sub-D) *)
3 AES3 In/Out (1 - 3, Sub-D)
*) Analog In via RCA and Analog In via Sub-D
cannot be used in parallel!
Connected to display unit
(2 m, max. 15 m)
USB 2.0 Mini-B
(USB interface cable for the
exchange of Devicer DC1 and
TM3S data required)
