2.2 | Pin Assignment

3G-SDI In, 3G-SDI Through (unbalanced, BNC-F)
Pin:
Function:
Pin
Signal
Ring Shield/chassis
NOTE - The input signals are looped through without processing.

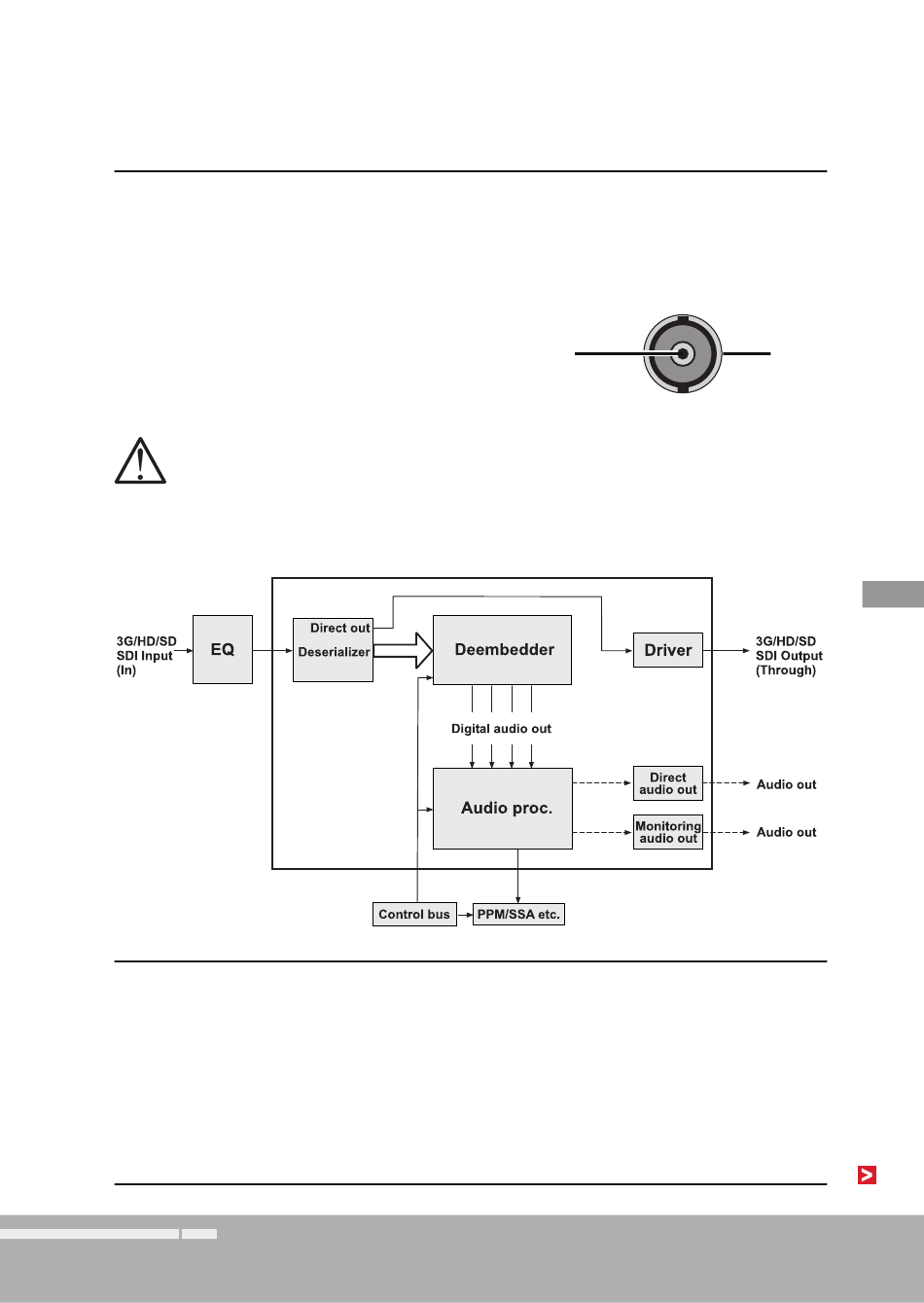

Block diagram of the 3G-SDI deembedder interface
USB-Mini-B
Full Speed USB 2.0 interface for connecting the TM3-3GS units to the
computer using a standard USB data cable. The USB interface is used
for the data exchange between Device Confi gurator software Devicer
DC1 and TouchMonitor TM3-3GS units.
Manual | TM3-3GS
Pin
(External view of the connector)
2 | Installation | 2.2 | Pin Assignment
Ring
EN
EN-17
