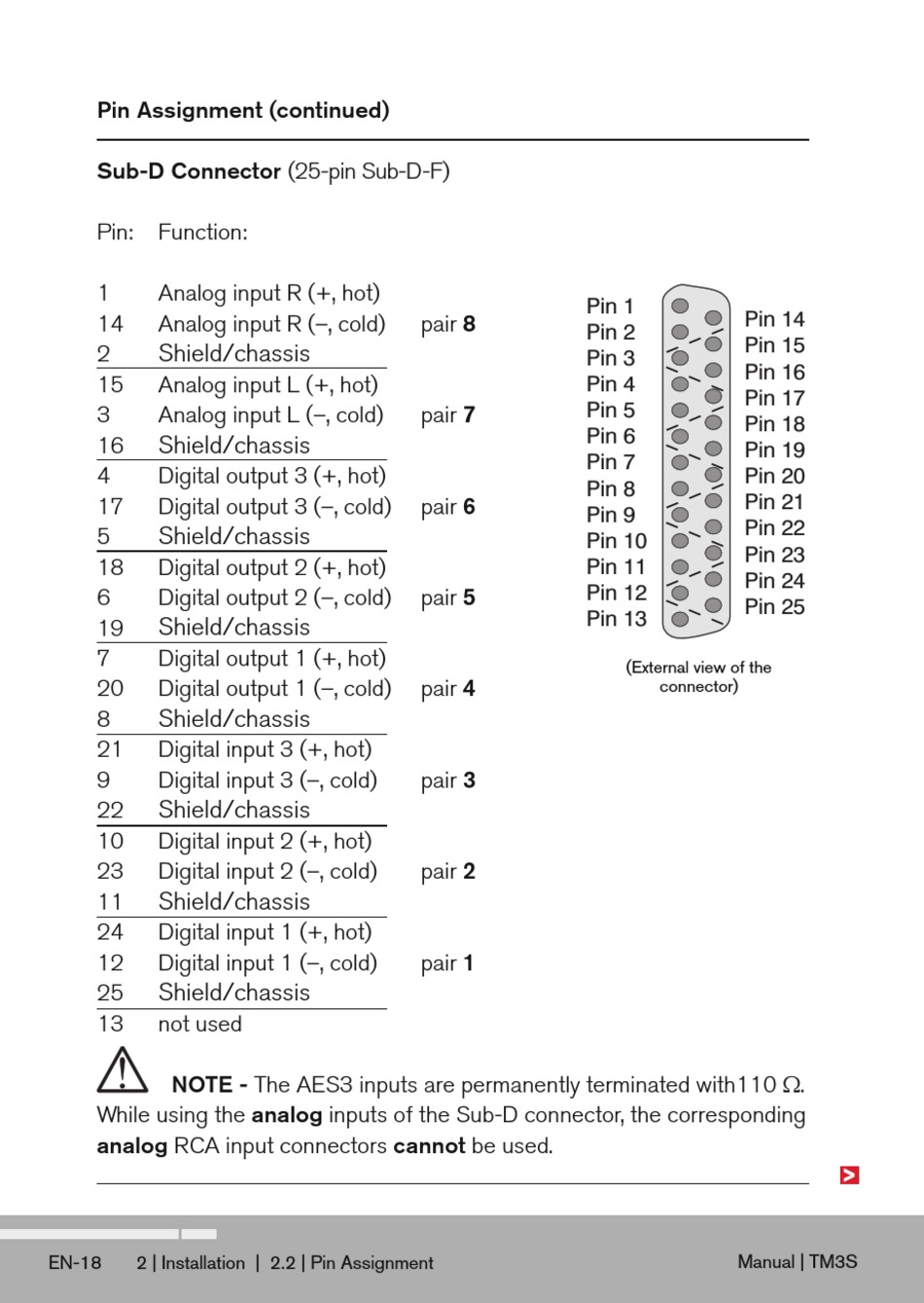

Pin Assignment (continued)
Sub-D Connector (25-pin Sub-D-F)
Pin: Function:
1 Analog input R (+, hot)
14 Analog input R (–, cold)
Shield/chassis
2
15 Analog input L (+, hot)
3 Analog input L (–, cold)
Shield/chassis
16
4 Digital output 3 (+, hot)
17 Digital output 3 (–, cold)
Shield/chassis
5
18 Digital output 2 (+, hot)
6 Digital output 2 (–, cold)
Shield/chassis
19
7 Digital output 1 (+, hot)
20 Digital output 1 (–, cold)
Shield/chassis
8
21 Digital input 3 (+, hot)
9 Digital input 3 (–, cold)
Shield/chassis
22
10 Digital input 2 (+, hot)
23 Digital input 2 (–, cold)
Shield/chassis
11
24 Digital input 1 (+, hot)
12 Digital input 1 (–, cold)
Shield/chassis
25
13 not used
NOTE - The AES3 inputs are permanently terminated with110 .
While using the analog inputs of the Sub-D connector, the corresponding
analog RCA input connectors cannot be used.
EN-18 2 | Installation | 2.2 | Pin Assignment
P i n 1
pair 8
P i n 2
P i n 3
P i n 4
P i n 5
pair 7
P i n 6
P i n 7
P i n 8
pair 6
P i n 9
P i n 1 0
P i n 1 1
P i n 1 2
pair 5
P i n 1 3
pair 4
pair 3
pair 2
pair 1
P i n 1 4
P i n 1 5
P i n 1 6
P i n 1 7
P i n 1 8
P i n 1 9
P i n 2 0
P i n 2 1
P i n 2 2
P i n 2 3
P i n 2 4
P i n 2 5
(External view of the
connector)
