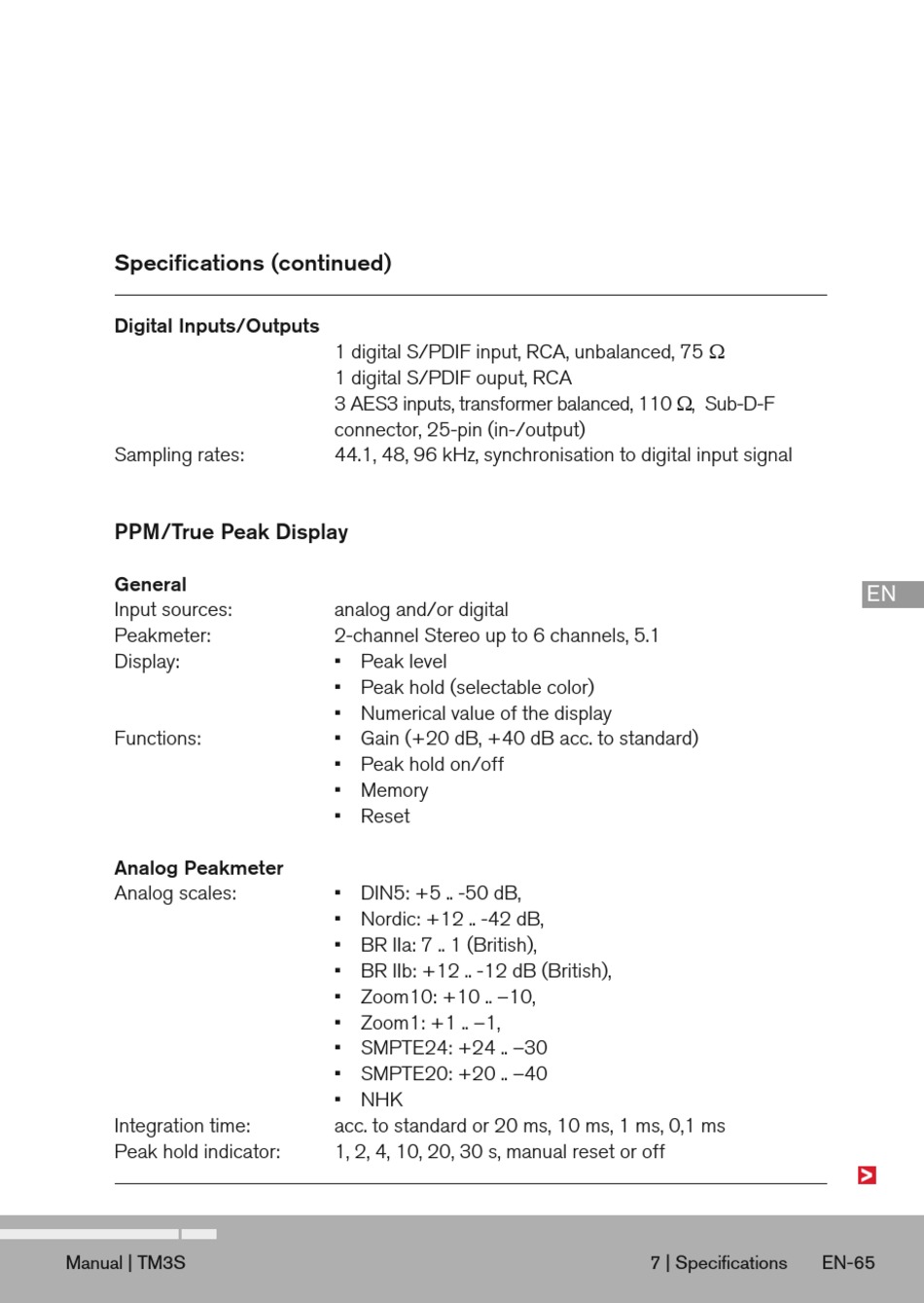

Specifi cations (continued)
Digital Inputs/Outputs
Sampling rates:
PPM/True Peak Display
General
Input sources:
Peakmeter:
Display:
Functions:
Analog Peakmeter
Analog scales:
Integration time:
Peak hold indicator:
Manual | TM3S
1 digital S/PDIF input, RCA, unbalanced, 75 
1 digital S/PDIF ouput, RCA
3 AES3 inputs, transformer balanced, 110 , Sub-D-F
connector, 25-pin (in-/output)
44.1, 48, 96 kHz, synchronisation to digital input signal
analog and/or digital
2-channel Stereo up to 6 channels, 5.1
• Peak level
• Peak hold (selectable color)
• Numerical value of the display
• Gain (+20 dB, +40 dB acc. to standard)
• Peak hold on/off
• Memory
• Reset
• DIN5: +5 .. -50 dB,
• Nordic: +12 .. -42 dB,
• BR IIa: 7 .. 1 (British),
• BR IIb: +12 .. -12 dB (British),
• Zoom10: +10 .. –10,
• Zoom1: +1 .. –1,
• SMPTE24: +24 .. –30
• SMPTE20: +20 .. –40
• NHK
acc. to standard or 20 ms, 10 ms, 1 ms, 0,1 ms
1, 2, 4, 10, 20, 30 s, manual reset or off
7 | Specifi cations EN-65
