Pin Assignment (continued)

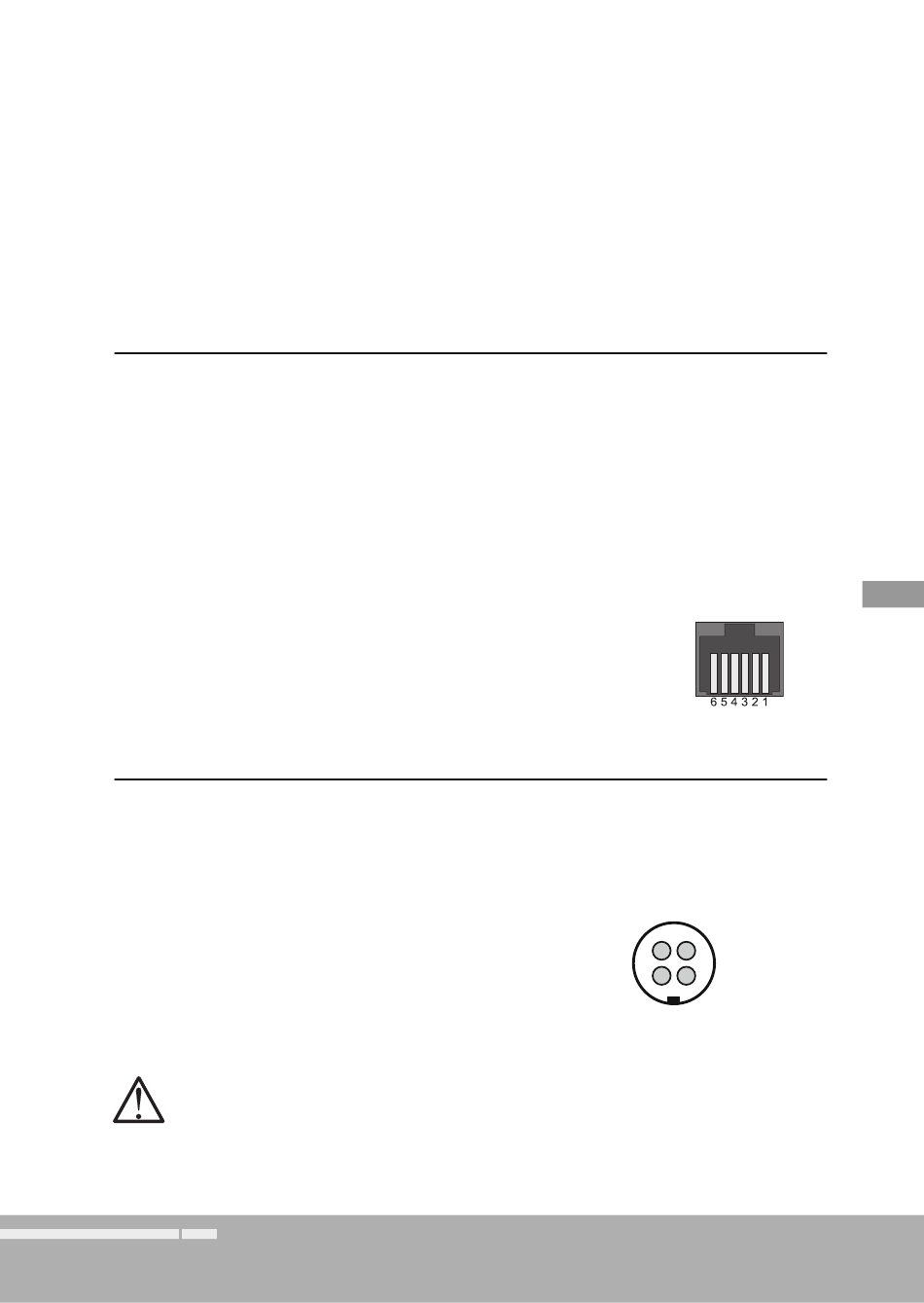

GPIO (RJ-12-6P6C socket)
External control of functions and presets recall as defi ned in the Global
Keyboard menu. The inputs defi ned as „active low" have to be switched
against 0 V (Pin 1).
Pin: Function:
1 GND
2 - 6 Function acc. to defi nition in the menu
24 V DC (4-pin locking low voltage, type Binder 710)
Pin: Function:
1 +24 V DC
2 +24 V DC
3 0 V
4 0 V
NOTE - An external overcurrent protective device (2 A max.) shall
be installed when using an external 24 V DC power supply!
Manual | TM3S
Pin 3
Pin 4
(External view of the connector)
2 | Installation | 2.2 | Pin Assignment
(External view of the
connector)
Pin 2
Pin 1
EN-19
