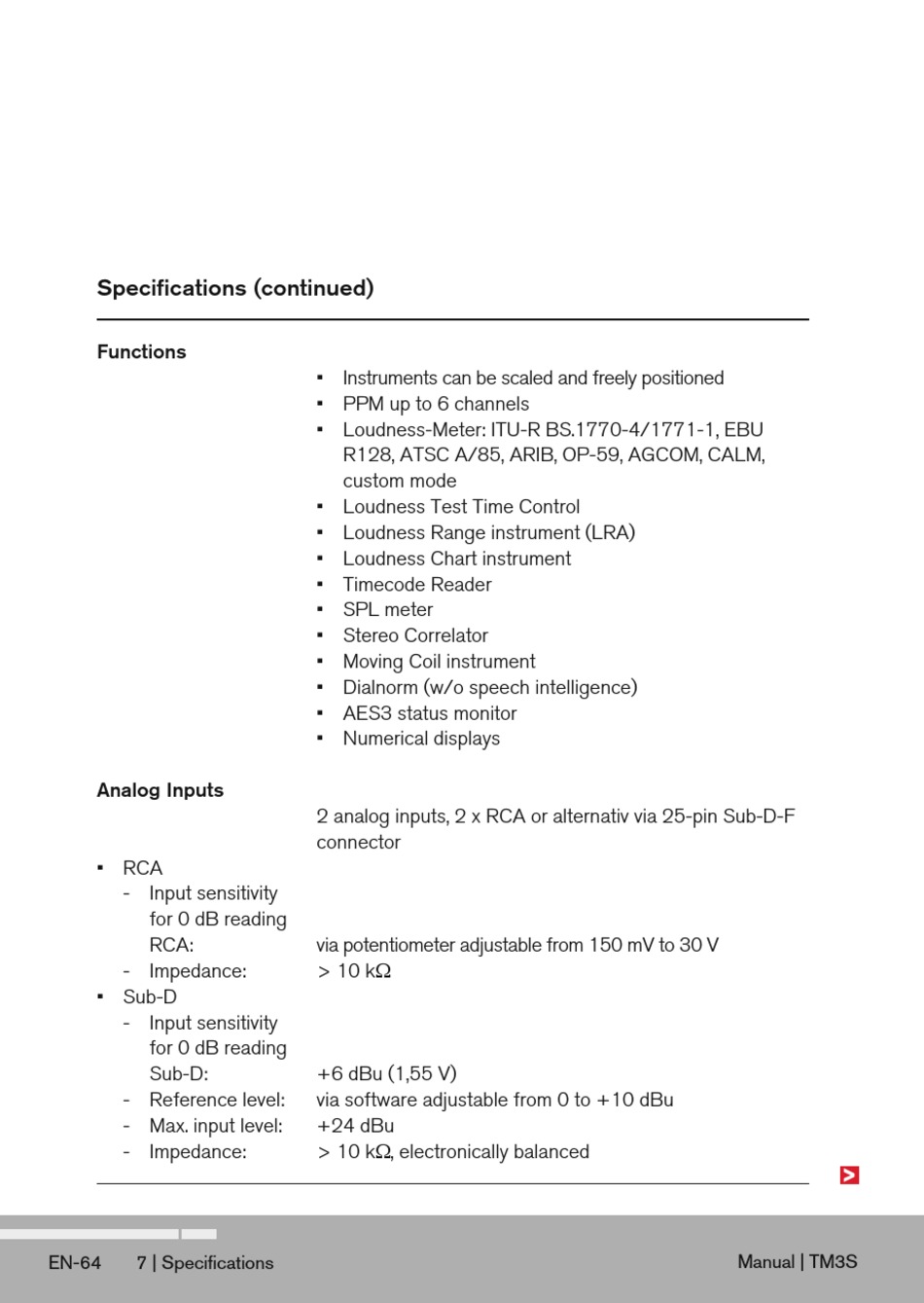

Specifi cations (continued)
Functions
Analog Inputs
• RCA
- Input sensitivity
for 0 dB reading
RCA:
- Impedance:
• Sub-D
- Input sensitivity
for 0 dB reading
Sub-D:
- Reference level:
- Max. input level:
- Impedance:
EN-64 7 | Specifi cations
• Instruments can be scaled and freely positioned
• PPM up to 6 channels
• Loudness-Meter: ITU-R BS.1770-4/1771-1, EBU
R128, ATSC A/85, ARIB, OP-59, AGCOM, CALM,
custom mode
• Loudness Test Time Control
• Loudness Range instrument (LRA)
• Loudness Chart instrument
• Timecode Reader
• SPL meter
• Stereo Correlator
• Moving Coil instrument
• Dialnorm (w/o speech intelligence)
• AES3 status monitor
• Numerical displays
2 analog inputs, 2 x RCA or alternativ via 25-pin Sub-D-F
connector
via potentiometer adjustable from 150 mV to 30 V
> 10 k
+6 dBu (1,55 V)
via software adjustable from 0 to +10 dBu
+24 dBu
> 10 k, electronically balanced
