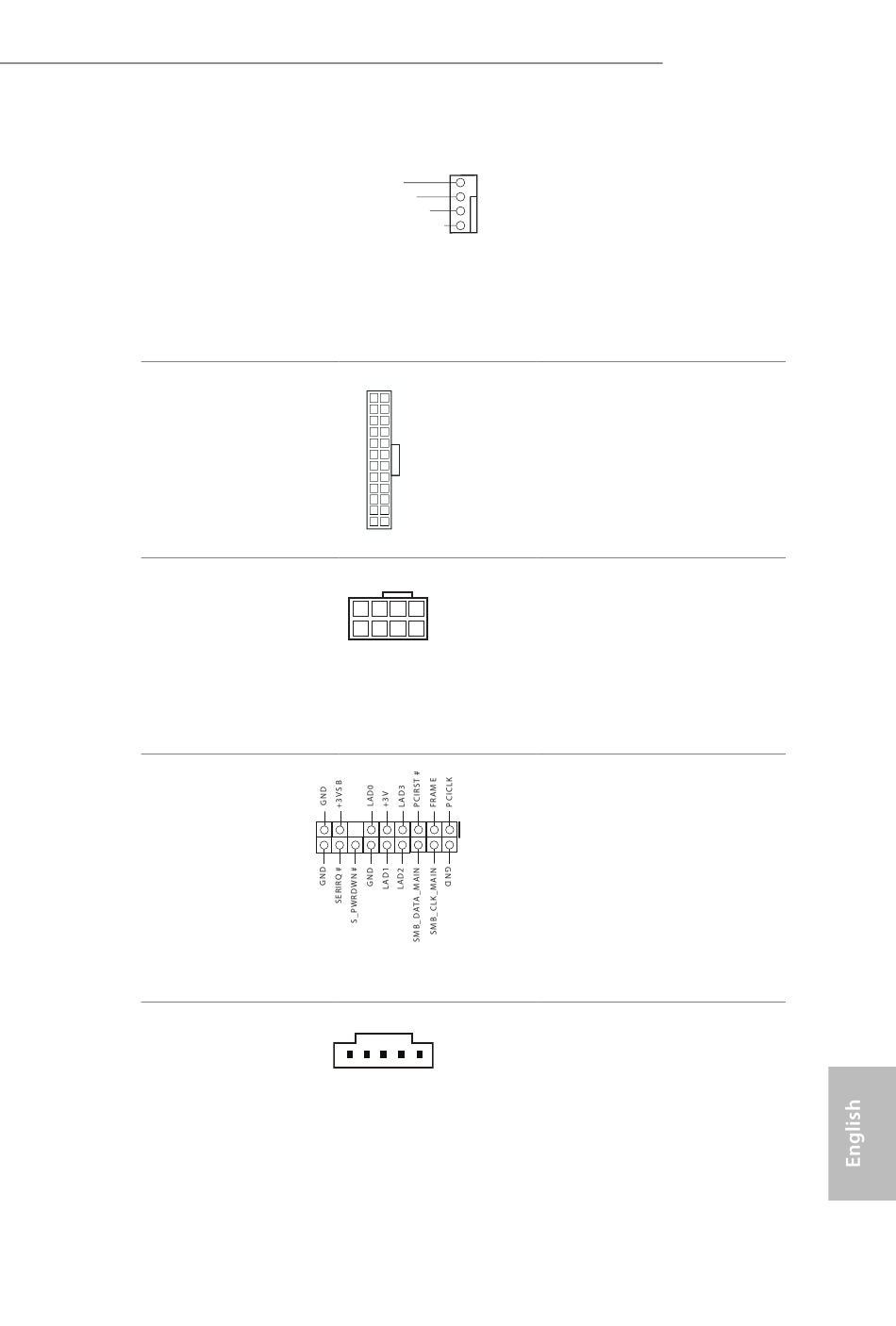

CPU Optional/Water
FAN_SPEED_CONTROL
Pump Fan Connector
(4-pin CPU_OPT/W_
PUMP)
(see p.1, No. 2)
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 8)
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)
TPM Header
(17-pin TPMS1)
(see p.1, No. 26)
Thunderbolt AIC
Connector
(5-pin TB1)
(see p.1, No. 25)
4
CPU_FAN_SPEED 3
2
FAN_VOLTAGE
GND 1
12 24
1 13
8 5
4 1
1
1
Z370 Taichi
This motherboard
provides a 4-Pin water
cooling CPU fan
connector. If you plan
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.
This motherboard
provides a 24-pin ATX
power connector. To use a
20-pin ATX power supply,
please plug it along Pin 1
and Pin 13.
This motherboard
provides an 8-pin ATX
12V power connector. To
use a 4-pin ATX power
supply, please plug it along
Pin 1 and Pin 5.
This connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certificates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
Please connect a Thunderbolt™
add-in card (AIC) to this
connector via the GPIO cable.
