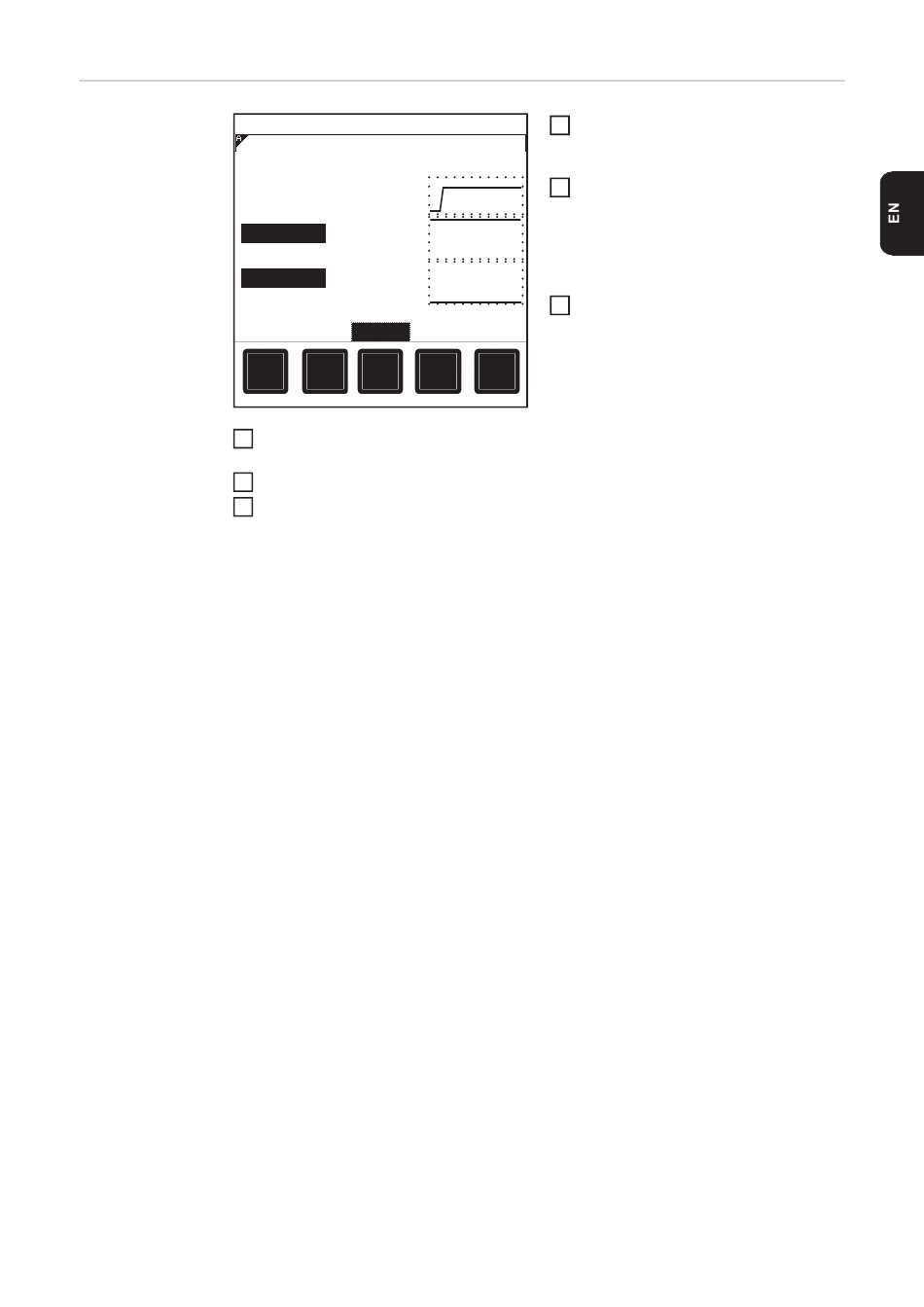

MagicCleaner ca-
MagicCleaner
ble test
Guntrigger
U (cable test)
I (cable test)
Supply
4
5
6
MagicCleaner
4.99 V
9.69 V
0.00 A
4.89 V, 0.004 A
Start
cable test
Press the 'Start cable test' function key
- The cable test is carried out and the parameters are displayed
Press the 'Start cable test' key again to end the cable test
Press the MENU key to return to the main menu
On the 'Special devices' screen, use
1
the adjusting dial to select the MagicC-
leaner work area
Press the 'Select' function key
2
- the 'MagicCleaner' screen is dis-
played
- the LED above the appropriate
connection on the test box lights
up
Connect the MagicCleaner to the MIG/
3
MAG connection on the test box using
the MagicCleaner adapter
53
