Testing special devices

General

This section describes the testing of the following components:
-
-

Preparations

MIG/MAG torches
TIG torches
LocalNet Devices
Special devices
Info about testbox
Testing special
devices AL1500 / TR1500F
52

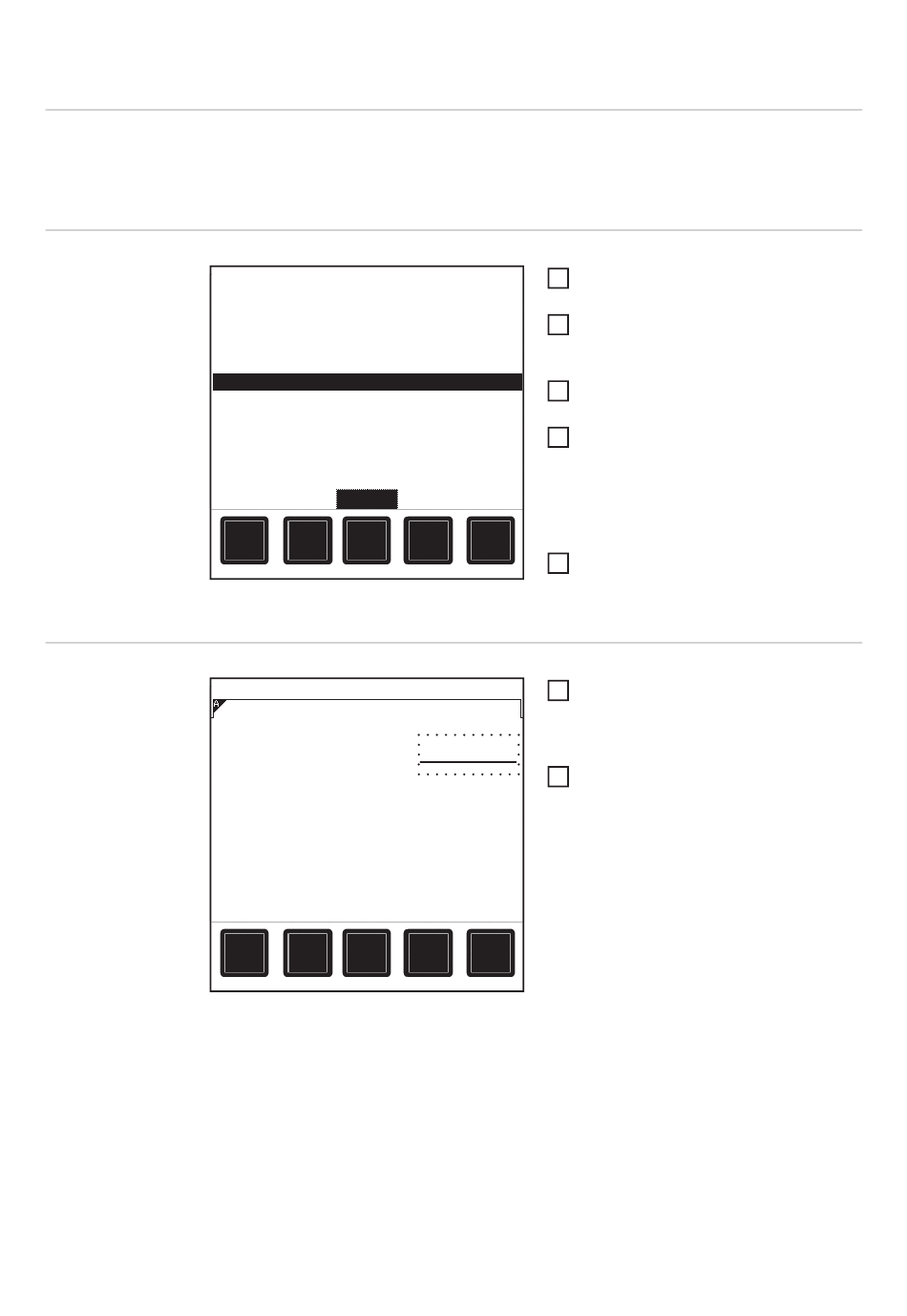

Potentiometer (AL 1500 / TR 1500F)
Button on MagicCleaner handle
Main menu
Select
AL1500 / TR1500F
AL1500/TR1500F
Pot.-value 2.10 V
Supply 4.98 V, 0.004 A
Use the adjusting dial to select the spe-
1
cial devices work area
Press the 'Select' function key
2
- the 'Special devices' screen is dis-
played
Use the adjusting dial to select the
3
desired device
Press the 'Select' function key
4
- the screen for the selected device
is displayed
- the LED above the appropriate
connection on the test box lights
up
Use an adapter to connect the relevant
5
device to the correct connection socket
on the test box
Actuate the potentiometer or press the
1
button
- the relevant parameters will appe-
ar
Press the MENU key to return to the
2
main menu
The signal must rise or fall steeply and then
run in a straight line from left to right. If there
are any glitches or pronounced uneven-
ness in the signal, this means the device is
faulty. In this case, inform After-Sales Ser-
vice.
