Torch identifica- The torch identification is used to distinguish a standard welding torch from an Up/Down
tion torch. Torch identification gives a reading of
-
-
Torch identification is carried out irrespective of the user.
Testing welding
MIG/MAG torches
torches
The relevant signal must rise or fall steeply and then run in a straight line from left to right.
If there are any glitches or pronounced unevenness in the signal, this means the torch is
faulty. In this case, inform After-Sales Service.
Testing a push-
pull motor
42

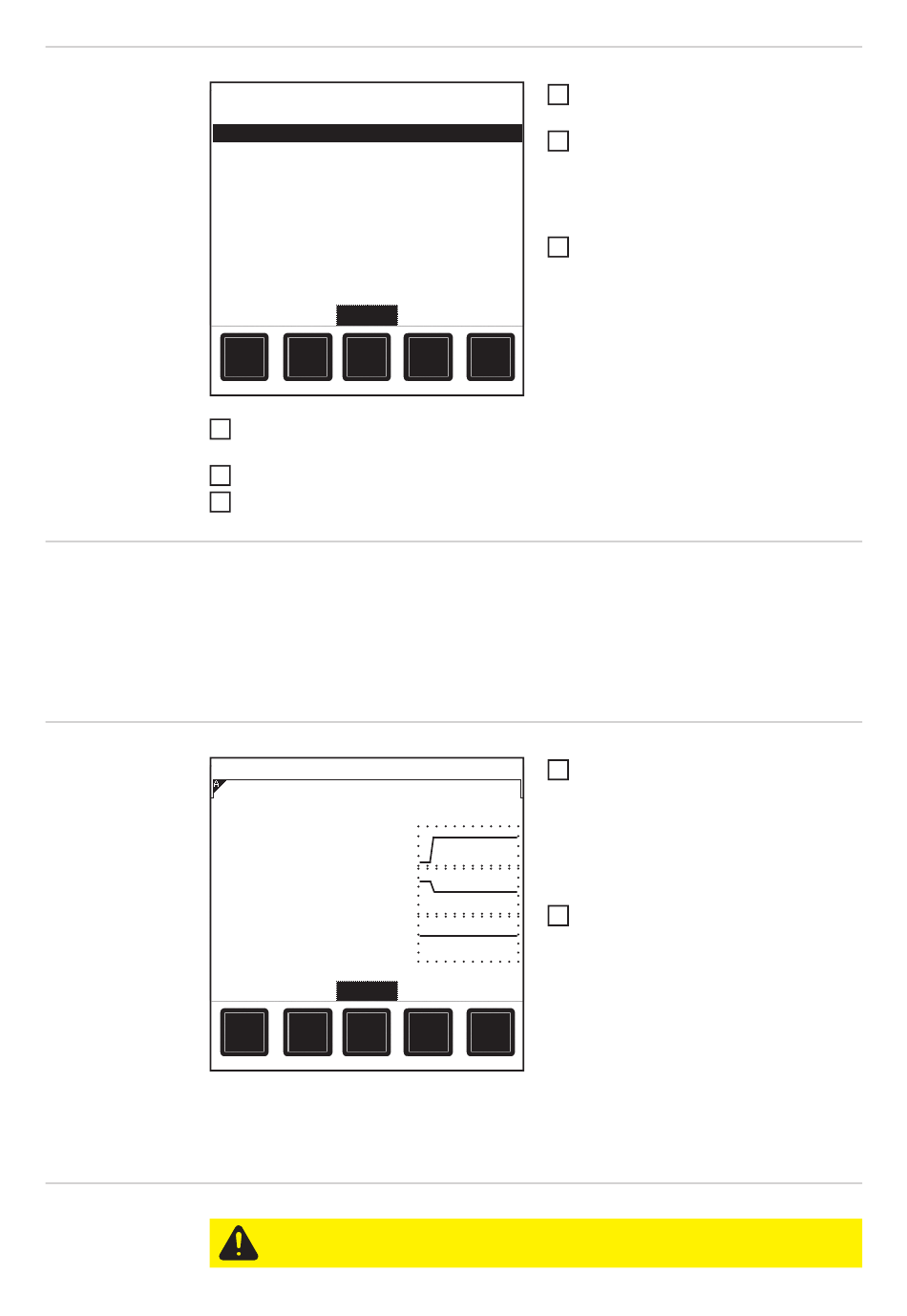

Main menu
MIG/MAG torches
TIG torches
LocalNet devices
Special devices
Info about testbox
Select
Plug the Fronius System Connector (FSC) on the welding torch into the torch connec-
tion on the FSC adapter
Connect the FSC adapter control plug to the MIG/MAG connection on the test box
Connect the FSC adapter LocalNet plug to the MIG/MAG connection on the test box
5 V for an Up/Down torch, and
0 V for a standard welding torch.
MIG/MAG torches
Identification 5.00 V
Guntrigger 4.99 V
Up/Down 2.49 V
PPU potentiometer 2.49 V
Supply 4.89 V, 0.004 A
PPU
CAUTION! Risk of injury from wire electrode emerging at speed. The push-pull
motor test should only be carried out when there is no wire in the welding torch.
Use the adjusting dial to select the
1
MIG/MAG welding torch work area
Press the 'Select' function key
2
- the 'MIG/MAG welding torch'
screen appears:
- the LED above the MIG/MAG
connection lights up
Turn the welding torch selector switch
3
on the FSC adapter to the standard po-
sition
Press the torch buttons and turn the
1
PPU potentiometer
- the relevant parameters will appe-
ar
- if the welding torch button is fully
functional, an acoustic signal will
sound
Press the MENU key to return to the
2
main menu
