Heater Band Installation

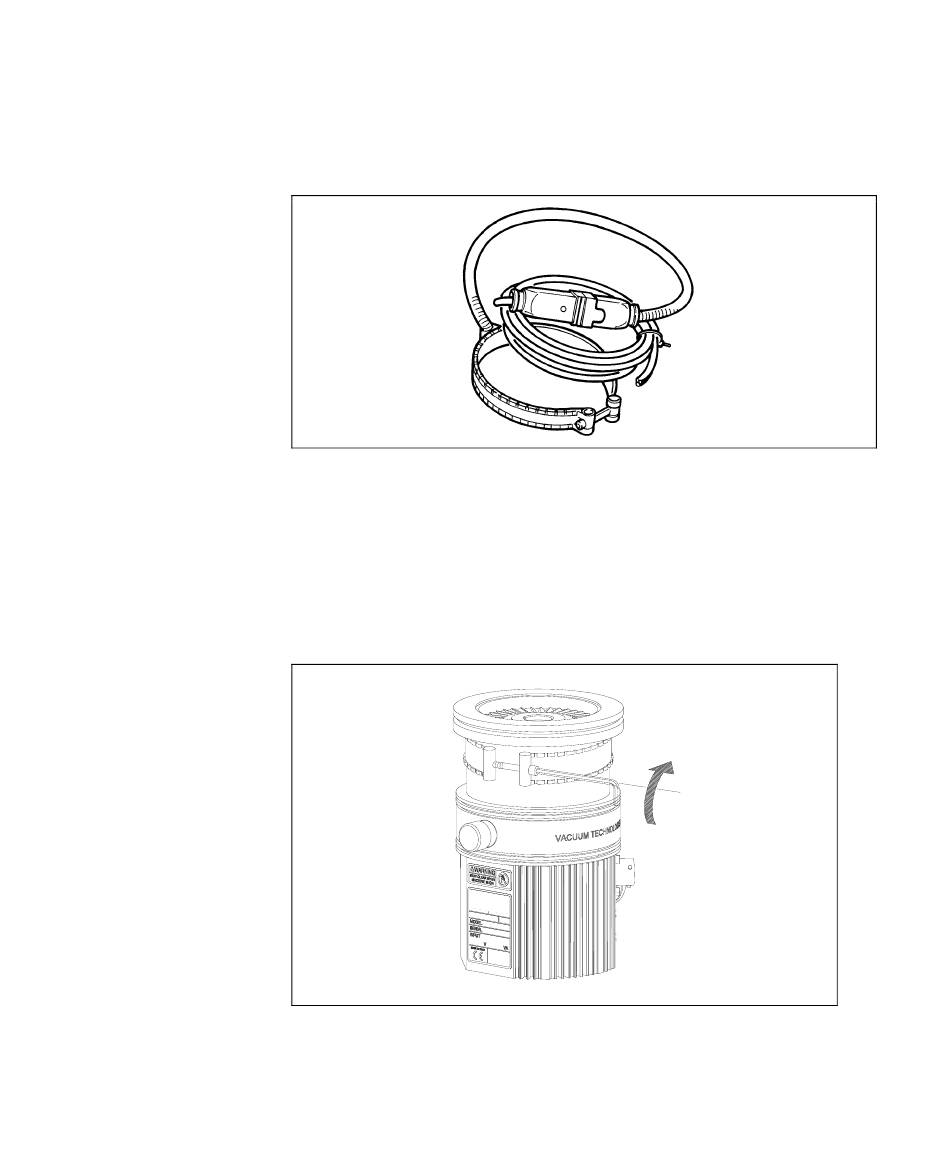

Figure 16
The heater band model 969-9801 and 969-9802 can be used to heat
the pump casing when a bakeout is needed. The heater band is
applied to the upper part of the pump casing, as shown in the figure,
and heats it to a temperature of about 80 °C. The heater band must
be mounted such that there is perfect thermal contact with the pump
wall to obtain fast and efficient heating.
Figure 17
