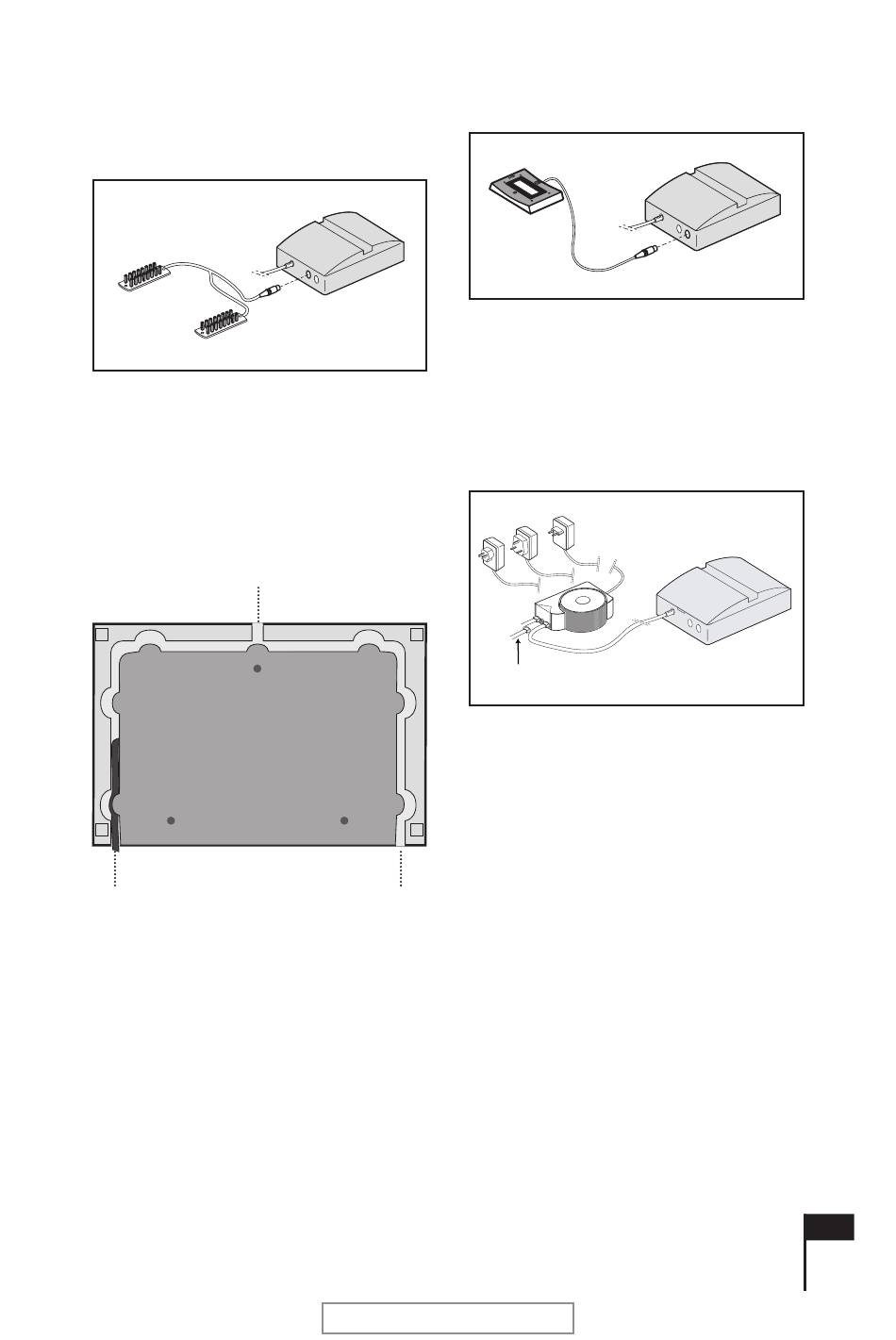

C. Connecting the mattress couplings
fig. 38
Connect the cables of the mattress couplings
to the control box.
Follow the connecting diagram on the
underside of the control box.
D. Connecting the remote control
fig. 39
A
Lead the cable out from the underside of the
remote control.
You have three options. See fig. 39 (A).
2232 BinnenW.pdf - pag.45
A
A
LET OP !!! Lage resolutie!
Connect the cable of the remote control to the
control box.
Follow the instructions on the underside of the
control box.
E. Connecting the power supply
Euro, UK or USA plug
M4 (1 or 2)
The control box of the Ultimate Climate is
connected to the main transformer of the
Auping Royal mesh base.
This transformer has three connection points
to which a maximum of 2 Royal motor control
boxes and 1 Ultimate Climate control box can
be connected.
If there are 2 Ultimate Climates the control box
of the second Ultimate Climate must be
connected to a second, separate transformer.
fig. 40
fig. 41
GB45
August 11, 2006
