EC4S0000

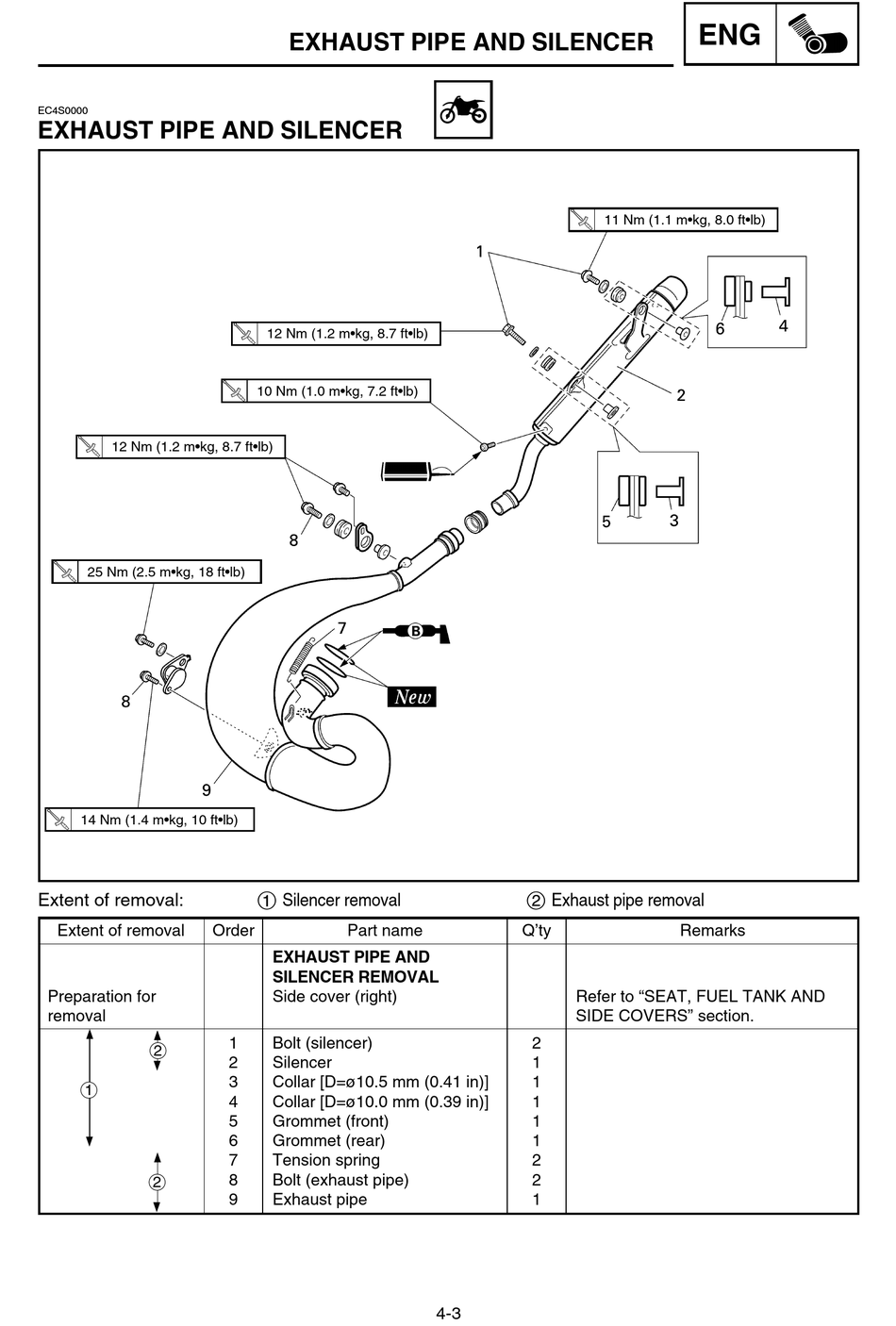

EXHAUST PIPE AND SILENCER

12 Nm (1.2 m•kg, 8.7 ft•lb)
25 Nm (2.5 m•kg, 18 ft•lb)
14 Nm (1.4 m•kg, 10 ft•lb)
Extent of removal:
Extent of removal
Preparation for
removal
2
1
2
EXHAUST PIPE AND SILENCER
12 Nm (1.2 m•kg, 8.7 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
1 Silencer removal
Order Part name
EXHAUST PIPE AND
SILENCER REMOVAL
Side cover (right)
1 Bolt (silencer)
2 Silencer
3 Collar [D=ø10.5 mm (0.41 in)]
4 Collar [D=ø10.0 mm (0.39 in)]
5 Grommet (front)
6 Grommet (rear)
7 Tension spring
8 Bolt (exhaust pipe)
9 Exhaust pipe
11 Nm (1.1 m•kg, 8.0 ft•lb)
2 Exhaust pipe removal
Q'ty
Refer to "SEAT, FUEL TANK AND
SIDE COVERS" section.
2
1
1
1
1
1
2
2
1
4-3
ENG
Remarks
