Installing The Dcs800 Pc Tools On Your Computer - ABB DCS800-Serie Schnellanleitung

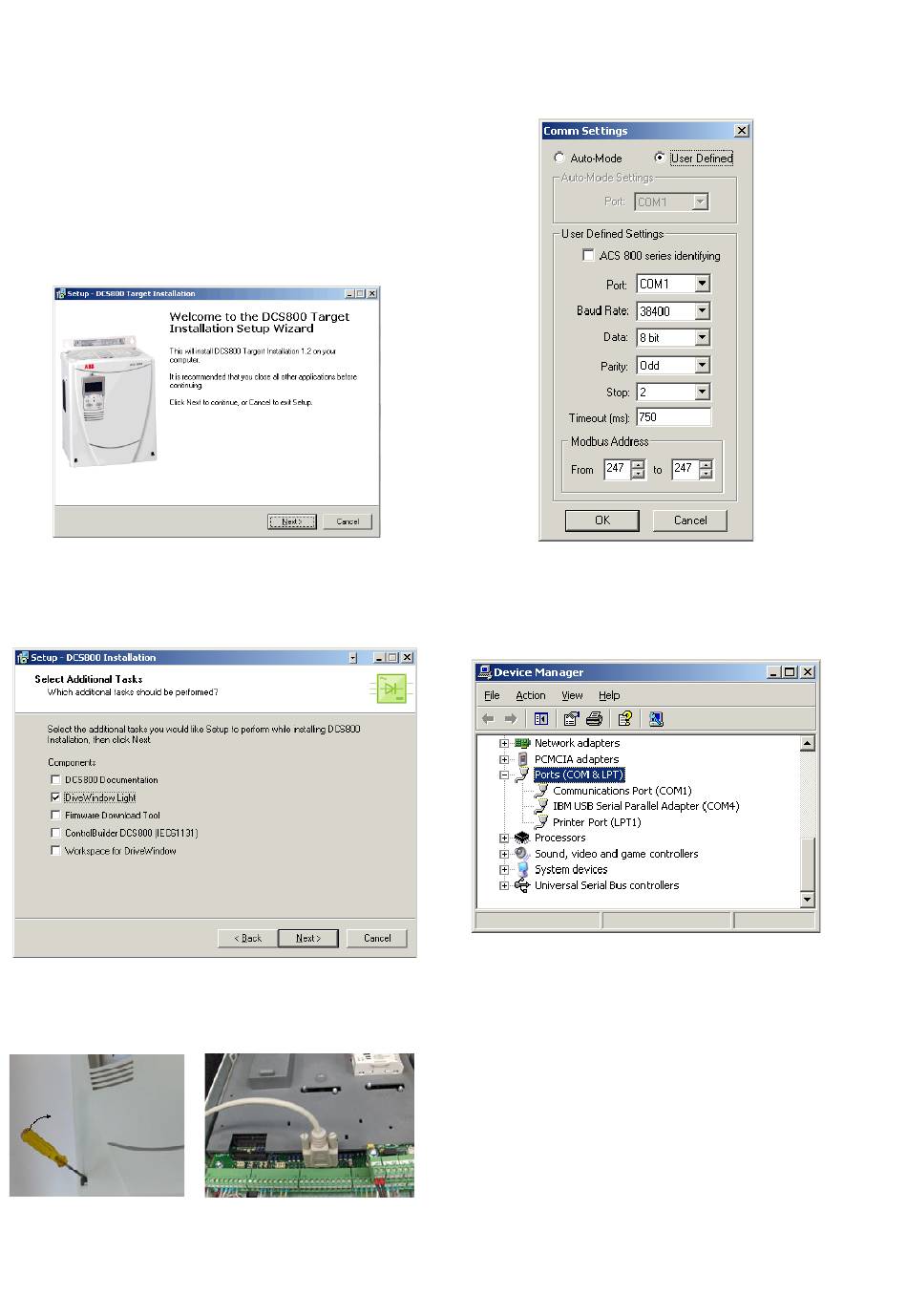

Installing the DCS800 PC tools on Your computer

After inserting the DCS800 CD all programs and documentation
necessary to work with the DCS800 will be automatically installed.
This includes:
1. DriveWindow Light for parameterization, commissioning and
service
. Hitachi FDT . for firmware download
3. Installation CD of DCS800 Drive for e.g. DWL Wizard, ABB
documents
4. CoDeSys for 61131 application programming
Attention:
If You do not want to install a certain program just skip it by using
Cancel at the beginning of the program's wizard.
If the installation routine does not start automatically:
- Go to Start/Run and browse for setup.exe on the CD. Now start
the installation by confirming with OK
- Compact installtion for DriveWindow Light + Commsioning
Wizard + DriveWindow Light AP is reccomended
Steps to connect Drive to PC
• The documentation can be found under
C:\ABB\DCS800\Docu
• Remove design cover from the converter module
Remove the DCS800 Control Panel if
present. Depress the locks to remove
the cover
18
3ADW000191R0500 DCS800 Quick guide edisf e
Connect drive (X34) to your PC COM port
• Start DriveWindow Light PC tool
Check the communication setting of your COM port
If You use USB to COM port interface or PCMCIA / COM ad-
apters double check the active COM enabled
Start => Settings => Control Panel =>
=> Device Manager
COM address of USB interface can change after the next boot
procedure or after disconnecting and reconnecting of the USB
interface.
Note:
PCMCIA to COM Port provide a stable and faster drive interface.
Utilize DriveWindow Light or DCS800 Panel Wizard continue
with chapter Commissioning in this manual.
For commissioning by DriveWindow find a workspace descripti-
on in the DCS800 Firmware manual.
System => Hardware
