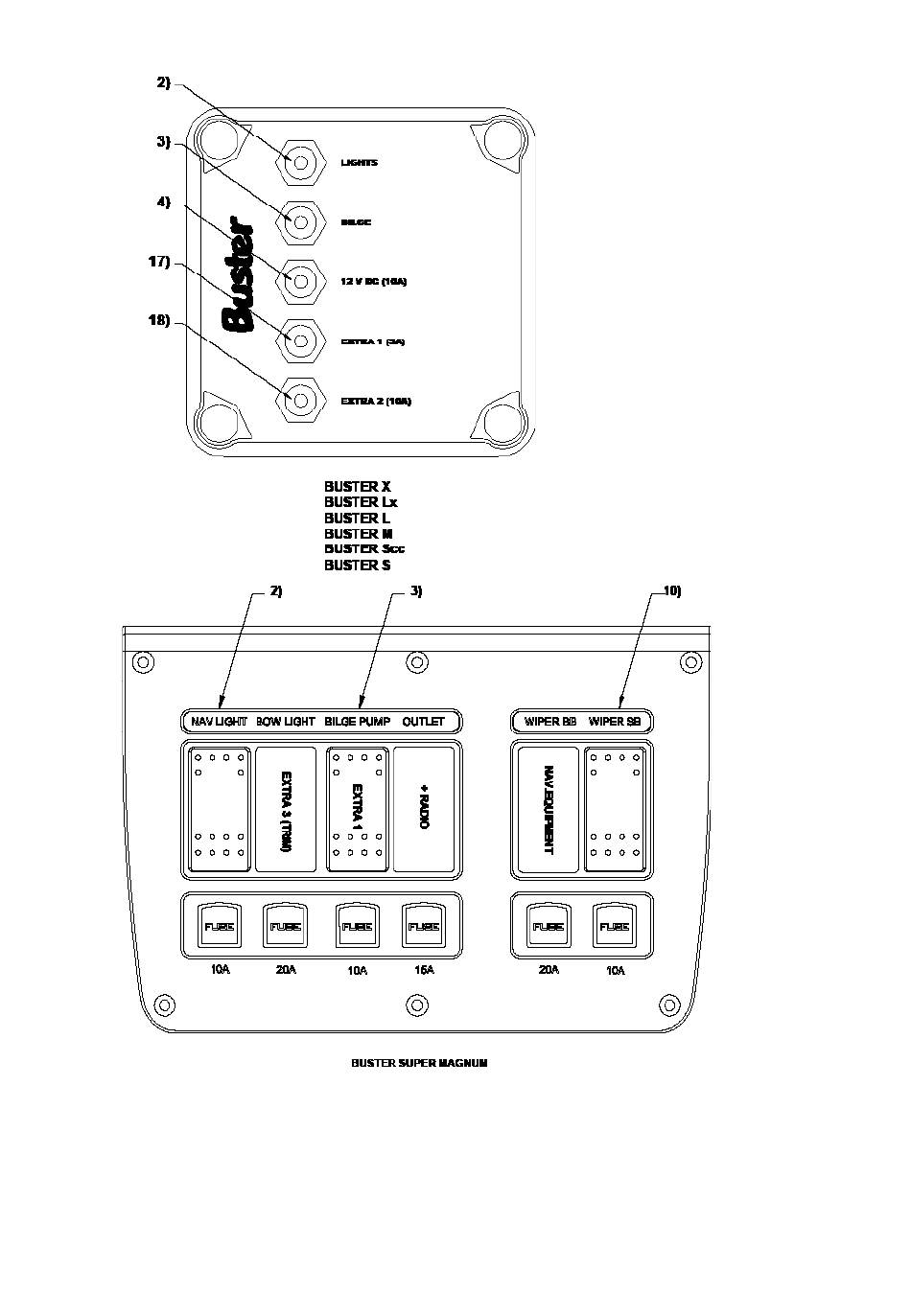

Figure 5. Fuse panel: 1) Main switch, 2) Navigation lights 5 A 3) Bilge pump 5 A 4) Power
outlet 12 V 15 A 5) Navigation system 20 A 6) Trim tabs 20 A 7) Radio memory
current 1 A 8) Deck lights 5 A 9) Cabin interior lights 5 A 10) Windshield wiper 10 A
11) Refrigerator 10 A 12) CD/radio 10 A 13) Extra/bow floodlight 10 A 14) Main
switch – primary battery (starter battery) 15) Current limit relay (charging relay)
16) Main switch – second battery 17) Extra 1 18) Extra 2 19) Heater
