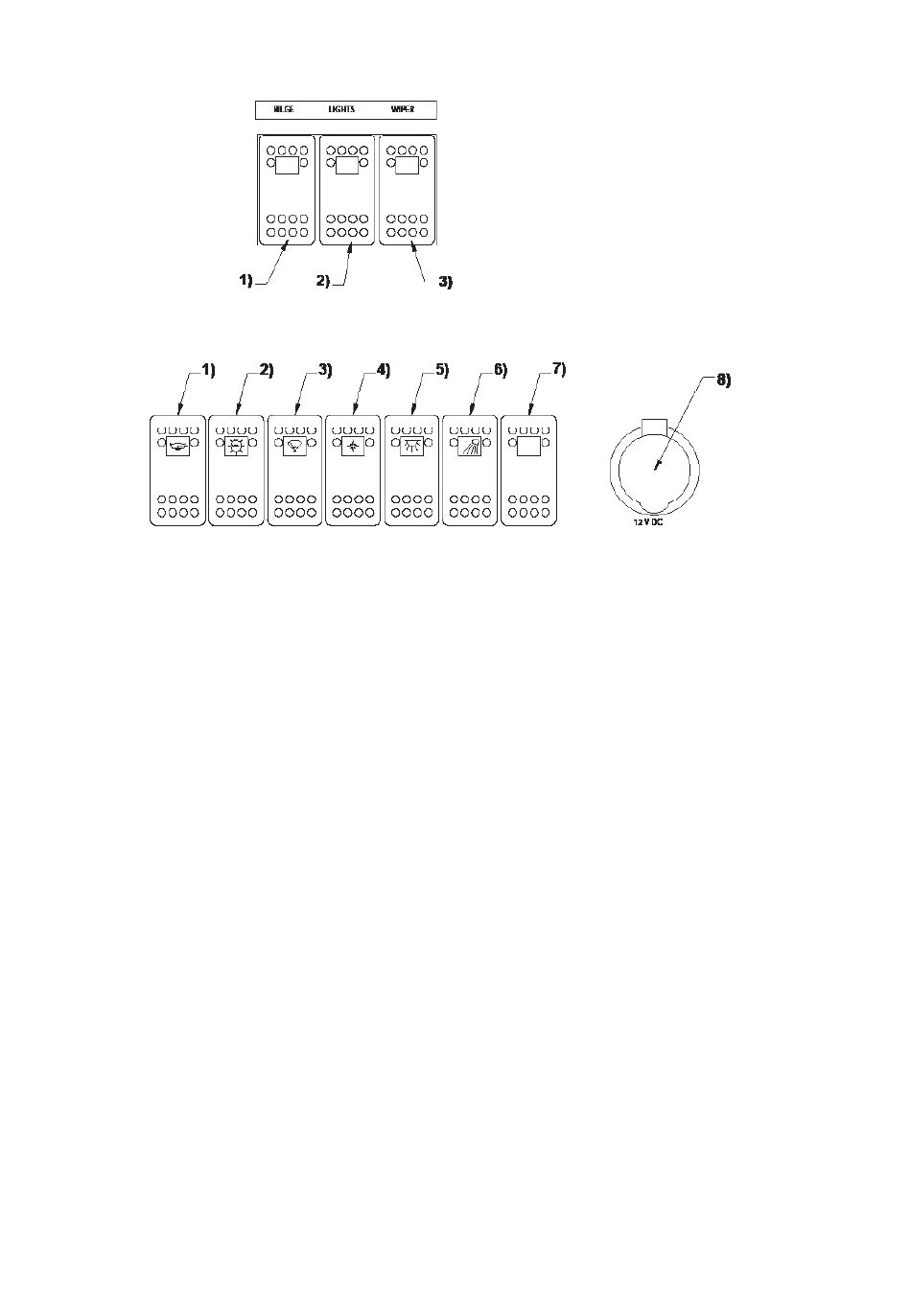

Controls and electronic equipment switches are positioned as shown in Figure 4:
Figure 4.
1) Bilge pump operating switch 2) Navigation lights switch 3) Windshield wiper
operating switch 4) Navigation system main switch 5) Cabin light switch 6) Deck
light switch 7) Extra/unassigned switch and 8) Power outlet (12 V)
Circuit breakers are located in a separate fuse panel next to the battery
compartment. Buster boats are equipped with automatic circuit breakers that
can be reactivated after overload by returning the switch in question to its active
position. The electrical systems of all Buster models have two extra circuits with
circuit breakers (Extra 1 5 A and Extra 2 10 A) for optional accessories that can be
installed later. The terminals of the extra circuits are behind the switch panel on the
steering console.
Buster models Magnum Pro, Super Magnum and Magnum have a separate 20 A
power supply for the navigation system. The navigation circuit has a switch located
in the steering console to prevent any standby power consumption of the navigation
system from depleting the batteries. The power supply of the navigation system is
connected to a separate fuse panel with blade fuses that distributes power to the
various units.
The Buster Magnum has a separate 15 A power supply for optional trim tabs. The
power supply cable of this circuit is located behind the steering console.
Do not replace existing circuit breakers with breakers designed for lower current or
install electrical components that exceed the nominal current of the circuit.
21 (34)
