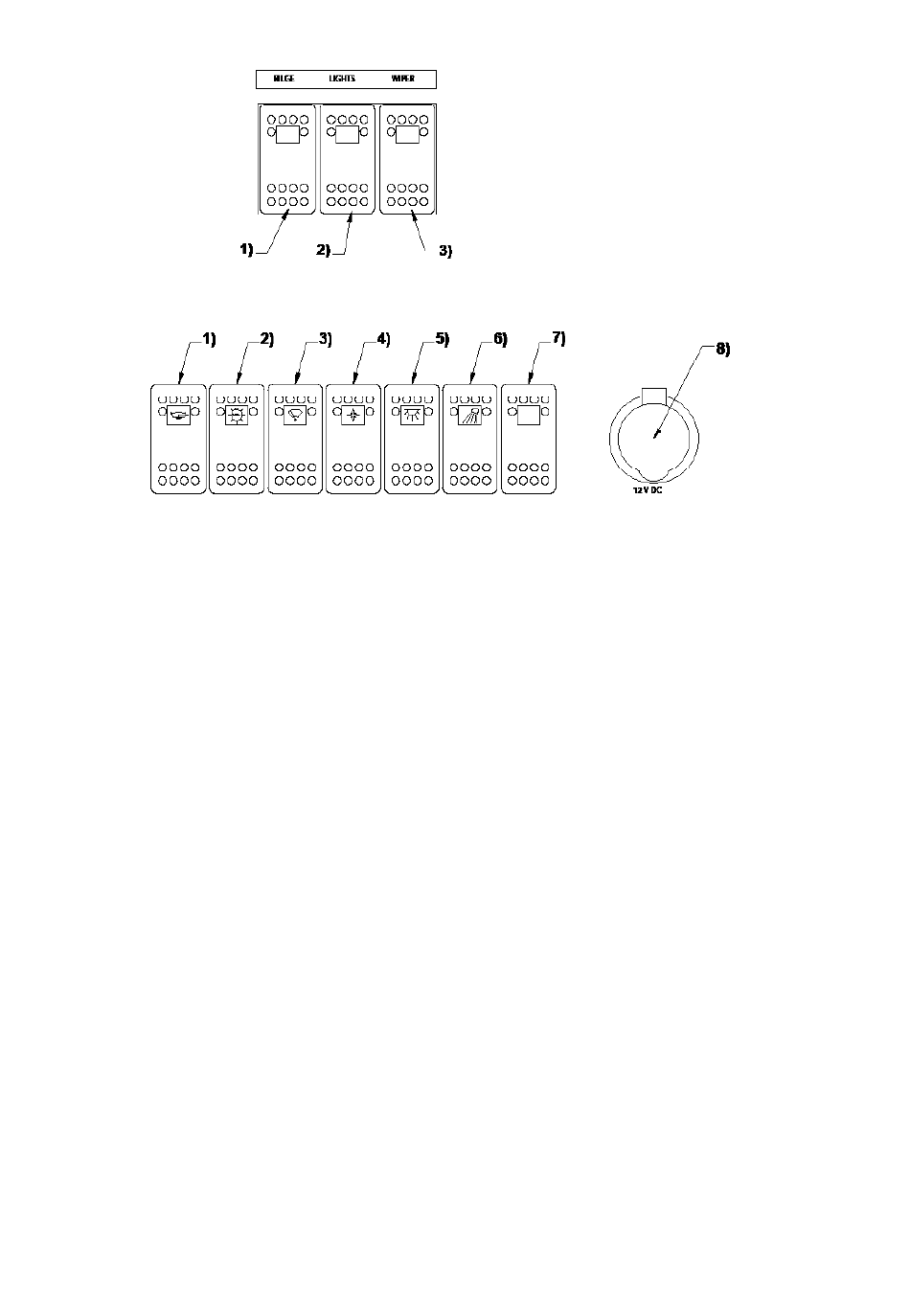

Figure 4 1) Bilge pump operating switch 2) Navigation lights switch
3) Windshield wiper operating switch 4) Navigation system main switch
5) Cabin light switch 6) Deck light switch 7) Extra/unassigned switch
and 8) Power outlet (12 V)
Circuit breakers are located in a separate fuse panel near the battery compartment
or directly in the side of the battery compartment. Buster boats are equipped with
automatic circuit breakers that can be reactivated after overload by returning the
switch in question to its active position. The electrical systems of all Buster models
have two extra circuits with circuit breakers (Extra 1 5 A and Extra 2 10 A) for
optional accessories which can be installed later. The terminals of the extra circuits
are located behind the switch panel in the steering console.
Buster models Magnum Pro, Magnum and Cabin have a separate 20 A power
supply for the navigation system. The navigation circuit has a switch located in
the steering console to prevent the standby power consumption of the navigation
system from depleting the batteries. The navigation system's power supply is
connected to a separate fuse panel with blade fuses that distributes power to the
various units.
Buster models Magnum Pro, Magnum, Cabin and XXL have a separate 15 A power
supply for optional trim tabs. The power supply cable of this circuit is located behind
the steering console.
The Buster Cabin has a separate power supply with an individual fuse for a fuel-
burning cabin heater. This circuit bypasses the main power switch. The power
supply cable of this circuit is located behind the steering console.
Do not replace existing circuit breakers with breakers designed for lower current or
install electrical components that exceed the nominal current of the circuit.
