Scanner Options, Maintenance and Troubleshooting

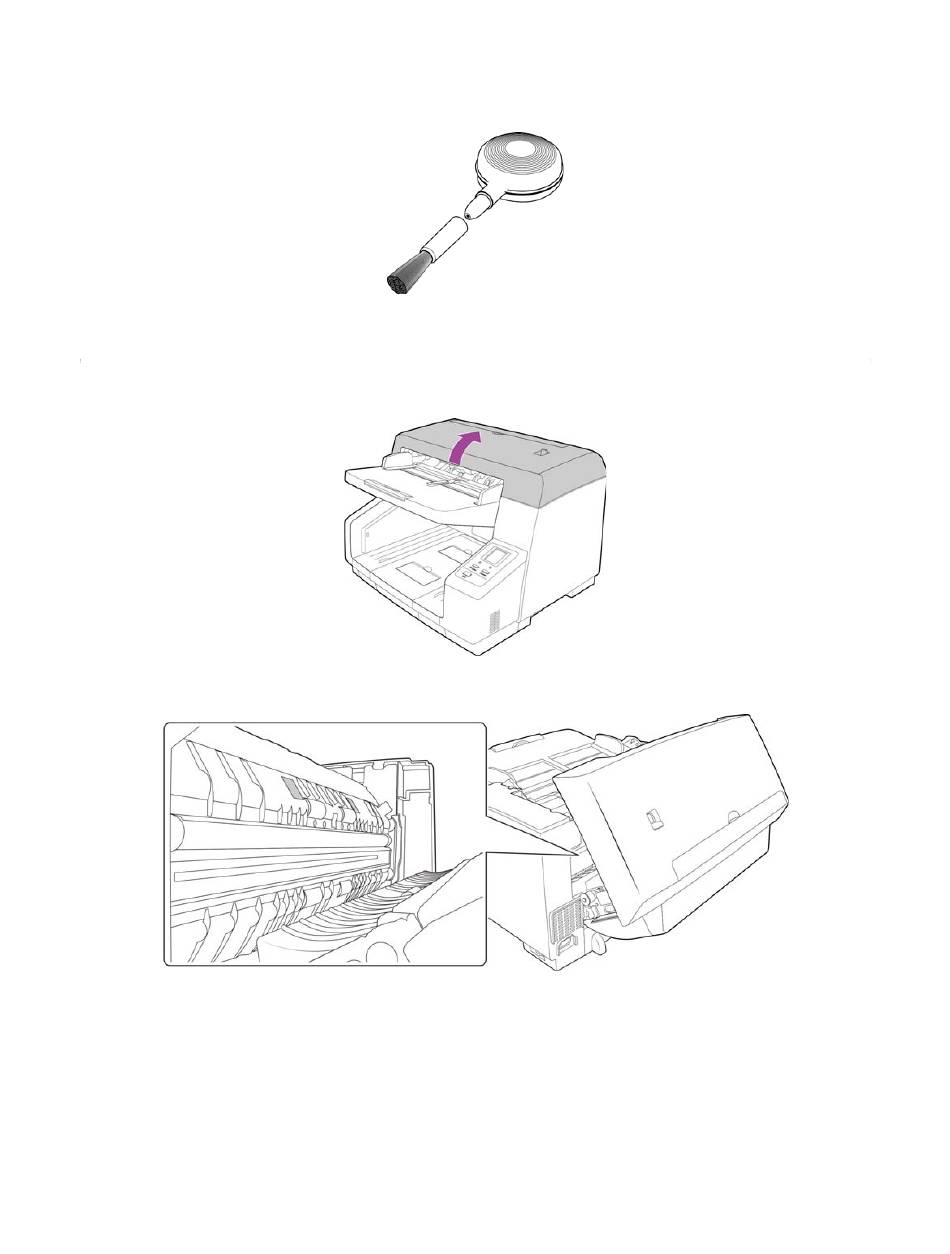

• Remove the brush tip from the Blower Brush and set it aside, you will be using only the blower to clean the
sensors.

Cleaning the ADF Sensors

1. Pull on the scanner cover release and lift the lid to open the scanner.
2. The following illustration shows the location of the sensors in the scanner.
9-174
