Scanner Setup

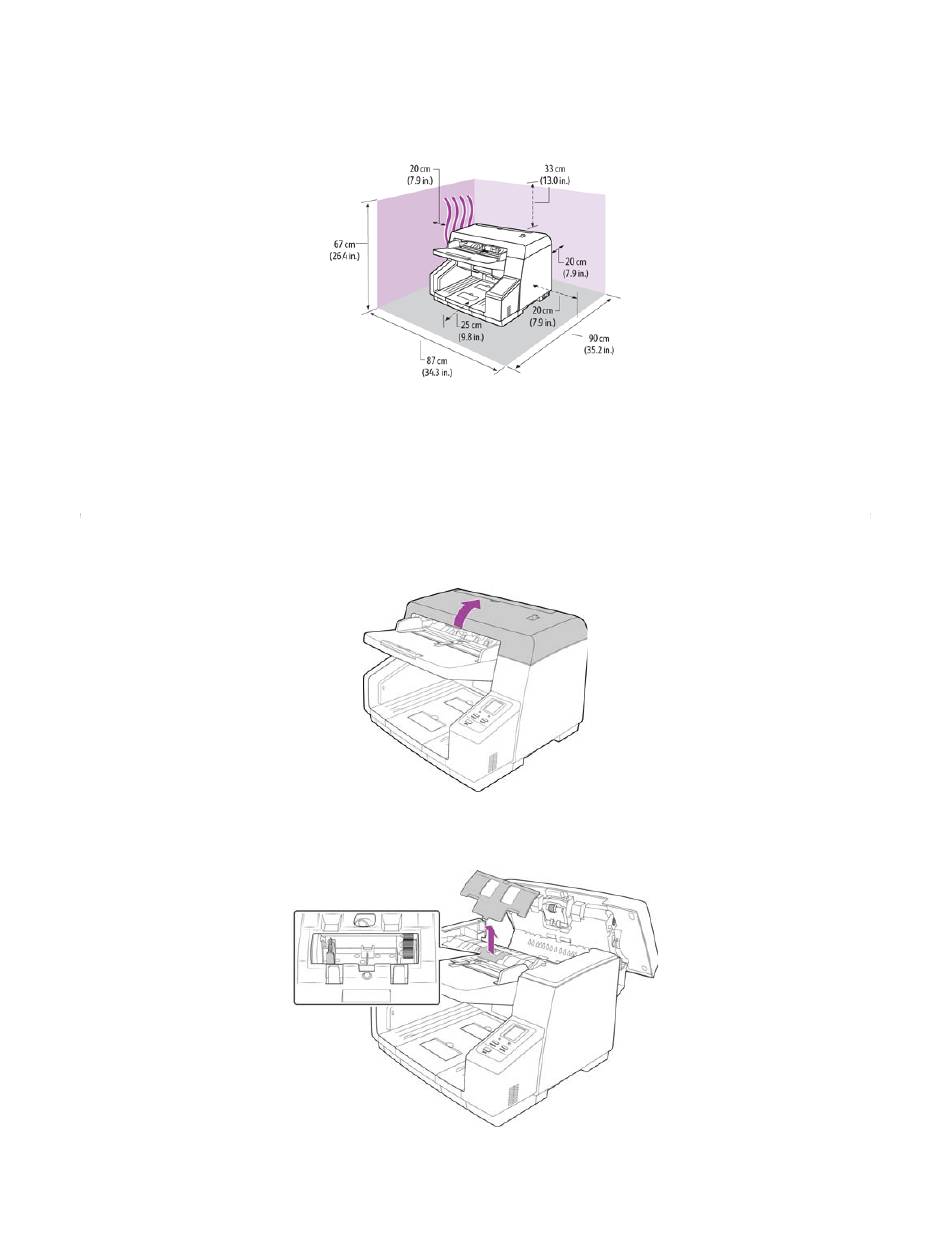

4. Place the scanner on a level surface near the computer.
Keep at least 15 inches of space on every side of the scanner for the input and exit tray extensions,
performing maintenance, and to have sufficient air flow for ventilation.
5. Remove all shipping tape from the top and side of the scanner.

Install the Double Feed Prevention roller

1. Pull on the scanner cover release and lift the lid to open the scanner.
2. Pull up on the double feed prevention roller cover and remove it from the scanner. Set the cover aside and
make sure nothing is set on the cover as it will break.
