Replacing the Feed Roller Module

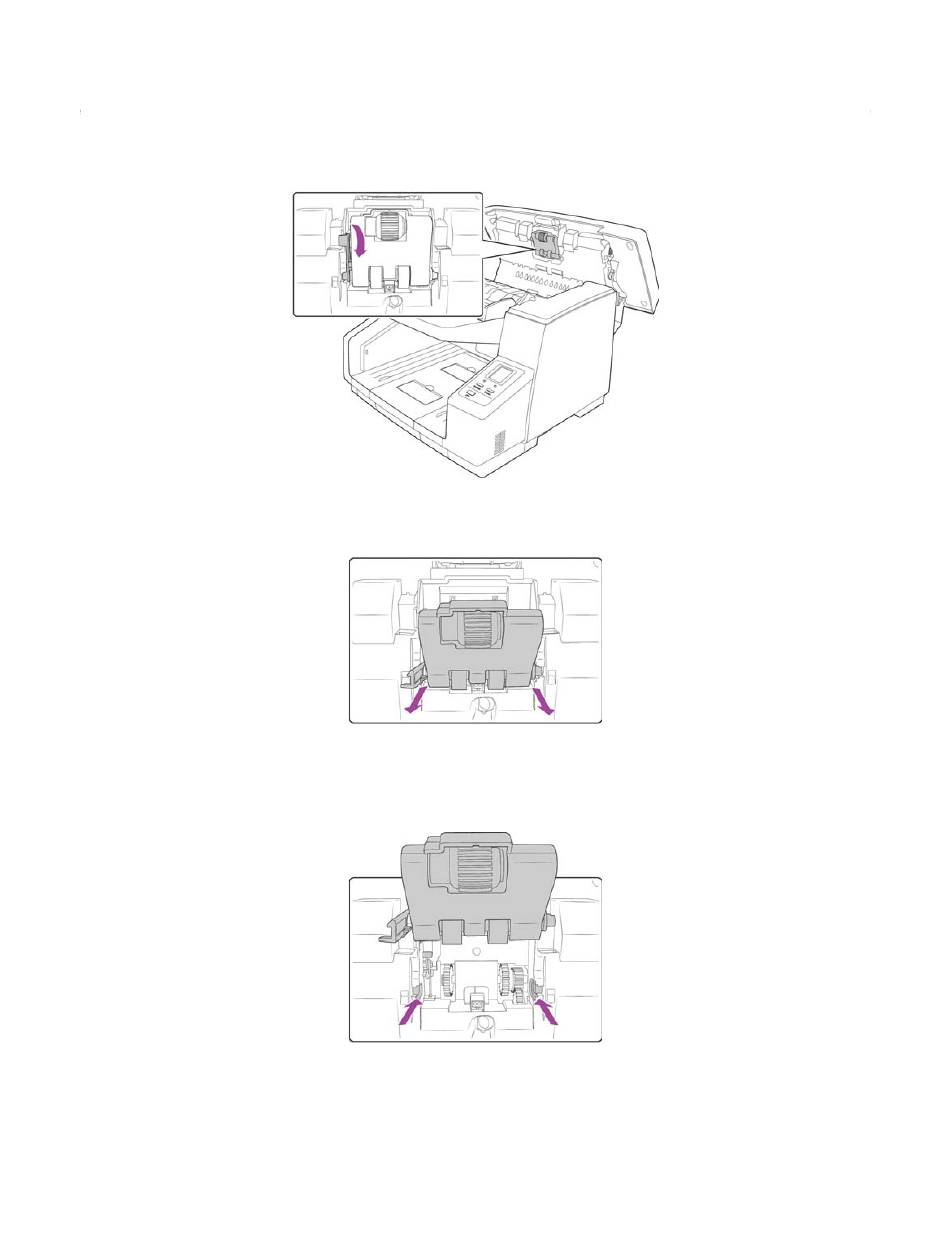

1. Pull the locking lever on the left side of the feed roller module down from the scanner. This releases the roller
module from the scanner.
2. Carefully remove the roller module from the scanner. Discard the roller module, it cannot be repaired or
reused.
3. Take the new roller module out of its packaging.
4. Align the end of the plastic end on the right side of the roller module with the slot in the roller compartment.
Make sure the flat side of the roller tip is aligned properly with the slot in the scanner.
