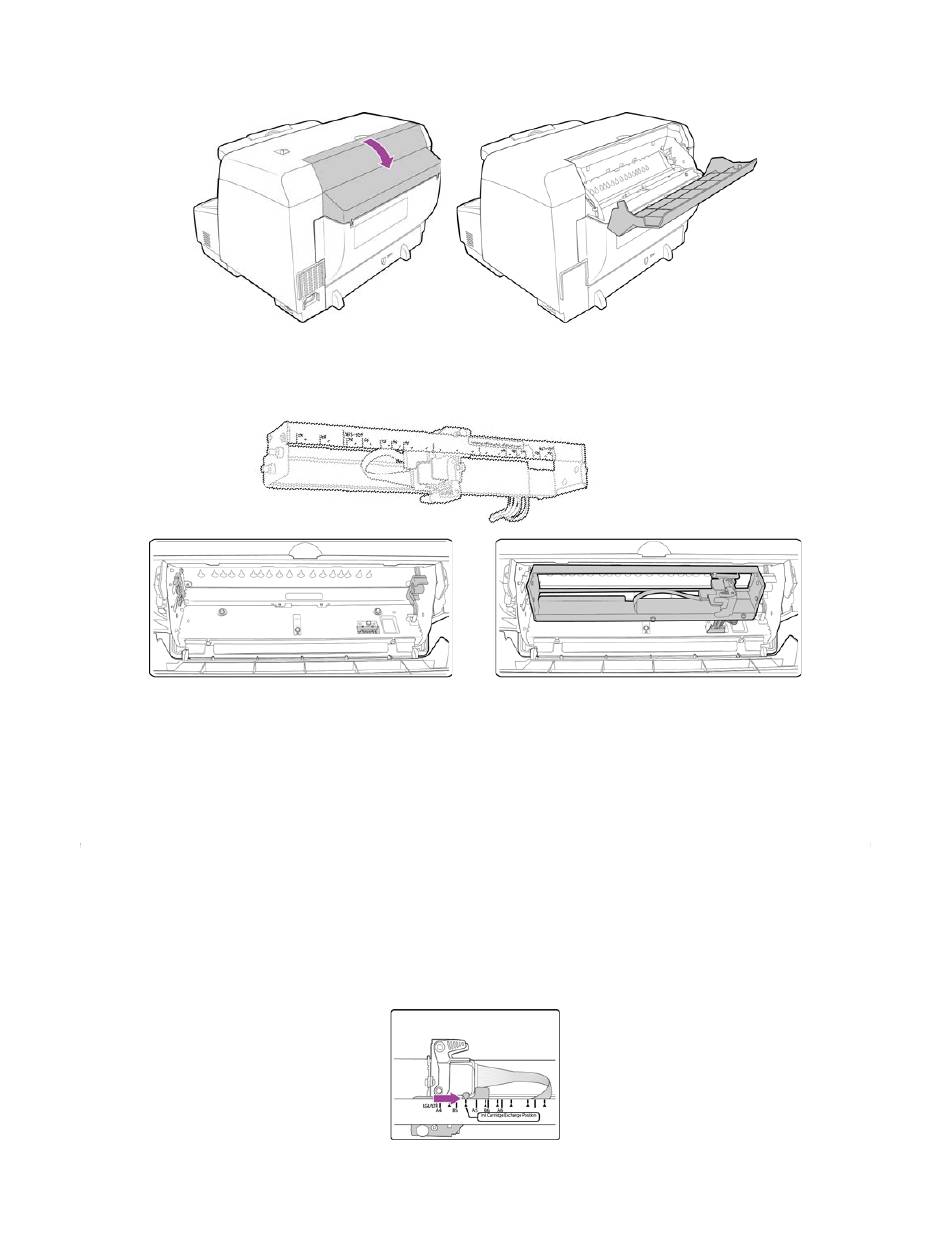

2. Open the pre-imprinter door.
3. Insert the pins on the right side of the imprinter unit into the holes on the scanner. Angle the imprinter down
into the scanner until the pins on the left side line up with the slots in the scanner. Gently press down on the
imprinter unit until it clicks in place.
4. Connect the cable to the connection port in the scanner.
5. Close the pre-imprinter door when you are finished.

Installing an Ink Cartridge

1. Turn off the scanner.
2. Open the imprinter door.
3. Remove the protective tape from the ink cartridge.
4. Move the ink cartridge carriage to the ink cartridge exchange position on the imprinter unit.
