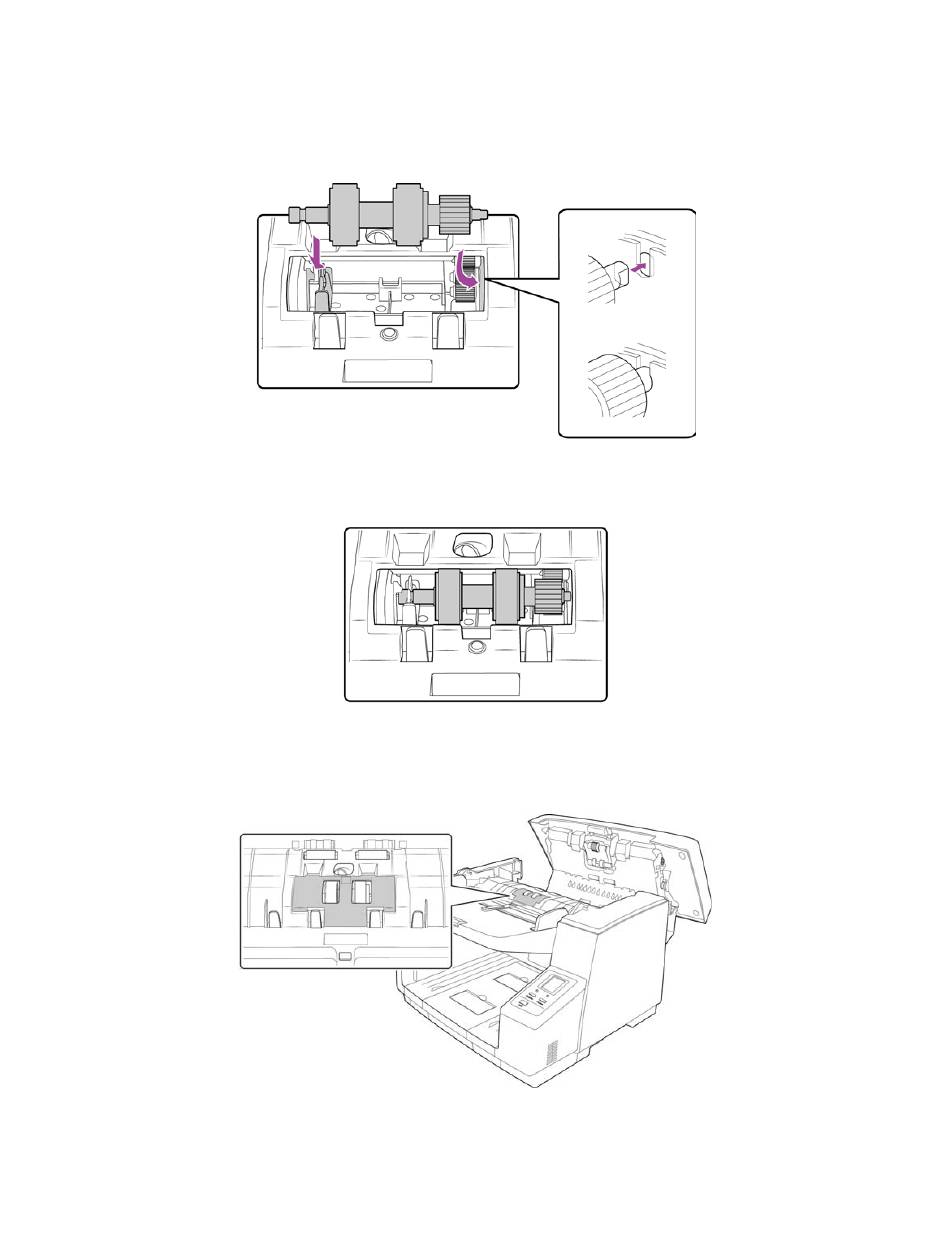

3. Align the plastic gear end on the right side of the roller with the gears in the roller compartment. Make sure
the flat side of the roller tip is aligned properly with the slot in the scanner.
Carefully insert the gear end into the scanner and angle the roller down into the left side of the
compartment.
4. Press gently on the metal bar on the left side to lock the roller in place with the black tab in the
compartment.
5. Place the roller compartment cover in the scanner and lower it into place.
6. Press gently on the compartment cover to lock in the scanner. Make sure this cover is fully closed as it may
break and cause damage to the scanner if it is not properly in place.
