Buzzer Setting; Shading Adjustment - Xerox DocuMate 4790 Benutzerhandbuch

Scanner Options, Maintenance and Troubleshooting

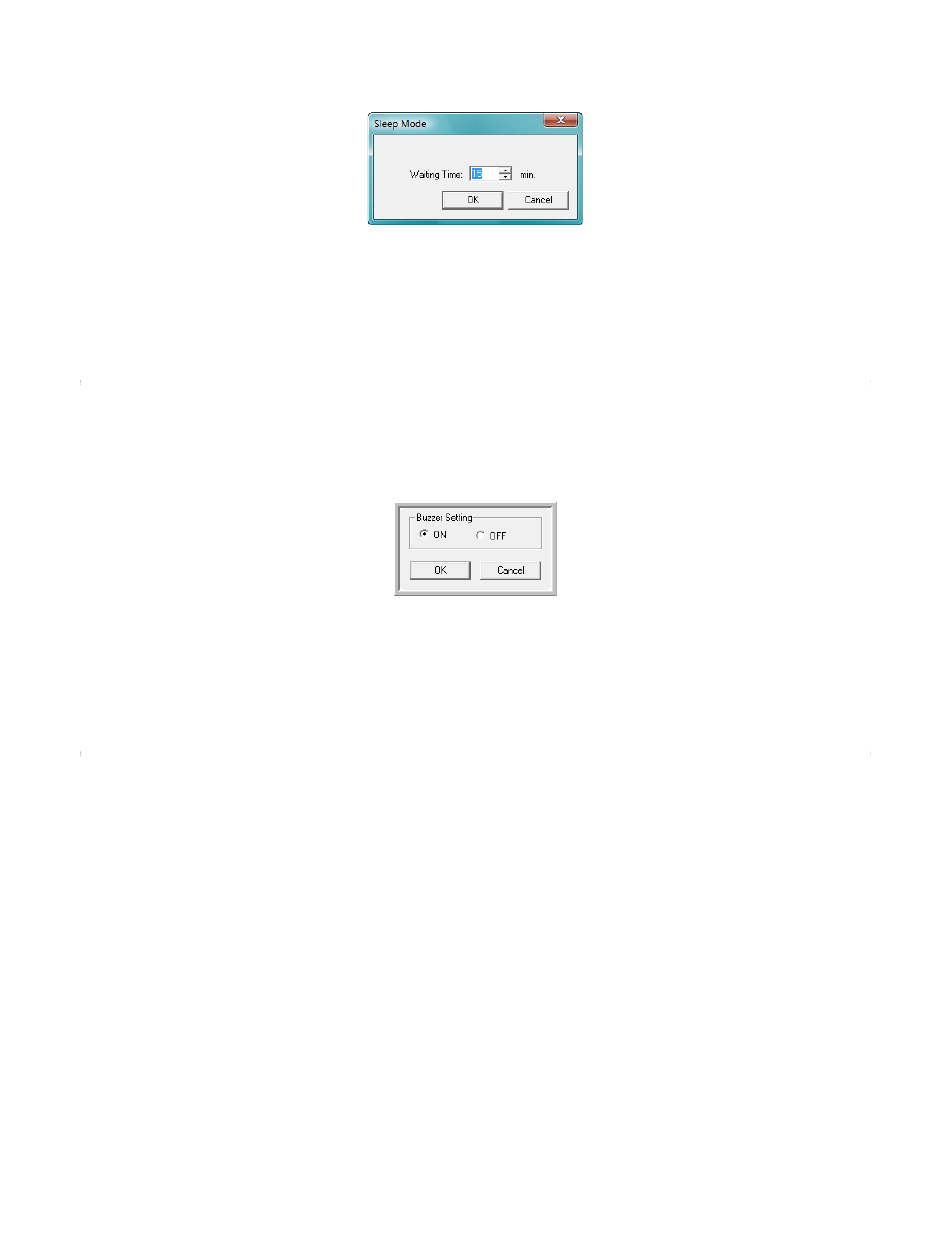

3. When the Sleep Mode window opens, select the options you want.
Waiting Time—you can click the up or down arrows to change the Sleep Mode time from 1 to 60 minutes, or
you can type a numerical value in the text box between 1 and 60.
4. Click OK to save the changes and close the Sleep Mode window.

Buzzer Setting

1. Open the scanner User Utility application.
2. On the main window click on the Buzzer Setting... button.
3. When the Buzzer Setting window opens, select the option you want.
Buzzer Setting—click on either On or Off to set the scanner alert sounds. Scanner alert sounds include
double-page-feed detection, paper jam error, lamp errors, etc...
4. Click on OK to save the changes and close the window.

Shading Adjustment

The shading adjustment is used to improve the image quality of the scanned documents. If your final scanned
files are of poor quality, such as perpendicular lines or the image clarity is uneven across the page, you may need
to perform a shading adjustment on the scanner.
To prepare for shading adjustment:
• Clean the scanner rollers, image sensors, glass and reference plates, as described in the section
Inside of the Scanner
• After cleaning the scanner, do a test scan and view the final image file. Do not perform a shading
adjustment until after you clean the scanner and test scan. A shading adjustment performed before cleaning
the scanner may result in degraded image quality.
• Have the Shading Paper, provided with your scanner, ready as the software will tell you when to insert it into
the scanner.
9-166
Xerox ® DocuMate
User's Guide
on page 170.
® 4790
Cleaning the
