The SET key is only for leaving the current menu and is not nec-
essary for saving the changes made. Only in particular cases
described in the following paragraphs are some values updated
by pressing "SET" or "MODE".
Warning leds
• Power
White led. Lit with a fixed light when the machine is powered. Blink-
ing when the machine is disabled.
• Alarm
Red led. Lit with a fixed light when the machine is blocked by an
error.
Menus
The complete structure of all the menus and of all the items of which they
are composed is shown in Table 3.
Access to the menus
The various menus can be accessed from the main menu in two ways:
1 - Direct access with a combination of keys.
2 - Access by name with a drop-down menu.
4.1 Direct Access with a Combination of Keys
The desired menu can be accessed directly by pressing simultaneously
the appropriate combination of keys for the required time (for example
MODE SET to enter the Setpoint menu) and the various items in the menu
are scrolled with the MODE key.
Table 2 shows the menus that can be reached with the combinations of
keys.

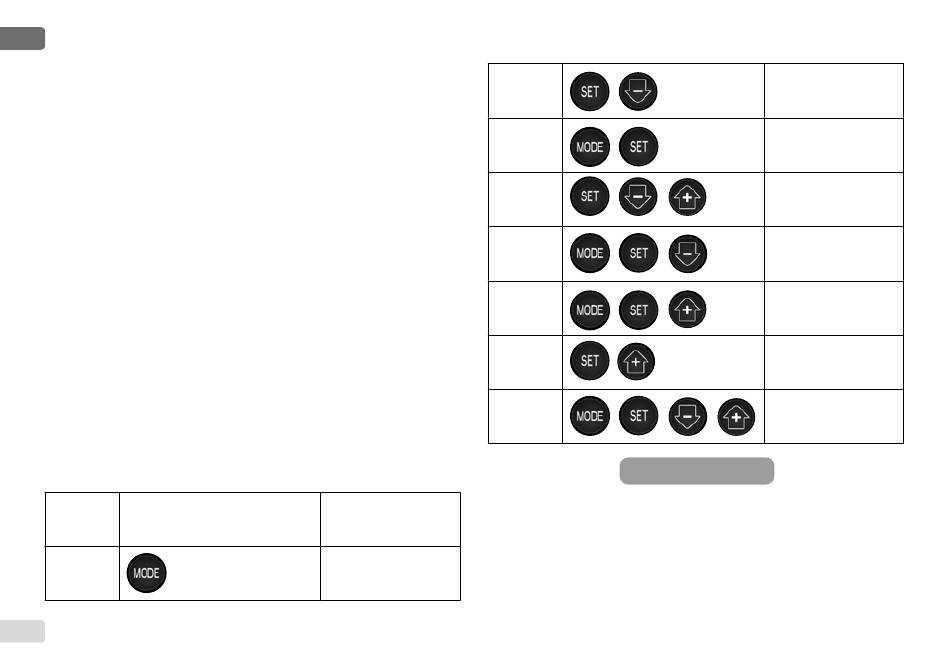

MENU NAME DIRECT ACCESS KEYS
User
51
Monitor
Setpoint
Manual
Installer
Technical
assistance
Reset factory
values
Reset
HOLD-DOWN TIME
On releasing the button
2 Sec
2 Sec
5 Sec
5 Sec
5 Sec
2 sec after switching on
appliance
2 Sec
Table 2: Access to the menus
