Care and maintenance

General

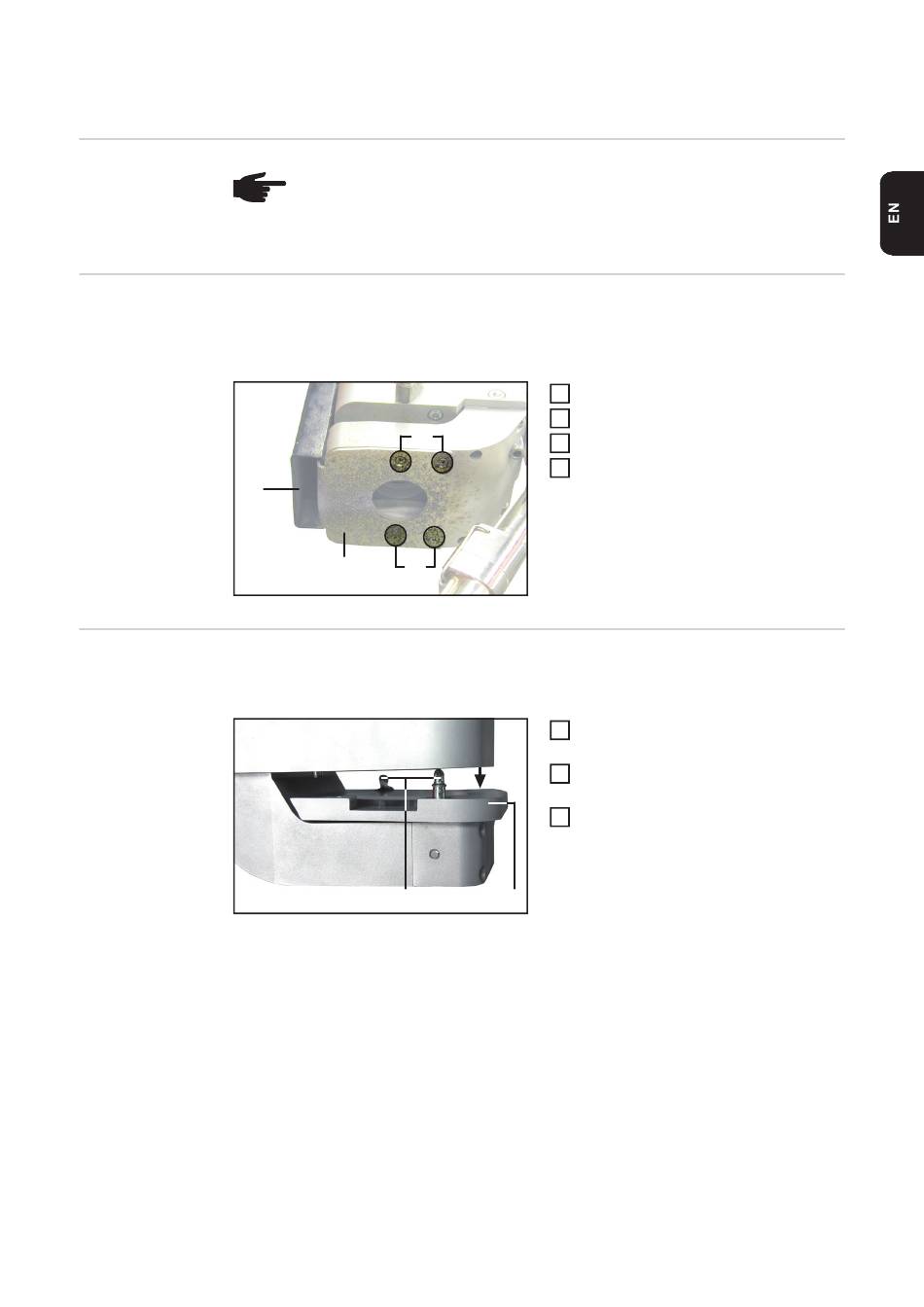

Cleaning/replac- The spatter guard is located beneath the protective glass for the laser optics system and
ing the spatter protects it from premature soiling.
guard If there are clearly visible deposits of welding spatter, clean or replace the spatter guard.
(3)
Cleaning/replac- The protective glass is located beneath the laser optics system and protects it from soiling.
ing the protective If there is clearly visible soiling, clean or replace the protective glass.
glass
NOTE! If the spatter guard and the protective glass often become dirty because
of the welding fumes, we recommend using the additional extractor.
For more information on how to connect the additional extractor, please refer to
the section headed "Connection specification".
(1)
(2) (1)
(2)
Undo the fastening screws (1)
1
Remove the spatter guard (2)
2
Clean or replace the spatter guard (2)
3
Re-fit the spatter guard (2) using the
4
fastening screws (1)
Hold the protective-glass holder (1)
1
firmly
Turn each of the fastening screws (2) a
2
quarter of a turn to the left
Remove the protective-glass holder (1)
3
(1)
