Adjusting the z-
axis
Setting the change of position in the z direction
72
Remove the housing cover from the LaserHybrid head
1
Undo the fixing screws (3)
2
(Figure: Fixing screws for the coordinate axes)
Make the desired position adjustment using the adjusting
3
screw, as shown in the figure
A quarter turn corresponds to an adjustment distance of 0.25
mm.
A full turn corresponds to an adjustment distance of 1 mm.
Adjustment range ... +6/-1 mm
Reading accuracy using vernier ... 0.1 mm
Tighten the fixing screws (3)
4
(Figure: Fixing screws for the coordinate axes)
Fit the housing cover
5
Remove the housing cover from the LaserHybrid head
1
Undo the fixing screws (1) and (2)
2
(Figure: Fixing screws for the coordinate axes)
Make the desired position adjustment using the adjusting
3
screw, as shown in the figure
A quarter turn corresponds to an adjustment distance of 0.25
mm.
A full turn corresponds to an adjustment distance of 1 mm.
Adjustment range ... +10/-20 mm
Reading accuracy using vernier ... 0.1 mm
Tighten the fixing screws (1) and (2)
4
(Figure: Fixing screws for the coordinate axes)
Fit the housing cover
5

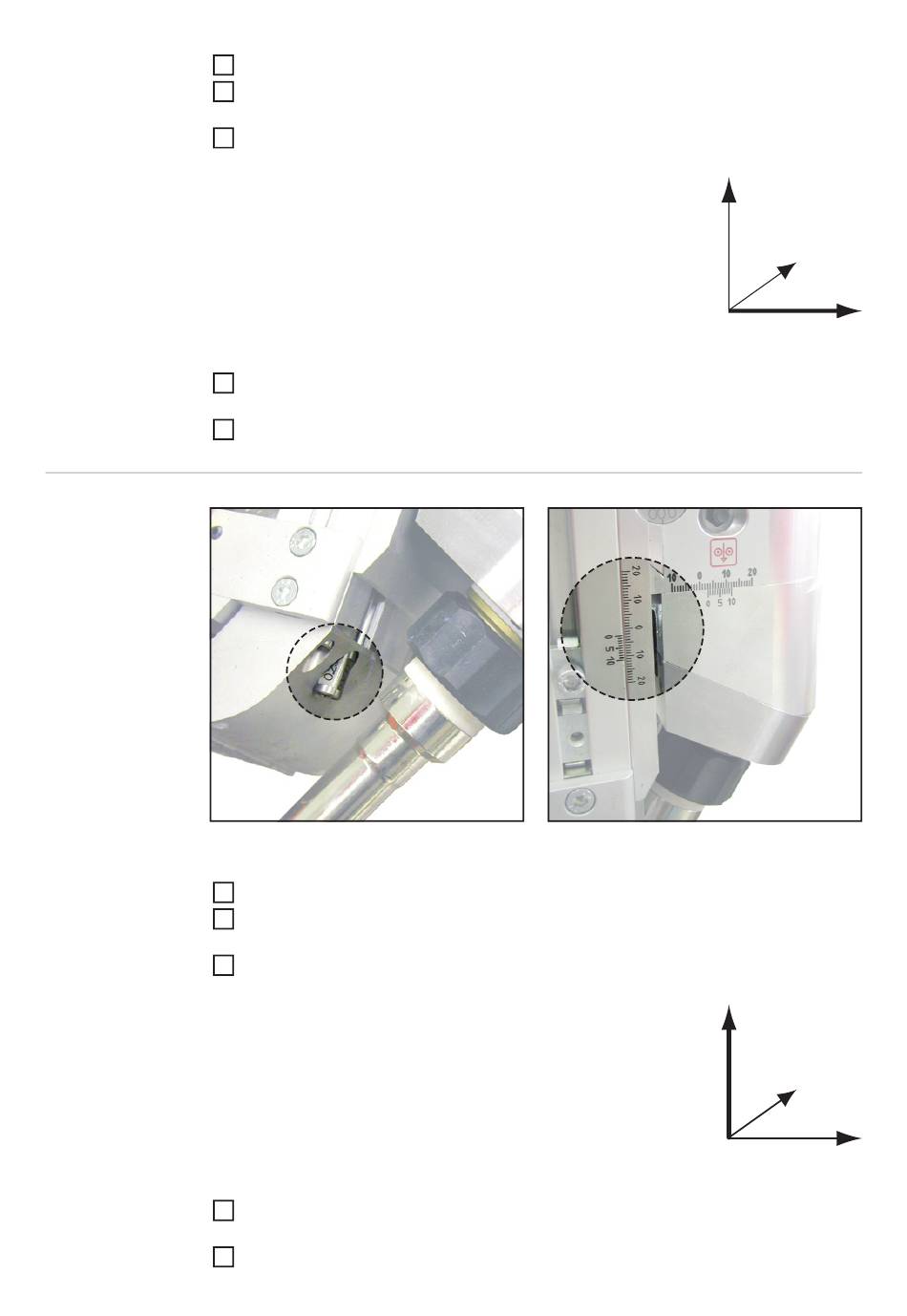

Reading the change of position in the z direction
y
z
