Procom DZL 363 with Promass 63

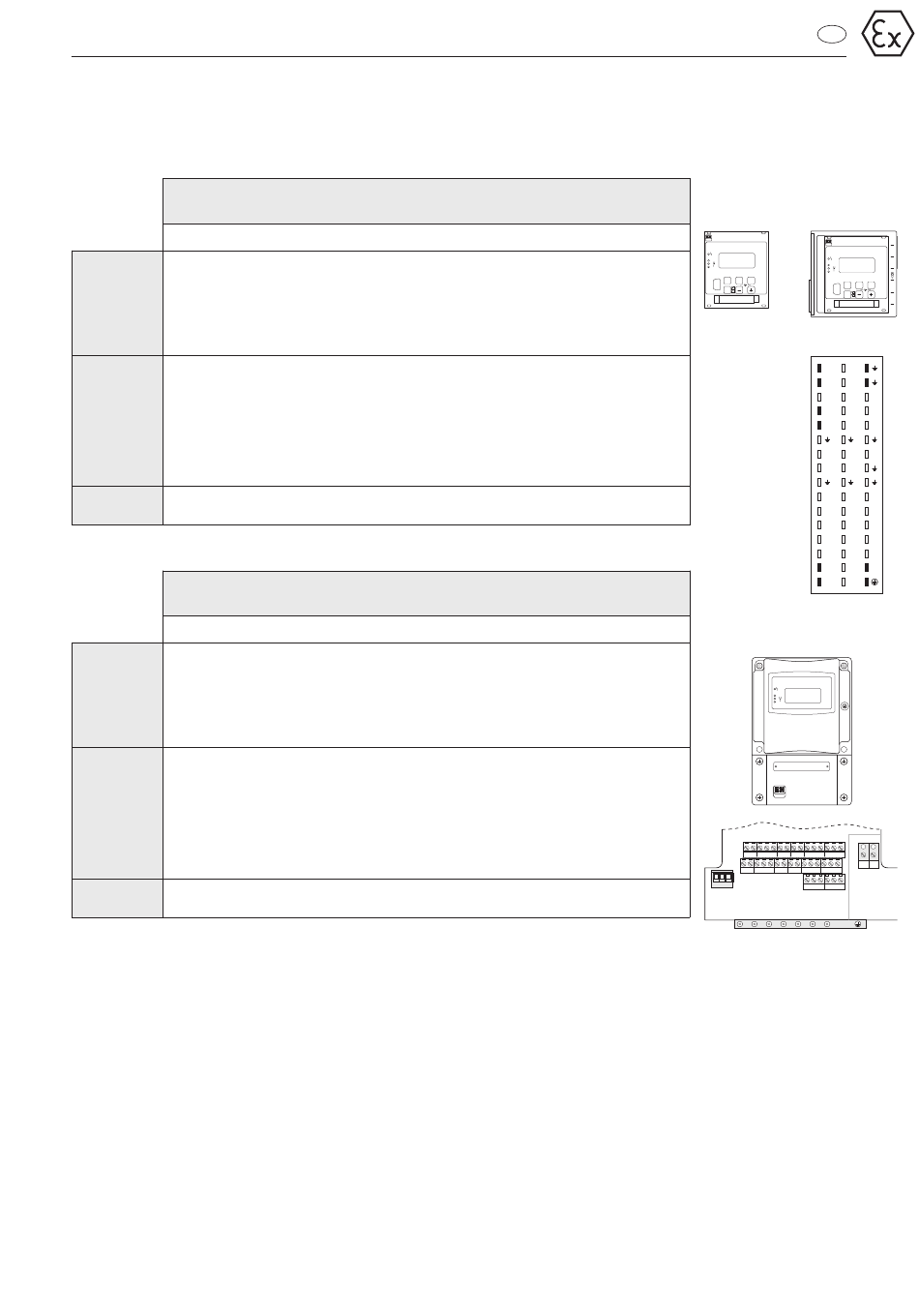

Electrical data

Procom DZL 363 with DoS interface to Promass 63
(Procom DZL 363-*5****)
Racksyst-/ Voltage:
panel mounted AC 85...260 V
housing:
d30 / z30 / d32 L1: d30 or 2
N: d32 or 3
Field housing:
1 / 2 / 3 Power consumption:
Racksyst-/ Corresponds with Promass 63
panel mounted Terminal 20 (DoS+; A data)
housing: Terminal 21 (DoS-; B data)
d8 (DoS+)
d10 (DoS-) (see next page)
Field housing:
80 (DoS+)
81 (DoS-)
z2 / z4 Ground connection (at least two of the ground terminals must be connected to safety ground).
z16 / z32
Procom DZL 363 with Dx interface to Promass 63
(Procom DZL 363-*0****)
Racksyst-/ Voltage:
panel mounted AC 85...260 V
housing:
d30 / z30 / d32 L1: d30 or 2
N: d32 or 3
Field housing:
1 / 2 / 3 Power consumption:
Racksyst-/ Corresponds with Promass 63
panel mounted Terminal 22 (Dx+; A data)
housing: Terminal 23 (Dx-; B data)
d2 (Dx+)
d4 (Dx-) (see next page)
Field housing:
80 (Dx+)
81 (Dx-)
z2 / z4 Ground connection (at least two of the ground terminals must be connected to safety ground).
z16 / z32
Endress+Hauser
Functional values
AC 20...55 V or DC 20...62 V
L+: d32 or 3
L-: z30 or 1
35 VA / 35 W
Functional values
AC 20...55 V or DC 20...62 V
L+: d32 or 3
L-: z30 or 1
35 VA / 35 W
en
Racksyst and
panel mounted housing
ENDRESS+HAUSER
PROCOM DZL 363
ENDRESS+HAUSER
PROCOM DZL 363
1
2
1
3
2
3
F3
F1 F2
F1 F2 F3
E
>3s E
>3s
Mains board
d2
Dx version
d4
d8
DoS version
d10
L1
L-
N
L1+
Field housing
(valid for all three versions)
PROCOM DZL 363
1
2
3
20 22 30 32 34 40 42 50 52 60 63 66 70 73 76
80 81
21 23 31 33 35 41 43 51 53 61 64 67 71 74 77
62 65 68 72 75 78
1 2 3
Terminal compartment
