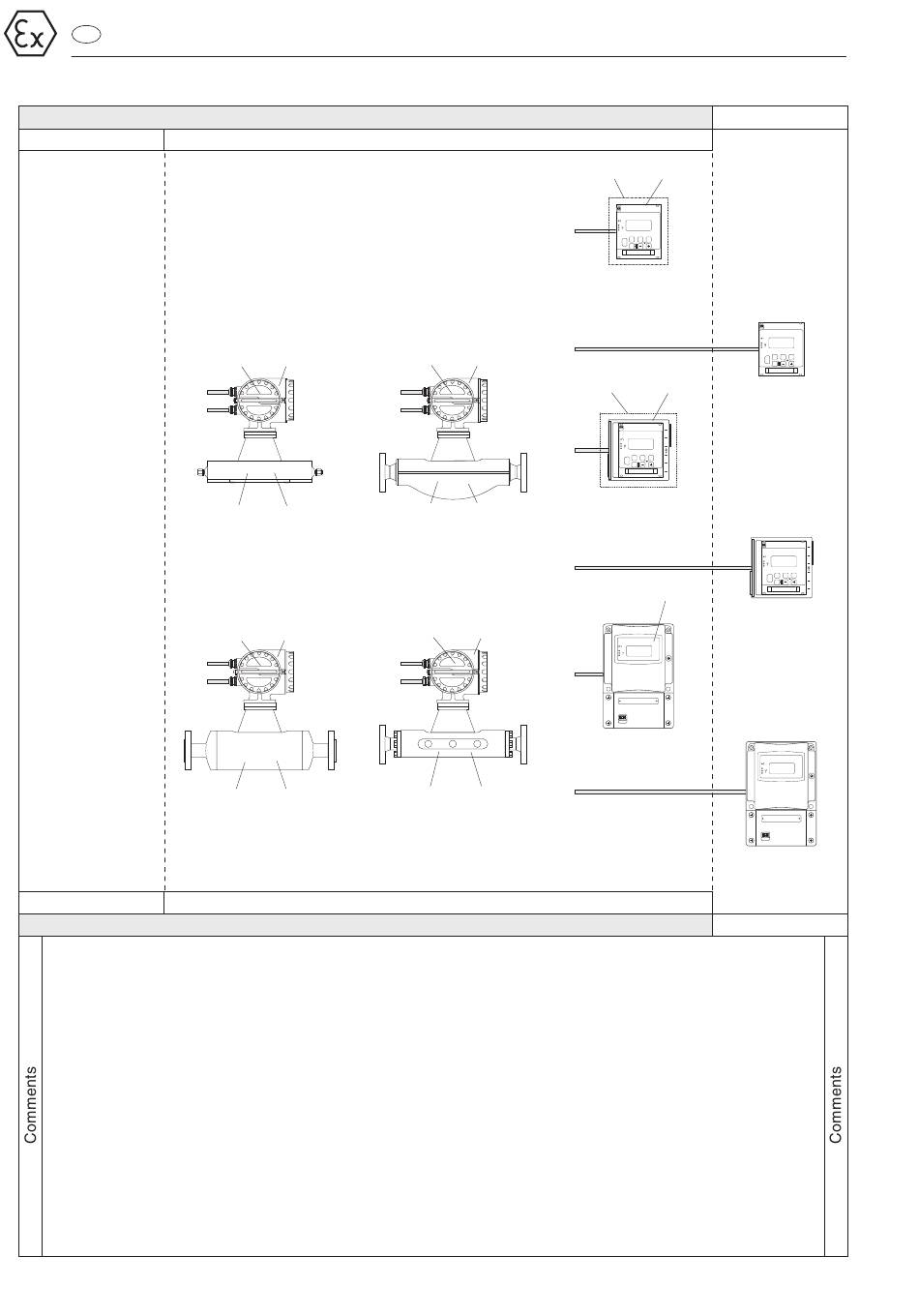

Endress+Hauser procom DZL 363 Ex-Dokumentation Zu Den Betriebsanleitungen Seite 14

en
II2G (ATEX)
Zone 1 (IEC)
➀
Electronics housing Promass 63 in:
EEx nRVW IIC (prEN)
Ex nACR IIC (IEC)
➁
PRO-LINE standard housing in IP 67
➂
Sensor in: EEx nRVW IIC (prEN)
Ex nACR IIC (IEC)
• Promass A
DN 1...4
• Promass F
DN 8...50
• Promass I
DN 8...40
• Promass M
DN 8...50
Sensor in: EEx nRVW IIB (prEN)
Ex nACR IIB (IEC)
• Promass F
DN 80...100
• Promass I
DN 50
• Promass M
DN 80
2
Hazardous area
II3G (ATEX)
PROMASS 63
➀ ➁
Nicht unter
Spannung öffnen.
Keep cover tight while
circuits are alive.
Ne pas ouvrir l´appareil
sous tension.
➂ ➃
Sensor A
PROMASS 63
➀ ➁
Nicht unter
Spannung öffnen.
Keep cover tight while
circuits are alive.
Ne pas ouvrir l´appareil
sous tension.
➂ ➃
Sensor I
Zone 2 (IEC)
Hazardous area
resp. DN 40 "FB"
DZL 363 version:
racksyst cassette
(IP 20)
PROMASS 63
➀ ➁
Nicht unter
Spannung öffnen.
Keep cover tight while
circuits are alive.
Ne pas ouvrir l´appareil
sous tension.
DZL 363 version:
➂ ➃
panel mounted
housing (IP 20 / front
Sensor F
door IP 54)
PROMASS 63
➀ ➁
Nicht unter
Spannung öffnen.
Keep cover tight while
circuits are alive.
Ne pas ouvrir l´appareil
sous tension.
DZL 363 version:
field housing
(IP 65)
➂ ➃
Sensor M
➃
For ambient and fluid temperature ranges, and temperature
class, see page 4
➄
For installation in a rack or a panel in Zone II3G or Zone 2,
enclosure protection according to EN 60529 is required:
– outdoor use ≥ IP 54
– indoor use ≥ IP 40
➅
Transmitter DZL 363 in:
EEx nVW IIC (prEN)
Ex nAC IIC (IEC)
Ambient temperature max. +60 °C
Procom DZL 363 with Promass 63
Safe area
➄ ➅
ENDRESS+HAUSER
PROCOM DZL 363
1
2
3
F1 F2 F3
E
>3s
ENDRESS+HAUSER
PROCOM DZL
1
2
3
➅
➄
DZL 363 version:
racksyst cassette
(IP 20)
E+H
ENDRESS+HAUSER
PROCOM DZL 363
1
2
3
F3
F1 F2
E
>3s
ENDRESS+HAUSER
PROCOM DZL
1
2
3
➅
DZL 363 version:
panel mounted
PROCOM DZL 363
housing (IP 20 / front
1
2
3
door IP 54)
PROCOM DZL
1
2
3
DZL 363 version:
field housing
(IP 65)
Safe area
Endress+Hauser
363
F1 F2 F3
E
>3s
E+H
363
F1 F2 F3
E
>3s
363
