0m s
PO WER ON CO NDITION
BMC_POW ERON_RST_L
PS[1,2]_PRESENT_L
MASTER_SHUTDOW N
HOTSW AP_GOOD
[3P3V, 5V]_ENABLE
3P3V_POW ER_GOOD
5V_POW ER_GOOD
[1P8V, DDR]_ENABLE
DDR_[A,B]_POW ER_GOOD
1P8V_POW ER_GOOD
P[0,1,2,3]_SHUTDOW N
PROC_POW ERGOOD
1P2V_ENABLE
1P2V_POW ERGOOD
ALL_POW ERGOOD

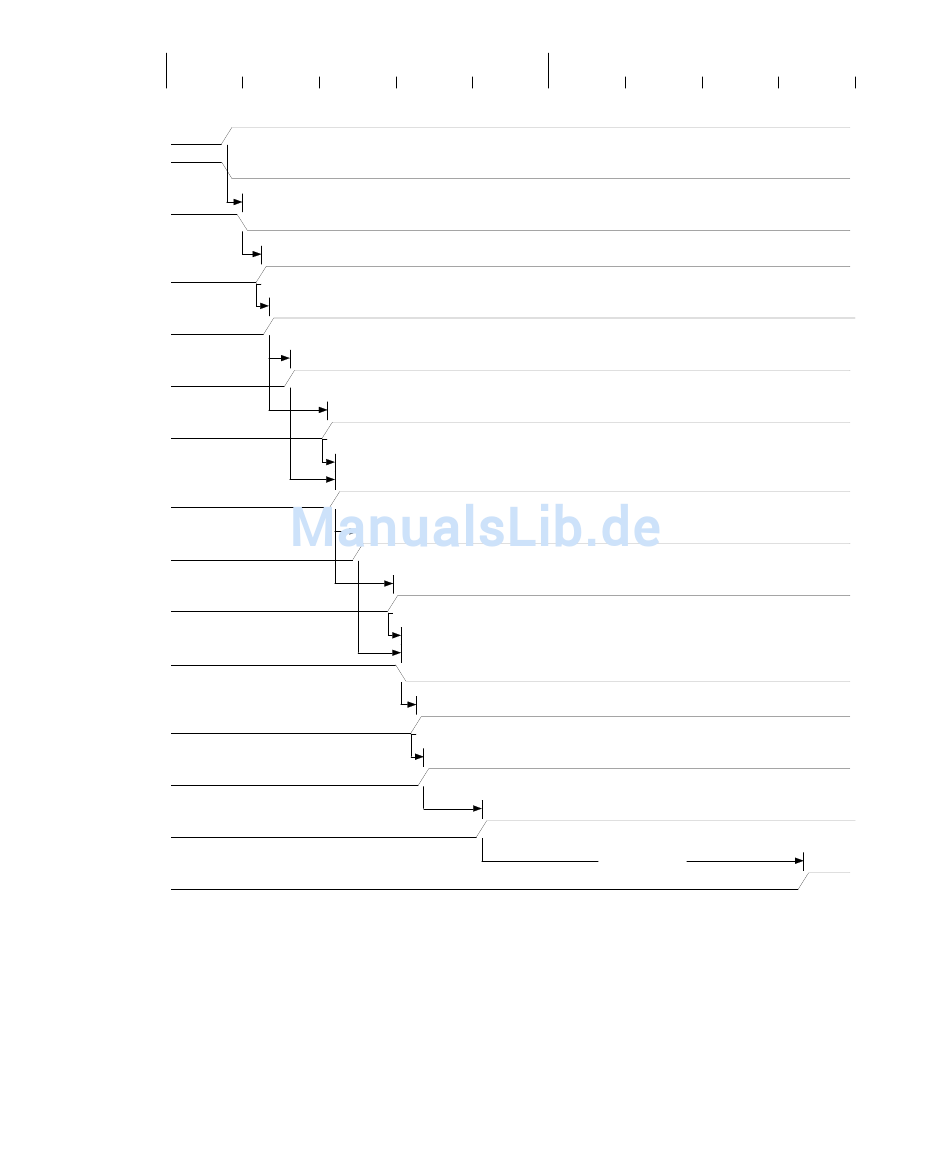

Einschaltsequenz
ABBILDUNG E-1
E-2 Sun Fire X4100 und Sun Fire X4200 Server Einrichtungs- und Wartungshandbuch • November 2005
t_MASTER_ON
t_HOTSW AP_GOOD
t_NEXT_RAIL
t_SIL30_DELAY
t_SIL15_DELAY
t_NEXT_RAIL
t_NEXT_RAIL
t_DDR_DELAY
t_SIL15_DELAY
t_NEXT_RAIL
t_NEXT_RAIL
t_3733_SS_DELAY
250ms
t_NEXT_RAIL
t_SIL06_DELAY
t_RESET_DELAY
