Mechanical installation
3.2 Housing G and H
The mechanical installation is dependent on the housing. The housing can be identified
through the 7th digit of the material number:
• xxF5xxG-xxxx => housing G
• xxF5xxH-xxxx => housing H
3.2.1 Demounting the device
1 Cut-outs for cover fixing
2 Screws M2.5 x 6
3 Cover

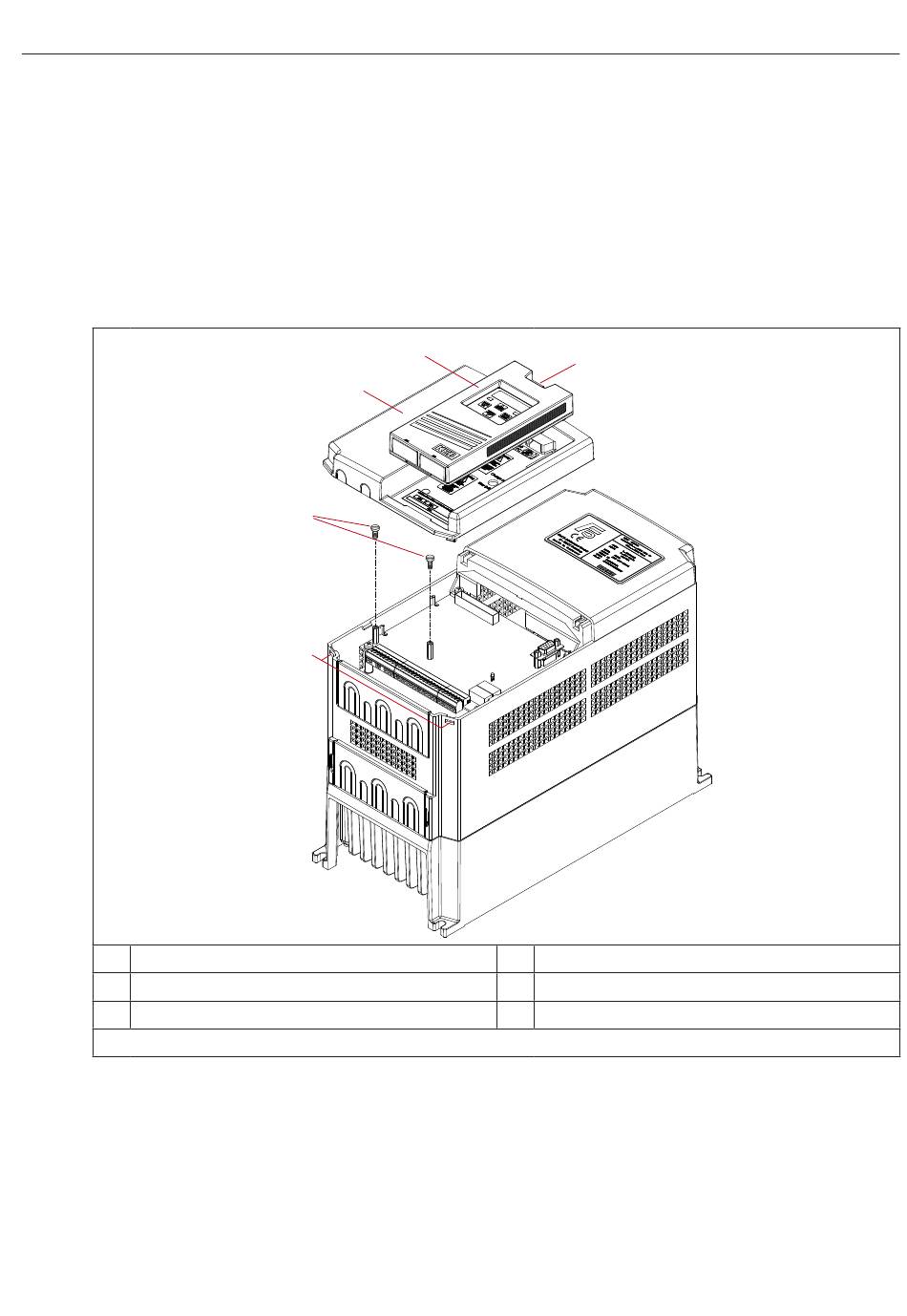

Figure 3:
Preparing for Installation
• Solve operator (4) by pressing on the latch (5) and pull upwards
• Press the cover (3) out of the cut-outs (1) and tilt upwards
• Remove cover (3) forward
• Unscrew screws (2) from the distance pins (included distance pins are not required for
devices with functional safety. These must be mounted first for other devices).
GB -12
3
2
1
Demounting the device housing G and H
4
5
4 Operator
5 Latch for operator
