Programmschalter (OMS)

Typen

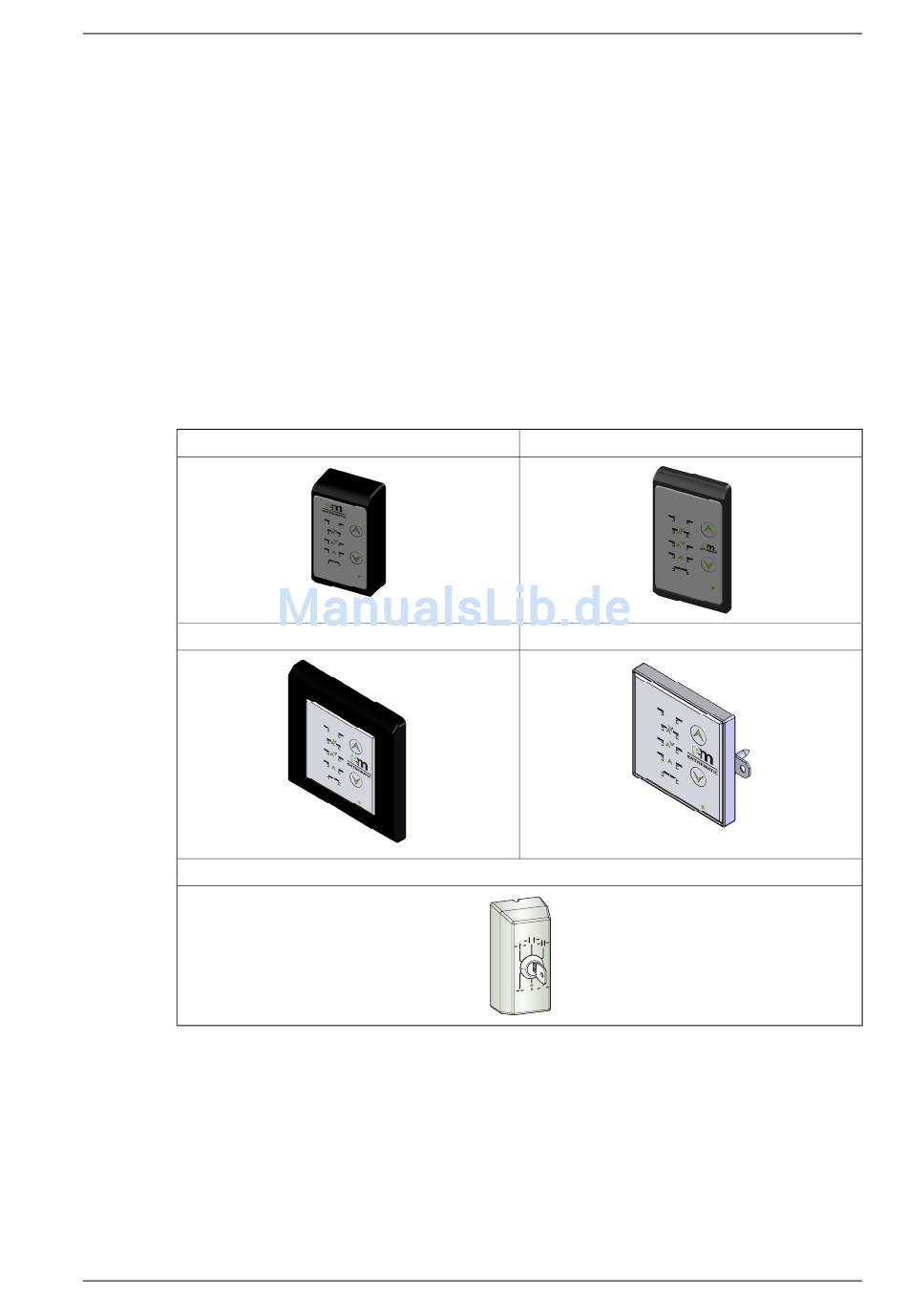

Für den Programmwahlschalter Basic gibt es eine Reihe von Alternativen.
• Eine flache Version, BxH 40x80 mm.
• Zwei quadratische Versionen, BxH 80x80 oder 55x55 mm.
• PS-6, ein 2-adriger analoger Programmwahlschalter ist mit der MCU verbunden.
Die Programmwahlschalter (OMS) können bündig in Profilen oder Verteilerdosen montiert werden.
Die Programmwahlschalter (OMS) können auch in Aufputzverteilerdosen montiert werden.
Hinweis: PS-6 nicht in Kombination mit Programmwahlschalter (OMS) verwenden.
Wenn PS-6 in Verbindung mit einer I/O-Einheit verwendet wird, muss Parameter 97 = 00 eingestellt
werden, um den I/O-Einheit-Programmschalter zu deaktivieren.
PS-6 kann nicht in einem verbundenen System verwendet werden.
Aufputzmontage 40x80 mm
Change CM-No.
New article 12-586
Bündig montiert 80x80 mm
SECTION A-A
1 pcs. PLASTIC BAG 150x200 701002
1 pcs. WIRING HARNESS MS BASIC RJ45 CABLE 1008972 *
1 pcs. Software MS BwL 1007926
1 pcs. PCB Assembly Mode Selector Basic with LED 1008140
4
1 pcs. Pin surface mounted MS 1008772
1 pcs. STICKER EM SL 40x80 5 POS SYMBOL 1010411 *
2 pcs. SCREW ISO 7049 C (RTS) ST2.9x16 FZB 4.8 724462 *
1 pcs. FRAME 40x80 SURFACE 1008154
Art.no.
Material
-
Proj. method Scale Drawn Date
1:1 SEJOB
2013-09-25
-
Description
MODE SELECTOR EM SL
40x80 SURF 5 SYMB
2
701002
1
1008972 *
1007926
1010410 *
1007894 *
724462 *
1008140
1008101
Art.no.
Material
-
Proj. method Scale Drawn Date
1:1 SEJOB 2013-09-25
Description
MODE SELECTOR EM SL
80x80 FLUSH 5 SYMB
No. Change
New article
0.4
Done Date
SEJOB 2013-09-25
No. Change
New article
1.0
B
CM-No. Done Date
12-586 SEJOB 2013-09-25
DETAIL B
SCALE 5 : 1
4
* Assembled on site
1 pcs. PLASTIC BAG 150x200
7 1 pcs. WIRING HARNESS MS BASIC RJ45 CABLE
Remark
Remark
6 1 pcs. Software MS BwL
5 1 pcs. PCB Assembly Mode Selector Basic with LED
Status 4 1 pcs. Pin flush mounted MS
Approved
3 1 pcs. STICKER EM SL 40x80 5 POS SYMBOL
Rev. Size Sheet
2 2 pcs. SCREW ISO 7049 C (RTS) ST2.9x16 FZB 4.8
1.0 A3 1 (1)
1 1 pcs. FRAME 40x80 Flush
Drawing No.
1010413
Pos. Qty. Unit Description
4
Surface treatment
Sturzmontage PS-6
General tolerance
ISO 2768
-
ASSA ABLOY Entrance Systems AB
* Assembled on site
1 pcs. PLASTIC BAG 150x200
7 1 pcs. WIRING HARNESS MS BASIC RJ45 CABLE
6 1 pcs. Software MS BwL
Remark
5 1 pcs. STICKER 80x80/55x55 5 POS SYMBOL
Remark
4 1 pcs. Bridge
3 2 pcs. SCREW ISO 7049 C (RTS) ST2.9x16 FZB 4.8
Status
Approved
2 1 pcs. PCB Assembly Mode Selector Basic with LED
Rev. Size Sheet
1 1 pcs. FRAME 55x55
1.0 A3 1 (1)
Pos. Qty. Unit Description
Drawing No.
1010414
Surface treatment
Proj. method
General tolerance
ISO 2768
-
Description
ASSA ABLOY Entrance Systems AB
Ausgabe vom 2016-03-14
CM-No.
12-586
Bündig montiert 40x80 mm
CM-No.
12-586
Bündig montiert 55x55 mm
701002
1008972 *
1007926
1008140
1008773
1010411 *
724462 *
1008102
Art.no.
Material
-
Proj. method Scale Drawn Date
1:1 SEJOB
Description
MODE SELECTOR EM SL
40x80 FLUSH 5 SYMB
701002
1008972 *
1007926
1010410 *
1007894 *
724462 *
1008140
1008100
Art.no.
Material
-
Scale Drawn Date
1:1 SEJOB 2013-09-25
MODE SELECTOR EM SL
55x55 FLUSH 5 SYMB
