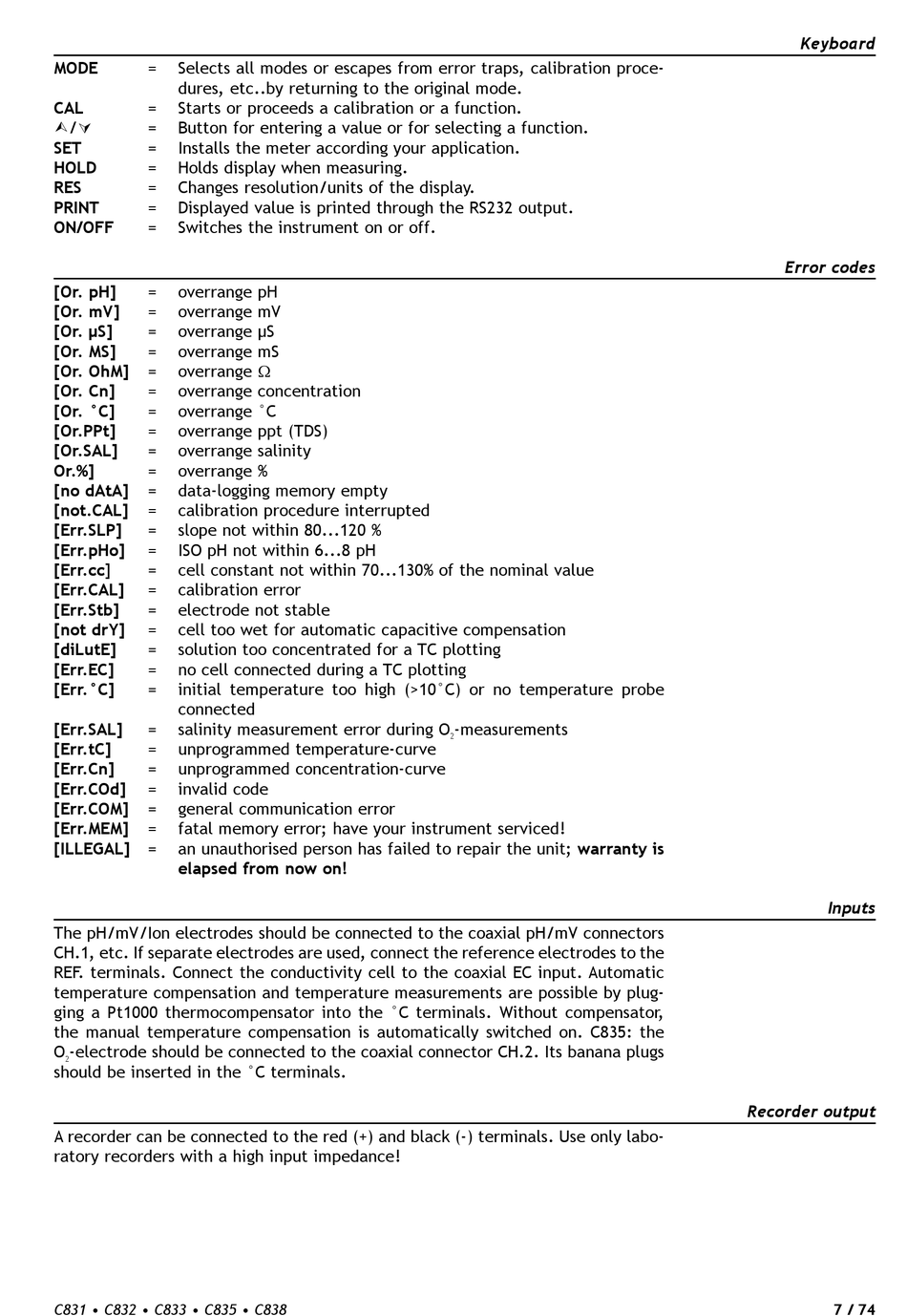

MODE = Selects all modes or escapes from error traps, calibration proce-
dures, etc..by returning to the original mode.
CAL
= Starts or proceeds a calibration or a function.
= Button for entering a value or for selecting a function.
Ù/Ú
SET
= Installs the meter according your application.
HOLD = Holds display when measuring.
RES = Changes resolution/units of the display.
PRINT
= Displayed value is printed through the RS232 output.
ON/OFF
= Switches the instrument on or off.
[Or. pH] = overrange pH
[Or. mV]
= overrange mV
[Or. µS]
= overrange µS
[Or. MS]
= overrange mS
overrange Ω
[Or. OhM] =
[Or. Cn] = overrange concentration
[Or. °C]
= overrange °C
[Or.PPt]
= overrange ppt (TDS)
[Or.SAL]
= overrange salinity
Or.%]
= overrange %
[no dAtA] = data-logging memory empty
[not.CAL] = calibration procedure interrupted
[Err.SLP]
= slope not within 80...120 %
[Err.pHo]
= ISO pH not within 6...8 pH
[Err.cc]
= cell constant not within 70...130% of the nominal value
[Err.CAL] = calibration error
[Err.Stb] = electrode not stable
[not drY]
= cell too wet for automatic capacitive compensation
[diLutE]
= solution too concentrated for a TC plotting
[Err.EC]
= no cell connected during a TC plotting
[Err.°C]
= initial temperature too high (>10°C) or no temperature probe
connected
[Err.SAL] = salinity measurement error during O
[Err.tC]
= unprogrammed temperature-curve
[Err.Cn]
= unprogrammed concentration-curve
[Err.COd]
= invalid code
[Err.COM] = general communication error
[Err.MEM] = fatal memory error; have your instrument serviced!
[ILLEGAL] an unauthorised person has failed to repair the unit; warranty is
=
elapsed from now on!
The pH/mV/Ion electrodes should be connected to the coaxial pH/mV connectors
CH.1, etc. If separate electrodes are used, connect the reference electrodes to the
REF. terminals. Connect the conductivity cell to the coaxial EC input. Automatic
temperature compensation and temperature measurements are possible by plug-
ging a Pt1000 thermocompensator into the °C terminals. Without compensator,
the manual temperature compensation is automatically switched on. C835: the
O -electrode should be connected to the coaxial connector CH.2. Its banana plugs
2
should be inserted in the °C terminals.
A recorder can be connected to the red (+) and black (-) terminals. Use only labo-
ratory recorders with a high input impedance!
C831 • C832 • C833 • C835 • C838
-measurements
2
Keyboard

Error codes

Inputs

Recorder output
